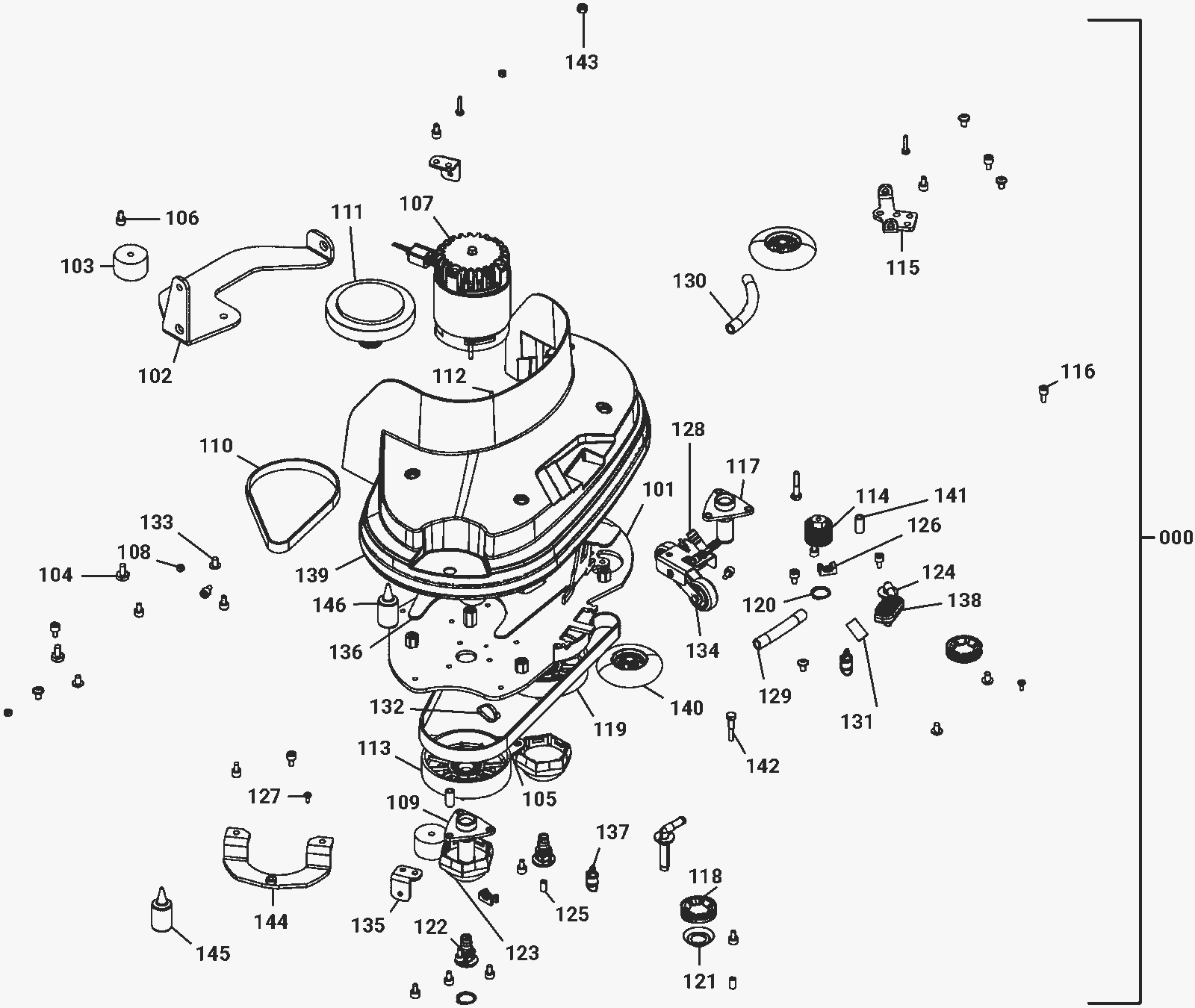

Brush Drive Assembly - Dual Disc 22 inch

#PartDescription ReqNotesAvailability
000 292-9452 Brush drive DD28 1 (includes 101-146)
101 292-9307 Brush base plate 1
102 292-9309 Holder plate 1
103 192-0492 Buffer 2
104 192-1455 Screw M10 x 16mm hex head 4
105 292-9311 Holder 1
106 192-0364 Screw M8 x 12mm socket head 21
107 292-9293 24V motor 1
108 999-1308 Nut M6-1 hex stainless steel 3
109 192-5815 Pulley 1
110 192-5626 Poly v-belt 1
111 292-0068 Pulley kit (includes bearings and clips) 1
112 192-1285 Screw M6 x 25mm hex head 3
113 192-5623 Poly v-belt 1
114 192-4543 Axle idler kit 1
115 192-2826 Clamp 1
116 192-0078 Screw M8 x 16mm socket head 1
117 192-0590 Pulley axle 2
118 192-6321 Sealing ring 2
119 192-5814 Pulley with bearings (bearings not available separate) 2
120 192-0503 Retaining ring 2
121 192-6320 Sealing ring 2
122 192-2728 Flanged bushing 2
123 192-3032 Drive hub 2
124 192-1677 Angled nipple 2
125 292-9313 Bushing 2
126 292-8039 Clamp 2
127 192-0101 Screw M5 x 12mm self tapping form 2
128 292-9314 T-nipple 1
129 192-0404 Wire reinforced hose (sold by the inch) 5 in
130 192-0404 Wire reinforced hose (sold by the inch) 5 in
131 192-0400 Wire reinforced hose (sold by the inch) 13 in
132 192-0102 7 3/4 inch cable tie 2
133 192-0348 Screw M8 x 12mm truss head 8
134 292-9317 Roller unit 1
135 292-9318 Holder 2
136 292-9319 Plate 1
137 192-9265 Tension spring 2
138 192-8983 Pedal pad 1
139 292-9320 55 cm/22 inch brush cover for dual disc 1
140 192-8744 Wheel 2
141 192-9803 Bushing 2
142 192-9212 Screw M8 x 40/22mm hex 2
143 192-0510 Nut M8 self locking 1
144 292-9322 Holder 1
145 192-1872 Grease 1
146 292-8528 .5ml capsule loctite medium strength thread lock (red) 1
N/S 192-0800 Nut M12 left hand thread hex 1 (included with 000)
N/S 292-9315 Cover 1 (included with 000)
