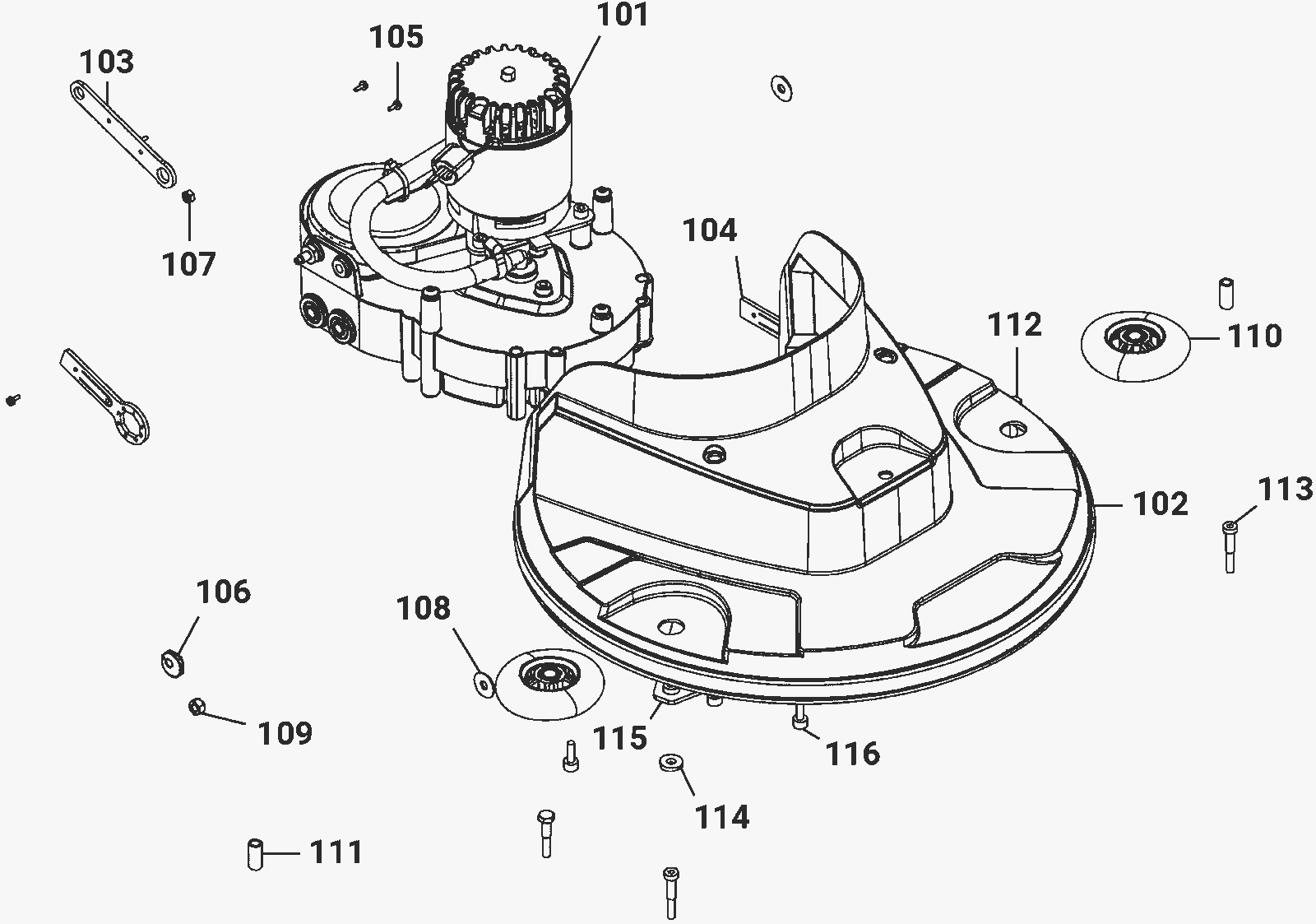

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
292-9290
|
Brush drive assembly |
1 |
|
|
102 |
292-9299
|
50 cm/20 inch brush cover for dual wheel |
1 |
|
|
103 |
292-9301
|
Shackle |
1 |
|
|
104 |
192-4831
|
Locking lever |
2 |
|
|
105 |
192-6347
|
Screw M4 x 10mm self tapping form |
4 |
|
|
106 |
192-3437
|
Spacer |
1 |
|
|
107 |
192-6345
|
Nut M6 self locking |
1 |
|
|
108 |
192-0604
|
Washer M8 |
2 |
|
|
109 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
110 |
192-8744
|
Wheel |
2 |
|
|
111 |
192-9803
|
Bushing |
2 |
|
|
112 |
192-9212
|
Screw M8 x 40/22mm hex |
2 |
|
|
113 |
192-0104
|
Screw M8 x 45mm socket head cap |
2 |
|
|
114 |
192-7425
|
Washer |
2 |
|
|
115 |
292-9303
|
Holder 50 |
1 |
|
|
116 |
192-0036
|
Screw M8 x 20mm socket head |
6 |
|
|
N/S |
192-3445
|
Eccentric shaft hex head (black) |
1 |
|
|
N/S |
192-2084
|
Bolt |
1 |
|
|
