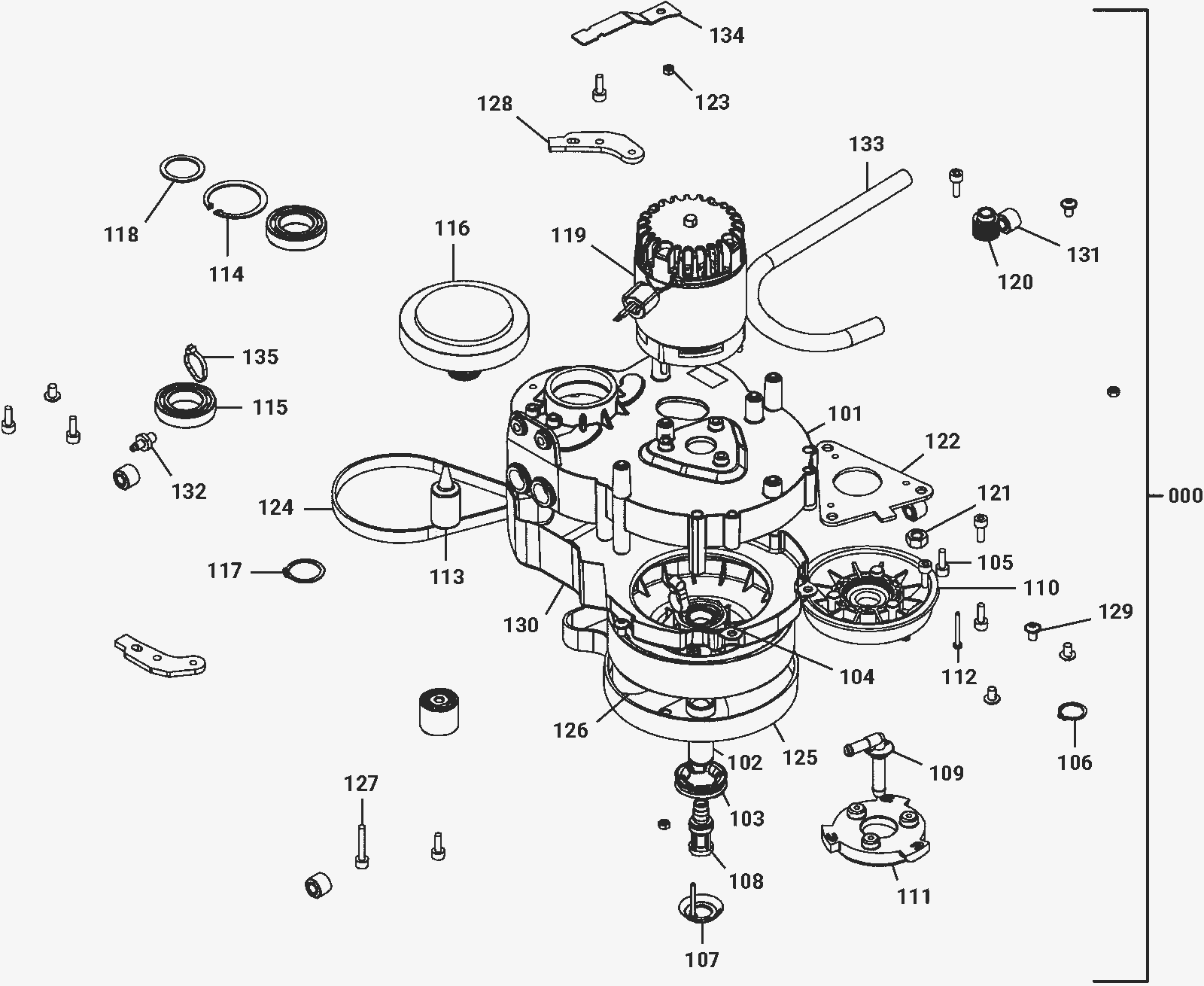

Brush Drive Assembly - Single Disc 17 inch

#PartDescription ReqNotesAvailability
000 292-9290 Brush drive assembly 1 (includes 101-134)
101 292-9292 Brush base plate 1
102 192-0590 Pulley axle 1
103 192-6321 Sealing ring 1
104 192-5836 Pulley with bearings 1
105 192-0036 Screw M8 x 20mm socket head 10
106 192-0503 Retaining ring 1
107 192-6320 Sealing ring 1
108 192-2727 Center plug 1
109 192-1677 Angled nipple 1
110 192-9537 Catch 1
111 192-3034 Drive hub 1
112 192-6292 Screw for plastic KA 50 x 40 3
113 192-1872 Grease 1
114 192-0483 Retaining ring 1
115 192-0481 Ball bearing 2
116 192-4607 Intermediate pulley 1
117 192-0485 Retaining ring 1
118 192-0482 Spacer 1
119 292-9293 24V motor 1
120 192-5815 Pulley 1
121 192-0800 Nut M12 left hand thread hex 1
122 292-9294 Plate 1
123 999-1308 Nut M6-1 hex stainless steel 3
124 192-5625 Poly v-belt 1
125 292-9295 Poly-v belt 1
126a 292-0997 Roll 40 complete 2 (includes 126b-126f)
126b 292-0763 Roller 1
126c 192-0488 Ball bearing 2
126d 292-0999 Flanged bushing 1
126e 192-0075 Retaining ring 1
126f 192-1872 Grease 1
126g 192-0607 Belt tensioner roller 2
127 192-0082 Screw M8 x 40mm socket head cap 2
128 292-0998 Lever 2
129 192-0348 Screw M8 x 12mm truss head 6
130 292-9300 Cover 1
131 192-1953 Bushing 2
132 192-2085 Bolt 1
133 192-0400 Wire reinforced hose (sold by the inch) 14 in
134 292-9304 Holder 1
135 192-0102 7 3/4 inch cable tie 1
N/S 292-9296 Flanged bushing 2
N/S 192-7425 Washer 2
N/S 192-1542 Screw M8 x 50mm socket head cap 2
N/S 292-9297 Lever 2
N/S 192-0334 Hose clamp 1
