| # | Part | Description |
Req | Notes | Availability |
|---|

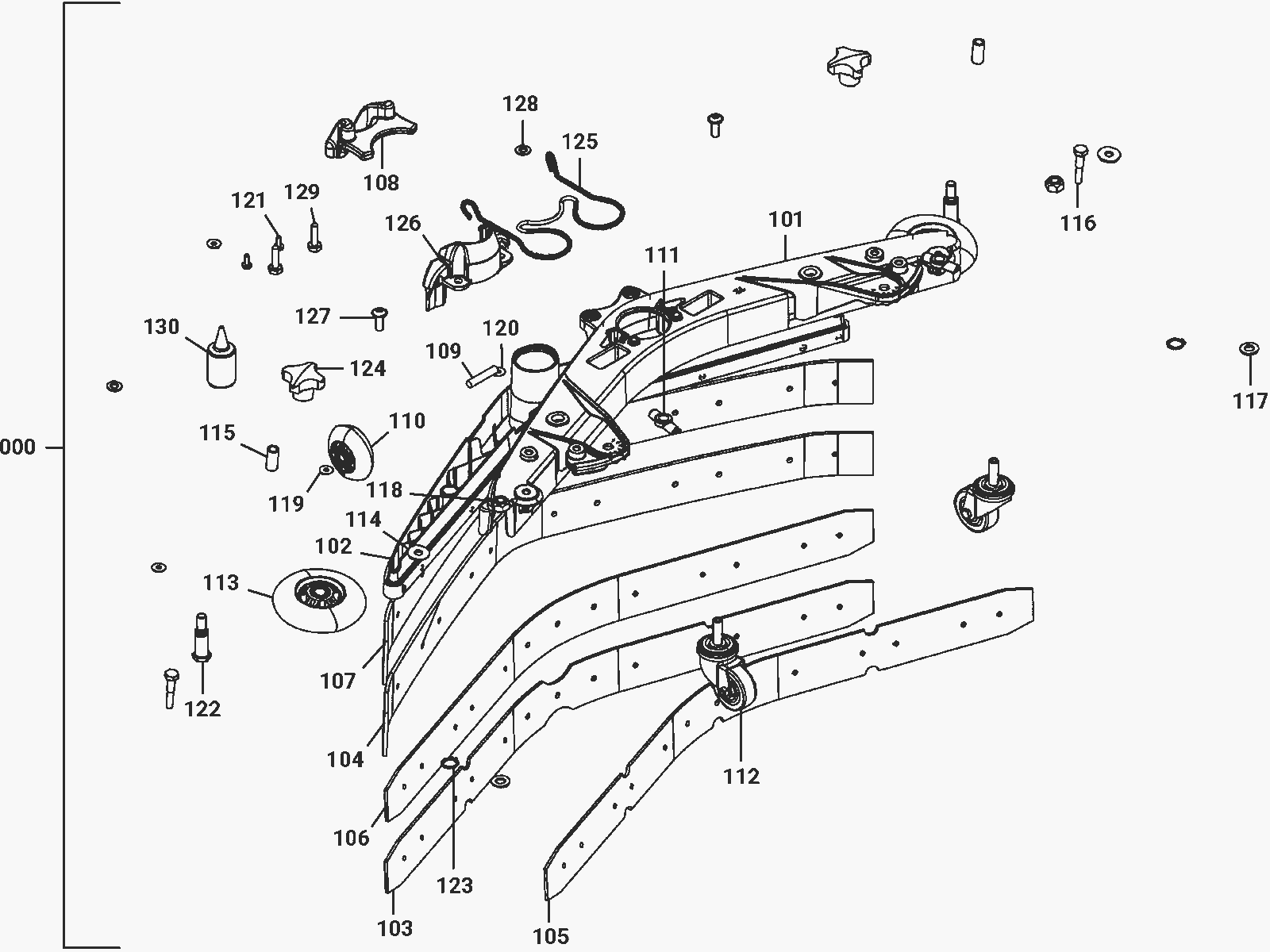

000a |
292-9414
|
28 inch squeegee assembly |
1 |
(includes 101a, 102a, 103a, 104a, 105a, 106a, 107a, 108-130) (28 inch) |
|
000b |
292-9286
|
Adapter |
1 |
(includes 101b, 102b, 103b, 104b, 105b, 106b, 107b, 108-130) (32 inch) |
|
101a |
292-9415
|
Squeegee body |
1 |
(28 inch) |
|
101b |
292-9272
|
Squeegee body |
1 |
(32 inch) |
|
102a |
292-9416
|
Clamping part |
1 |
(28 inch) |
|
102b |
292-9274
|
Clamping part |
1 |
(32 inch) |
|
103a |
292-9417
|
30 inch squeegee blade |
1 |
(standard) (28 inch) |
|
103b |
292-9276
|
Squeegee blade 34 inch front |
1 |
(standard) (32 inch) |
|
104a |
292-7055
|
32 inch squeegee blade |
1 |
(standard) (28 inch) |
|
104b |
292-9278
|
Squeegee blade 37 inch linatex rear |
1 |
(standard) (32 inch) |
|
105a |
292-9419
|
Squeegee blade 30 inch polyurethane front |
1 |
(optional) (28 inch) |
|
105b |
292-9280
|
Squeegee blade 34 inch polyurethane front |
1 |
(optional) (32 inch) |
|
106a |
292-9420
|
Squeegee blade 30 inch poly urethane rear |
1 |
(optional) (28 inch) |
|
106b |
292-9282
|
Squeegee blade 34 inch polyurethane rear |
1 |
(optional) (32 inch) |
|
107a |
292-9421
|
Squeegee blade 32 inch rear |
1 |
(optional) (28 inch) |
|
107b |
292-9284
|
Squeegee blade 37 inch rear |
1 |
(optional) (32 inch) |
|
108 |
292-9286
|
Adapter |
1 |
(standard) |
|
109 |
292-7061
|
Axle |
1 |
|
|
110 |
192-8746
|
Wheel 2.5 x 1 inch |
1 |
|
|
111 |
292-8550
|
Locking bolt |
2 |
|
|
112 |
292-8548
|
Caster wheel |
2 |
|
|
113 |
192-8744
|
Wheel |
2 |
|
|
114 |
192-0248
|
Washer M8 |
2 |
|
|
115 |
192-9803
|
Bushing |
2 |
|
|
116 |
192-9212
|
Screw M8 x 40/22mm hex |
2 |
|
|
117 |
192-0496
|
Washer M10 |
2 |
|
|
118 |
192-6339
|
Nut M10 self locking |
2 |
|
|
119 |
292-8611
|
Washer |
2 |
|
|
120 |
192-0971
|
Washer |
2 |
|
|
121 |
192-0101
|
Screw M5 x 12mm self tapping form |
2 |
|
|
122 |
292-0005
|
Screw M10 hex head |
2 |
|
|
123 |
192-0075
|
Retaining ring |
2 |
|
|
124 |
292-0004
|
Star knob |
2 |
|
|
125 |
292-9287
|
Wire spring |
1 |
|
|
126 |
292-9288
|
Holder |
1 |
|
|
127 |
192-1524
|
Screw M8 x 20mm flange socket head |
2 |
|
|
128 |
192-0105
|
Washer M8 |
2 |
|
|
129 |
192-0822
|
Screw M8 x 25 hex head |
2 |
|
|
130 |
192-1872
|
Grease |
1 |
|
|
