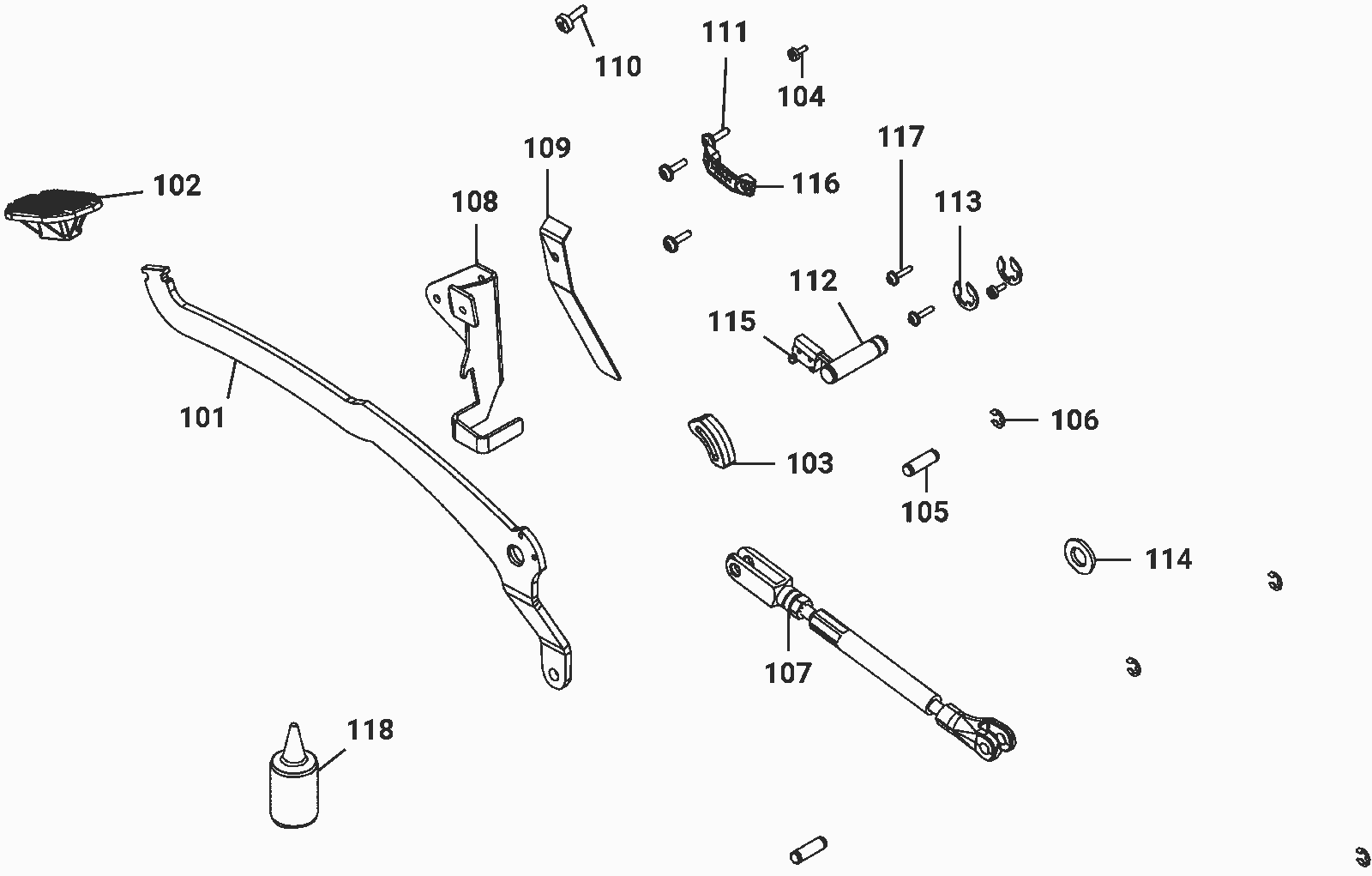

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
292-9412
|
Lever |
1 |
|
|
102 |
192-8903
|
Pedal pad |
1 |
|
|
103 |
292-9444
|
Switch cam |
1 |
|
|
104 |
192-6347
|
Screw M4 x 10mm self tapping form |
2 |
|
|
105 |
192-9183
|
Axle |
2 |
|
|
106 |
192-0840
|
Snap ring |
4 |
|
|
107 |
292-9413
|
Rod |
1 |
|
|
108 |
292-9245
|
Angle bracket |
1 |
|
|
109 |
292-9246
|
Flat spring |
1 |
|
|
110 |
292-5130
|
Screw M6-1 x 16mm torx |
1 |
|
|
111 |
192-1571
|
Screw M50 x 16mm |
3 |
|
|
112 |
292-9210
|
Bolt |
1 |
|
|
113 |
192-2775
|
Snap ring for shaft |
2 |
|
|
114 |
192-1050
|
Washer |
1 |
|
|
115 |
292-9247
|
Microswitch |
1 |
|
|
116 |
292-9146
|
Holder |
1 |
|
|
117 |
192-1595
|
Screw M40 x 16mm torx head |
2 |
|
|
118 |
292-8528
|
.5ml capsule loctite medium strength thread lock (red) |
1 |
|
|
