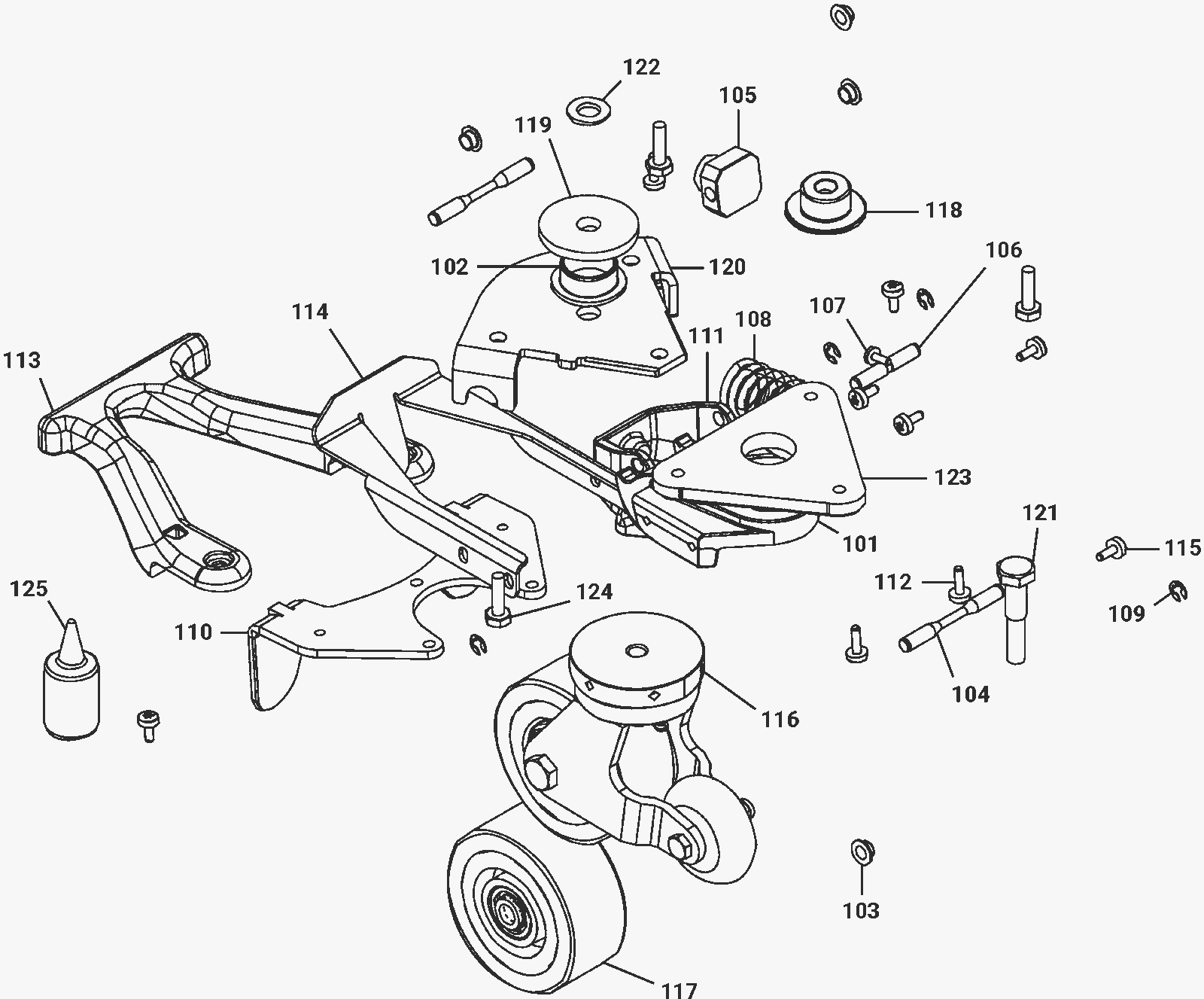

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
292-9229
|
Swinging arm |
1 |
|
|
102 |
192-9507
|
Slide bearing |
1 |
|
|
103 |
192-6448
|
Slide bearing |
4 |
|
|
104 |
292-9230
|
Bolt |
2 |
|
|
105 |
292-9231
|
Flange bolt |
1 |
|
|
106 |
292-9232
|
Bolt |
1 |
|
|
107 |
192-0101
|
Screw M5 x 12mm self tapping form |
1 |
|
|
108 |
192-9508
|
Pressure spring |
1 |
|
|
109 |
192-0840
|
Snap ring |
4 |
|
|
110 |
292-9233
|
Squeegee Holder |
1 |
|
|
111 |
292-9234
|
Articulation |
1 |
|
|
112 |
292-5130
|
Screw M6-1 x 16mm torx |
3 |
|
|
113 |
292-9235
|
Pedal |
1 |
|
|
114 |
292-9236
|
Plate |
1 |
|
|
115 |
192-9592
|
+ |
6 |
|
|
116 |
192-9000
|
Caster wheel assembly (rust) |
1 |
|
|
117 |
292-9238
|
Wheel |
1 |
(optional) |
|
118 |
192-9530
|
Bushing |
1 |
|
|
119 |
292-9239
|
Washer |
1 |
|
|
120 |
292-9411
|
Plate |
1 |
|
|
121 |
192-4218
|
Screw M12 x 30mm hex head |
1 |
|
|
122 |
192-1050
|
Washer |
1 |
|
|
123 |
292-9241
|
Plate |
1 |
|
|
124 |
192-0822
|
Screw M8 x 25 hex head |
3 |
|
|
125 |
292-8528
|
.5ml capsule loctite medium strength thread lock (red) |
1 |
|
|
N/S |
292-0994
|
Pedal |
1 |
|
|
N/S |
292-0995
|
Catcher |
1 |
|
|
N/S |
292-0996
|
Ball 15 |
1 |
|
|
