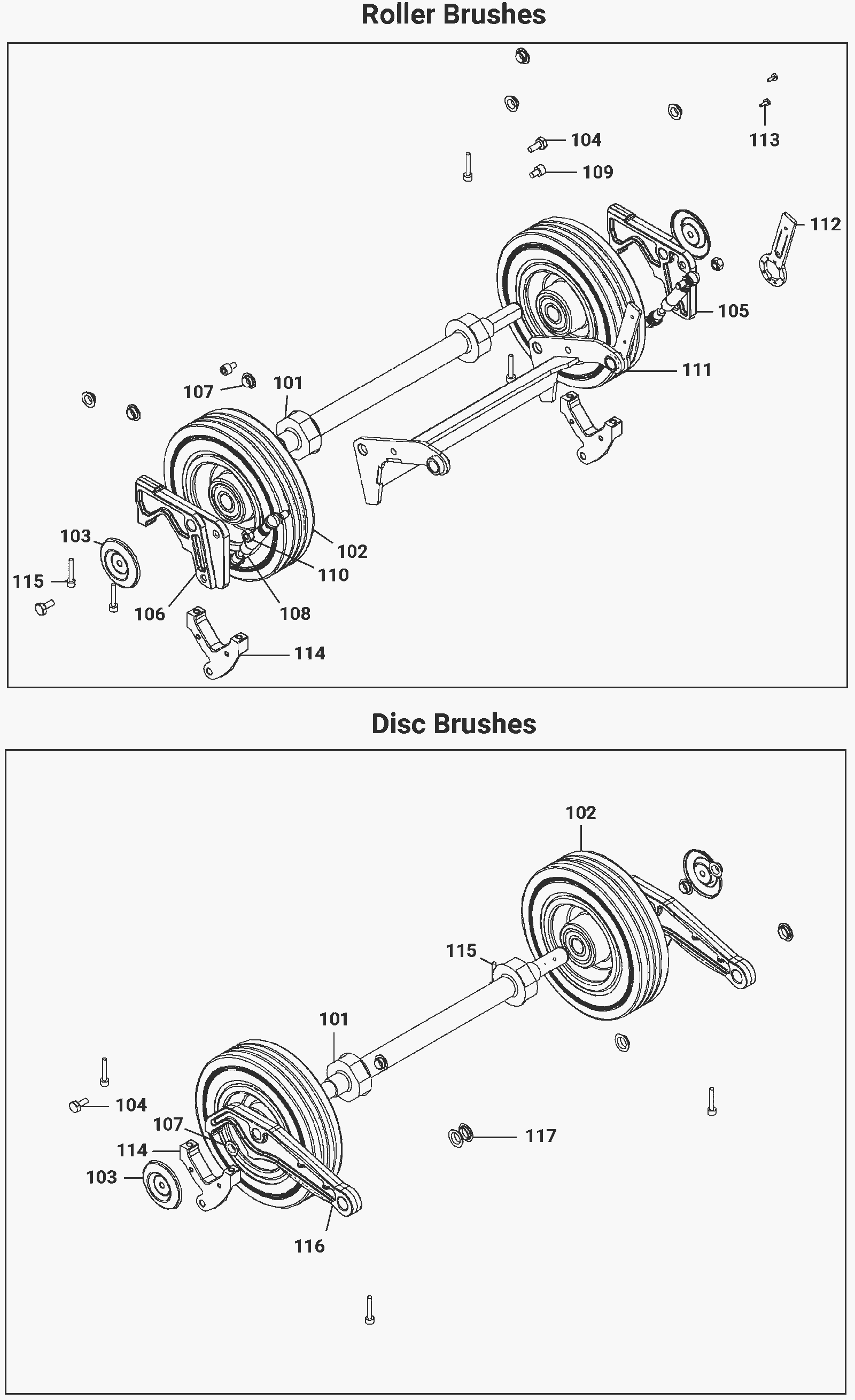

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
292-9228
|
Wheel axle |
1 |
|
|
102 |
192-2672
|
Wheel |
2 |
|
|
103 |
192-3077
|
Disk |
2 |
|
|
104 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
2 |
|
|
105 |
292-9221
|
Left hand cradle |
1 |
(roller brushes) |
|
106 |
292-9220
|
Right hand cradle |
1 |
(roller brushes) |
|
107 |
192-9790
|
Slide bearing |
6 |
|
|
108 |
292-9226
|
Gas spring strut |
2 |
(roller brushes) |
|
109 |
999-9134
|
Screw M8-1.25 x 10mm socket head stainless steel |
2 |
(roller brushes) |
|
110 |
192-0510
|
Nut M8 self locking |
2 |
(roller brushes) |
|
111 |
292-9227
|
Cradle |
1 |
(roller brushes) |
|
112 |
192-4831
|
Locking lever |
1 |
(roller brushes) |
|
113 |
192-6347
|
Screw M4 x 10mm self tapping form |
2 |
(roller brushes) |
|
114 |
292-9223
|
Holder |
2 |
|
|
115 |
999-6766
|
Screw M6-1.0 x 30mm socket head stainless steel |
4 |
|
|
116 |
292-9219
|
Cradle |
2 |
(disc brushes) |
|
117 |
292-9222
|
Slide bearing |
4 |
(disc brushes) |
|
