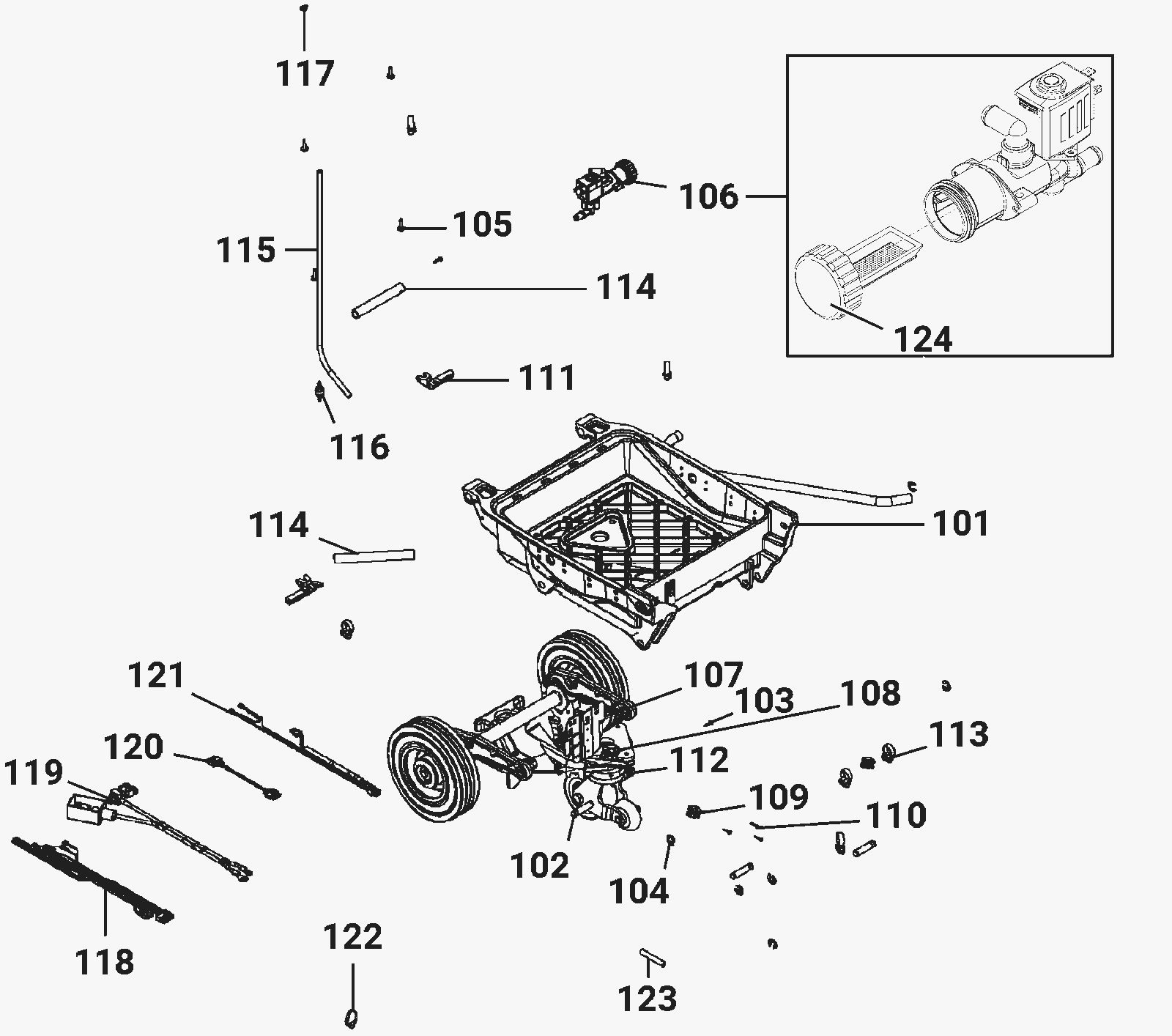

Lower Assembly

#PartDescription ReqNotesAvailability
101 292-9406 Chassis 1
102 292-9210 Bolt 3
103 192-1595 Screw M40 x 16mm torx head 2
104 192-2775 Snap ring for shaft 6
105 192-1561 Screw 60 x 20 torx head 4
106 192-9276 Solenoid and filter assembly 1 (includes 124)
107 292-9211 Plate 1
108 292-5568 Connection block 1
109 192-2895 2 way connection block 2
110 192-9692 Screw M3 x 16mm 3
111 292-9213 Bracket 2
112 192-9542 T-nipple 1
113 192-0334 Hose clamp 6
114a 192-9207 Hose with protection (sold by the inch) 8 in
114b 192-9207 Hose with protection (sold by the inch) 24 in
114c 192-9207 Hose with protection (sold by the inch) 6 in
115 192-0639 Solution hose (sold by the inch) 39 in
116 192-1601 Check valve 1
117 192-0973 3 1/4 inch cable tie 1
118 292-9407 Wire harness 1
119 292-9215 Wire harness 1
120 292-9409 Intellidose wire harness 1
121 292-9410 Wire harness 1
122 192-0102 7 3/4 inch cable tie 27
123 192-4344 Hose (sold by the inch) 1
124 292-0082 Filter kit 1
