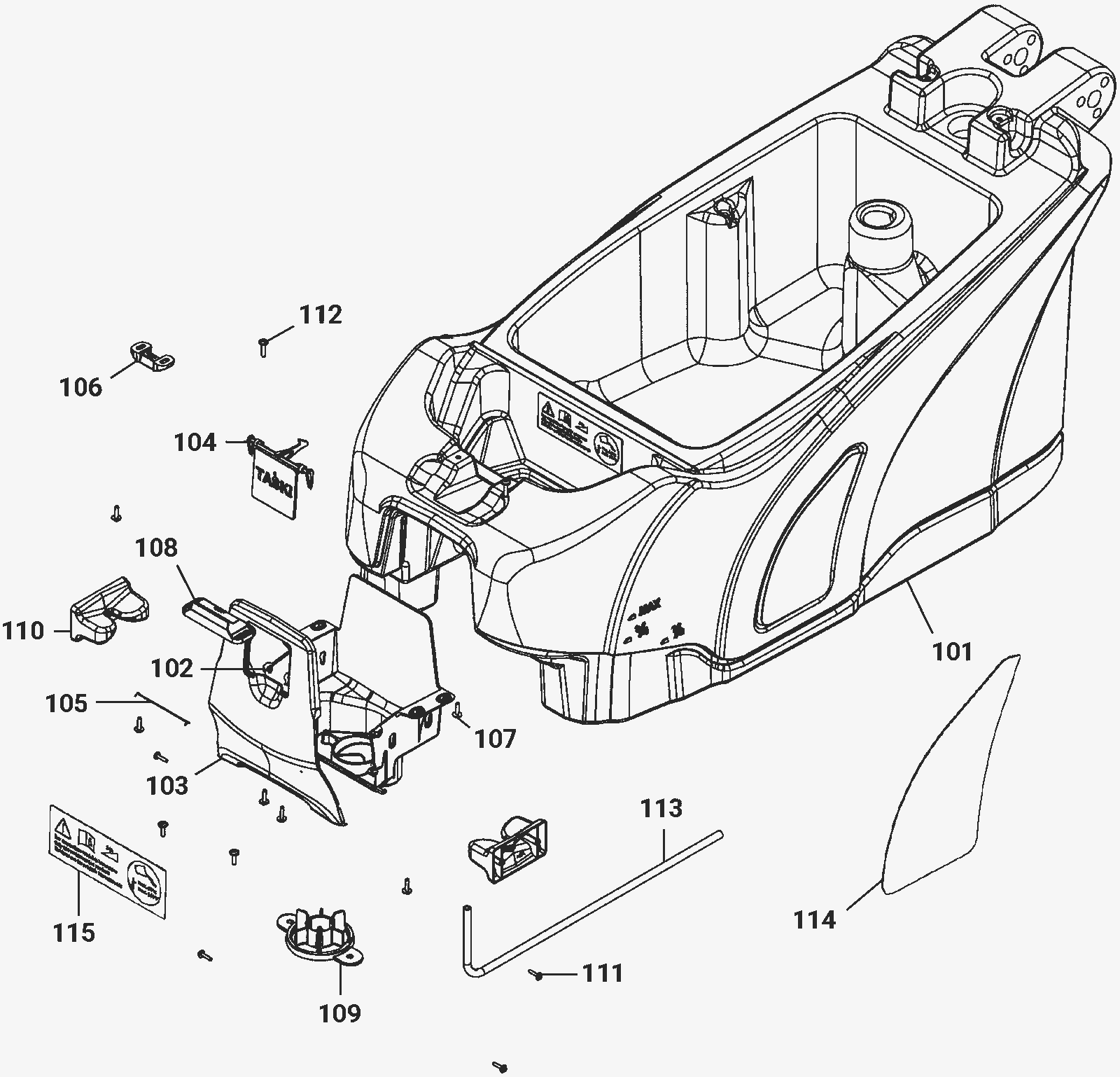

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
292-9445
|
Tank |
1 |
(includes 114-115) |
|
102 |
392-0101
|
Support |
2 |
|
|
103 |
292-9202
|
Pouchdoor |
1 |
|
|
104 |
292-9203
|
Handle |
1 |
|
|
105 |
292-9204
|
Torsion spring |
1 |
|
|
106 |
292-9206
|
Holder |
1 |
|
|
107 |
192-1571
|
Screw M50 x 16mm |
8 |
|
|
108 |
292-9207
|
Hook |
1 |
|
|
109 |
292-9404
|
Pouch receptacle |
1 |
(intellidose+) |
|
110 |
292-9405
|
Pouch holder |
2 |
(intellidose+) |
|
111 |
192-1595
|
Screw M40 x 16mm torx head |
4 |
(intellidose+) |
|
112 |
192-9147
|
Screw 50 x 20 |
2 |
|
|
113 |
192-4344
|
Hose (sold by the inch) |
77 in |
|
|
114 |
292-0993
|
Decorative decal |
1 |
|
|
115 |
292-5099
|
Recommended parts decal |
1 |
|
|
N/S |
192-0101
|
Screw M5 x 12mm self tapping form |
6 |
|
|
N/S |
392-0101
|
Support |
2 |
|
|
N/S |
192-0289
|
Screw M6 x 10mm socket head |
2 |
|
|
