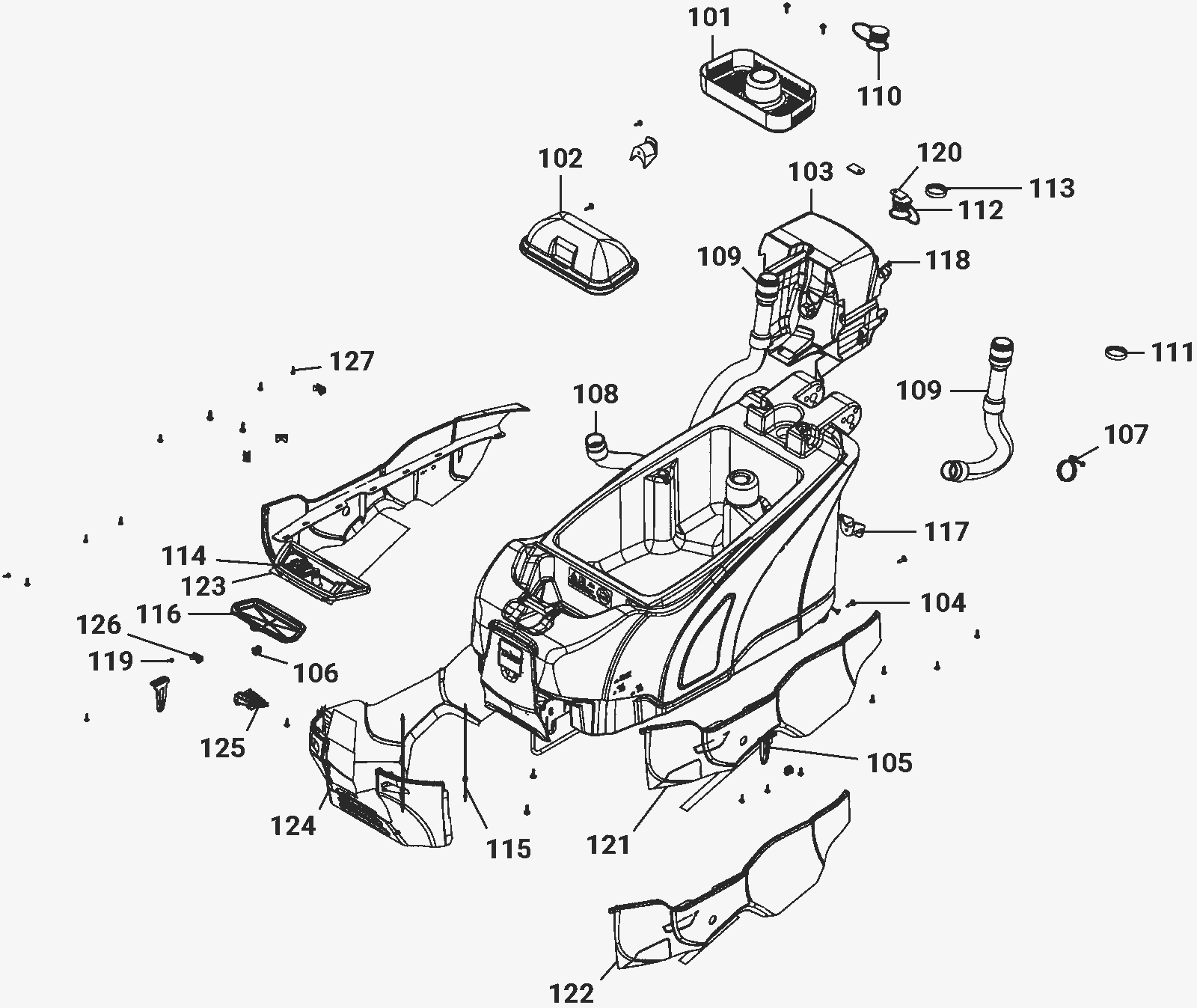

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
292-9471
|
Solids filter |
1 |
|
|
102 |
292-9184
|
Solids filter |
1 |
|
|
103 |
292-9460
|
Rear panel |
1 |
|
|
104 |
192-1561
|
Screw 60 x 20 torx head |
9 |
|
|
105 |
192-9541
|
Bracket |
2 |
|
|
106 |
192-2591
|
Nut M8 caged |
2 |
|
|
107 |
192-0130
|
Hose clamp |
3 |
|
|
108 |
292-9186
|
Suction hose |
1 |
|
|
109 |
292-7057
|
Drain hose |
3 |
|
|
110 |
292-0991
|
Cap (red) |
1 |
|
|
111 |
292-0271
|
Rubber ring (red) |
1 |
|
|
112 |
292-0992
|
Blue cap |
1 |
|
|
113 |
292-5284
|
Rubber ring (blue) |
1 |
|
|
114 |
292-9472
|
Dosing cup |
1 |
|
|
115 |
292-0096
|
Cord |
2 |
|
|
116 |
292-9190
|
Filter |
1 |
|
|
117 |
192-2550
|
Holder |
2 |
|
|
118 |
192-1571
|
Screw M50 x 16mm |
14 |
|
|
119 |
192-1595
|
Screw M40 x 16mm torx head |
2 |
|
|
120 |
192-9696
|
Plate |
2 |
|
|
121 |
292-9402
|
Cover |
1 |
(disc brushes) |
|
122 |
292-9401
|
Cover |
1 |
(roller brushes) |
|
123 |
292-9403
|
Cover |
1 |
|
|
124 |
292-9196
|
Cover |
1 |
|
|
125a |
292-9197
|
Left hand LED cover |
1 |
|
|
125b |
292-9198
|
Right hand LED cover |
1 |
|
|
126 |
292-8039
|
Clamp |
4 |
|
|
127 |
192-0706
|
Screw M50 x 16mm for plastic |
4 |
|
|
