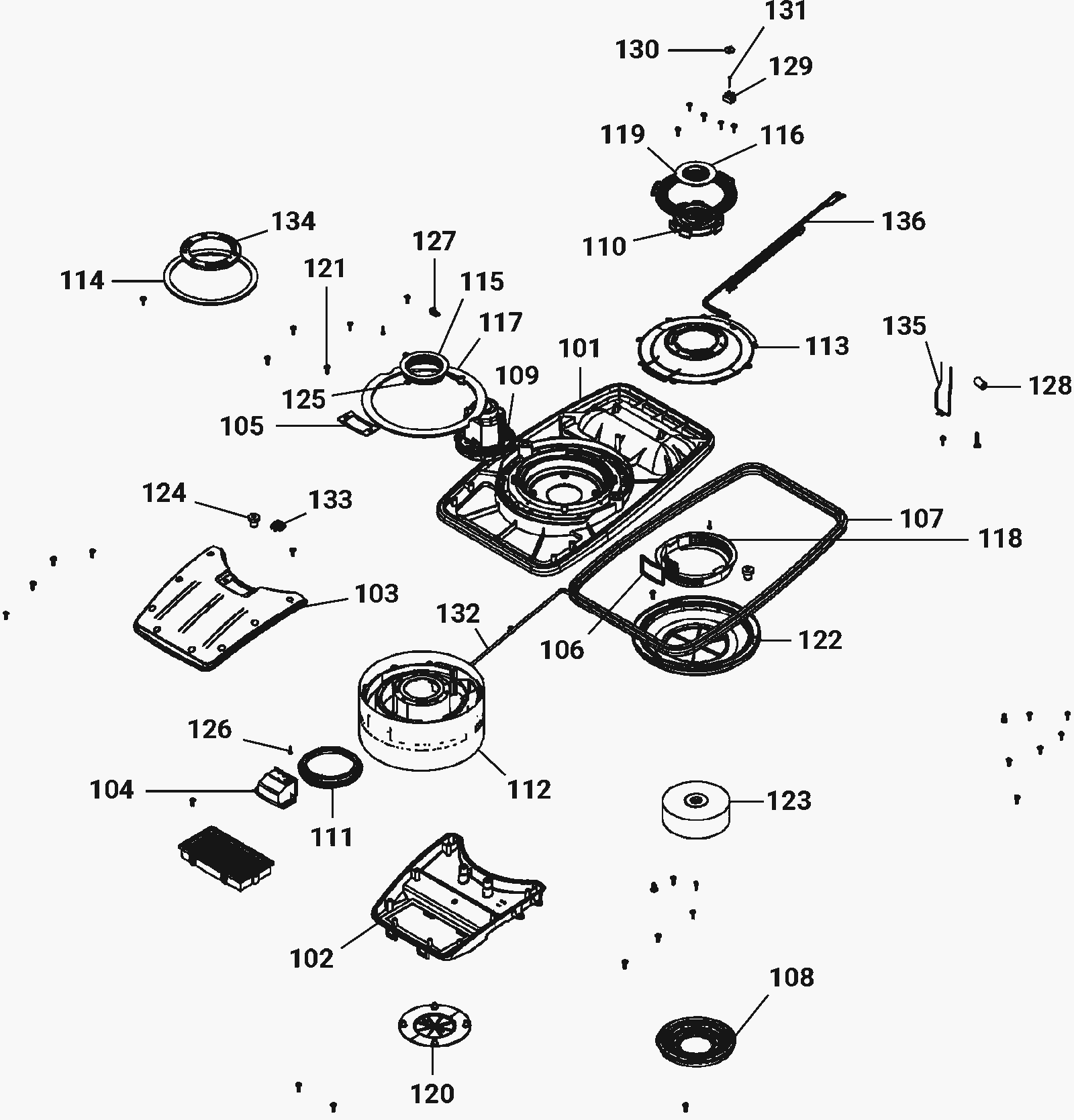

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
292-9468
|
Suction plate |
1 |
|
|
102 |
292-9466
|
Noise absorbing |
1 |
|
|
103 |
292-9465
|
Cover |
1 |
|
|
104 |
292-9396
|
Connection |
1 |
|
|
105 |
292-9160
|
Gasket |
1 |
|
|
106 |
292-9159
|
Gasket |
1 |
|
|
107 |
192-6334
|
Sealing profile (sold by the inch) |
69 in |
|
|
108 |
292-9467
|
Protecting ring |
1 |
|
|
109 |
292-9162
|
24V vacuum motor |
1 |
|
|
110 |
292-9163
|
Support |
1 |
|
|
111 |
292-9164
|
Sealing ring |
1 |
|
|
112 |
292-9165
|
Housing |
1 |
|
|
113 |
292-9167
|
Cover |
1 |
|
|
114 |
292-9168
|
Sealing ring |
1 |
|
|
115 |
292-9169
|
Sealing ring |
1 |
|
|
116 |
292-9170
|
Sealing ring |
1 |
|
|
117 |
192-1569
|
Sealing ring |
1 |
|
|
118 |
292-9171
|
Noise absorber |
1 |
|
|
119 |
292-9172
|
Noise absorber |
1 |
|
|
120 |
292-0989
|
Disc |
1 |
|
|
121 |
192-1571
|
Screw M50 x 16mm |
37 |
|
|
122 |
292-9174
|
Filter |
1 |
|
|
123 |
192-1490
|
Float |
1 |
|
|
124 |
192-1575
|
Buffer |
2 |
|
|
125 |
192-1557
|
Screw 60 x 35 torx head |
2 |
|
|
126 |
192-0958
|
Screw 50 x 16 for plastic |
3 |
|
|
127 |
192-2501
|
P clamp |
1 |
|
|
128 |
192-0732
|
Ferrite bushing |
1 |
|
|
129 |
192-2895
|
2 way connection block |
1 |
|
|
130 |
192-0705
|
Washer |
1 |
|
|
131 |
292-9177
|
Screw |
1 |
|
|
132 |
292-9175
|
Bracket |
1 |
|
|
133 |
292-9180
|
Holder |
1 |
|
|
134 |
292-9166
|
Gasket |
1 |
|
|
135 |
292-9178
|
Vac-mot wire harness |
1 |
|
|
136 |
292-9179
|
Wire harness |
1 |
|
|
N/S |
192-8753
|
Flange bolt |
3 |
|
|
N/S |
192-6310
|
Seal strip (sold by the inch) |
58 in |
|
|
N/S |
192-0102
|
7 3/4 inch cable tie |
1 |
|
|
N/S |
292-9176
|
Plate |
1 |
|
|
N/S |
292-9199
|
Hepa H13 |
1 |
(optional) |
|
