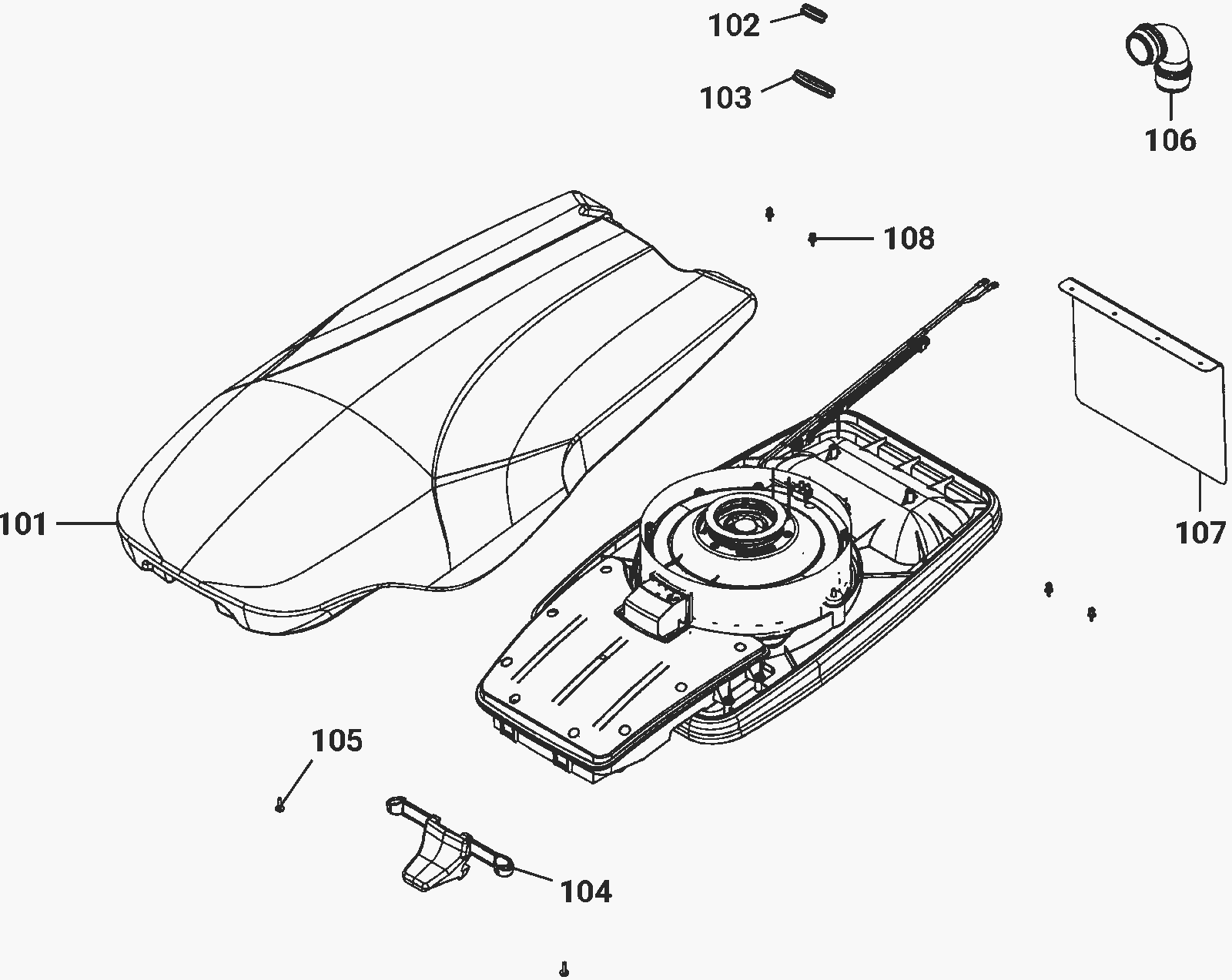

Tank Cover Assembly

#PartDescription ReqNotesAvailability
101 292-9464 Tank cover 1
102 292-5561 Membrane 1
103 292-9151 Membrane 1
104 292-9473 Handle 1
105 192-1571 Screw M50 x 16mm 2
106 292-9153 Hose 1
107 292-9154 Splash guard 1
108 192-1559 Retaining rivet 4
