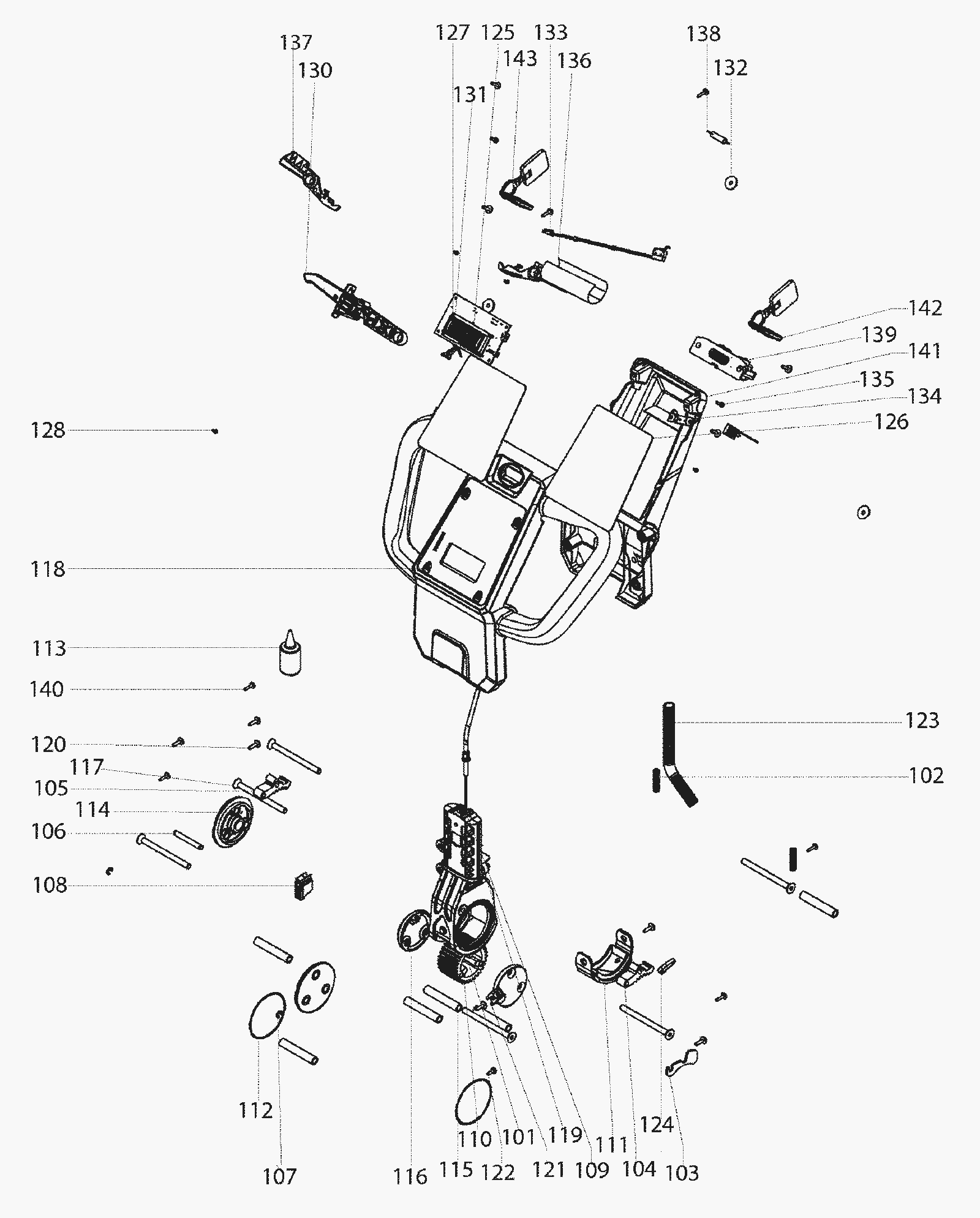

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
292-9454
|
Articulation |
1 |
|
|
102 |
192-9955
|
Pressure spring |
2 |
|
|
103 |
192-9957
|
Plate |
1 |
|
|
104 |
192-9958
|
Toothed rocker |
1 |
|
|
105 |
192-9956
|
Toothed rocker |
1 |
|
|
106 |
192-9959
|
Axle |
1 |
|
|
107 |
192-0902
|
Snap ring |
2 |
|
|
108 |
292-9456
|
Support |
1 |
|
|
109 |
292-9459
|
Bowden cable |
1 |
|
|
110 |
192-9965
|
Toothed wheel |
1 |
|
|
111 |
192-9966
|
Cover |
1 |
|
|
112 |
192-8912
|
O-ring |
2 |
|
|
113 |
192-1872
|
Grease |
1 |
|
|
114 |
192-8810
|
Retaining plate |
2 |
|
|
115 |
292-9455
|
Brush |
6 |
|
|
116 |
292-9462
|
Disc |
2 |
|
|
117 |
292-9476
|
Screw M8 x 100/26 counter head cap |
6 |
|
|
118 |
292-9481
|
Handle complete |
1 |
|
|
119 |
292-9457
|
Bracket |
1 |
|
|
120 |
192-1571
|
Screw M50 x 16mm |
9 |
|
|
121 |
292-8039
|
Clamp |
1 |
|
|
122 |
192-0320
|
Screw 50 x 12 for plastic |
1 |
|
|
123 |
292-9458
|
Wire tube |
1 |
|
|
124 |
192-0102
|
7 3/4 inch cable tie |
1 |
|
|
125 |
292-9453
|
Kepad |
1 |
(basic) |
|
126 |
292-0988
|
Keypad |
1 |
(standard) |
|
127 |
292-9482
|
Electronics complete |
1 |
|
|
128 |
192-6283
|
Screw for plastic KA 30 x 8 |
4 |
|
|
130 |
292-9461
|
Lever |
1 |
|
|
131 |
192-8791
|
Locking lever |
1 |
|
|
132 |
192-0705
|
Washer |
3 |
|
|
133 |
292-9247
|
Microswitch |
1 |
|
|
134 |
292-9146
|
Holder |
1 |
|
|
135 |
192-0547
|
Screw KA 40 x 14 |
2 |
|
|
136 |
292-9480
|
Lever |
1 |
|
|
137 |
292-9448
|
Lever r |
1 |
|
|
138 |
292-9136
|
Tension spring |
1 |
|
|
139 |
292-9449
|
Switch |
1 |
|
|
140 |
192-1595
|
Screw M40 x 16mm torx head |
8 |
|
|
141 |
292-9479
|
Cover |
1 |
|
|
142a |
N/A
|
Not available |
1 |
(includes 142b) (operator) (use 292-9141) |
|
142b |
192-4662
|
Key ring |
1 |
|
|
143a |
292-9141
|
Poweruser key |
1 |
(includes 143b) (poweruser) |
|
143b |
192-4662
|
Key ring |
1 |
|
|
