| # | Part | Description | Price | Req | Notes | Availability |
|---|

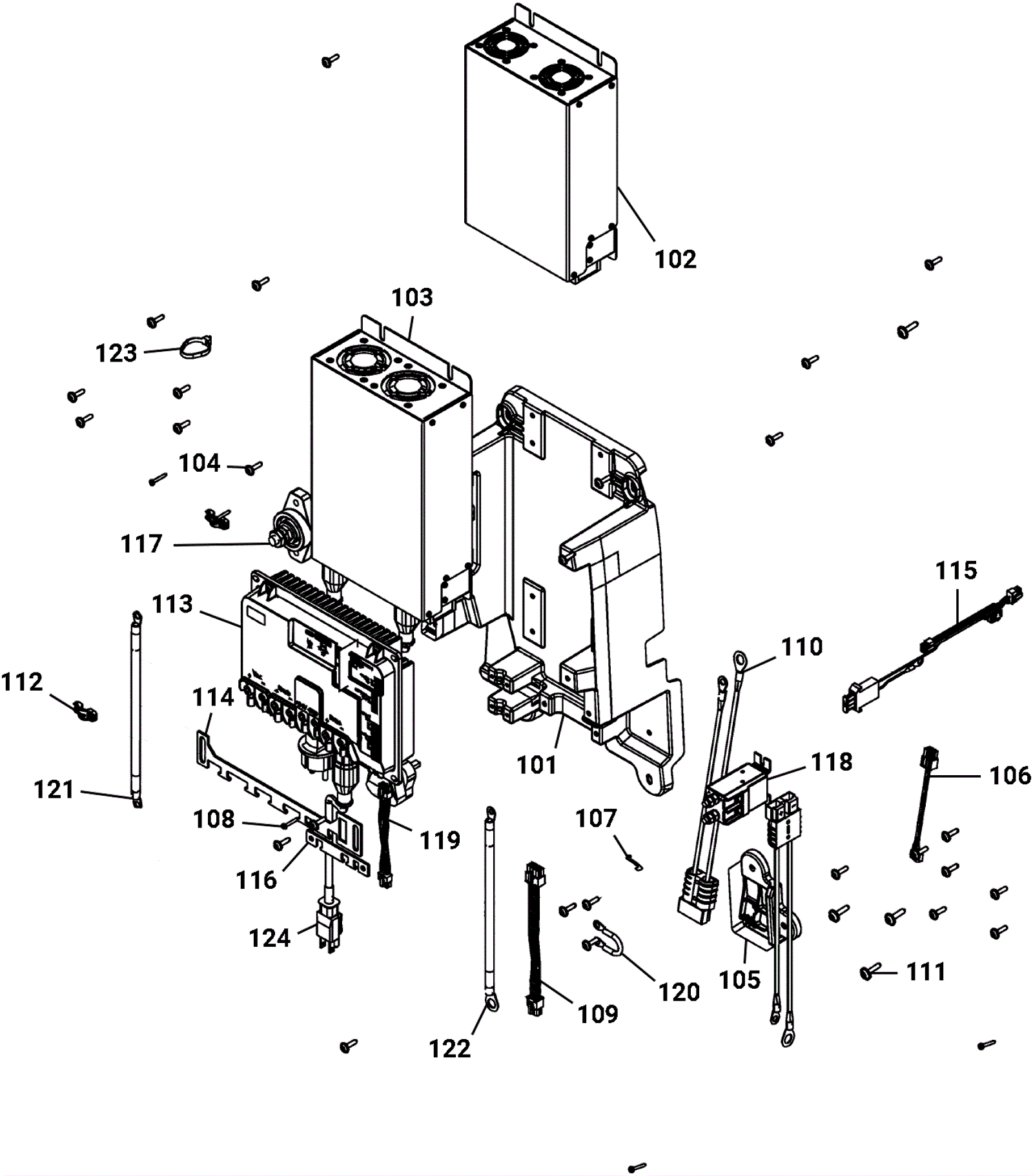

101 |
292-9375
|
Rear panel |
$36.05
|
1 |
|
ships same day |
102 |
292-9376
|
24V charger |
$528.65
|
1 |
(BMS 25amp) |
usually ships 30-75 days |
103 |
292-9377
|
24V charger |
$763.93
|
1 |
(BMS 40amp) |
ships same day |
104 |
192-1571
|
Screw M50 x 16mm |
$2.44
|
14 |
|
ships same day |
105 |
292-9378
|
Holder |
$2.44
|
1 |
(non-BMS) |
usually ships 30-75 days |
106 |
292-9379
|
Wire harness |
$32.11
|
1 |
(non-BMS) |
ships same day |
107 |
192-8784
|
Switch lever |
$21.98
|
1 |
(non-BMS) |
ships same day |
108 |
192-0549
|
Screw KA 35 x 20 |
$2.44
|
2 |
|
ships same day |
109 |
292-9380
|
Dashboard charger wire |
$16.12
|
1 |
(BMS) |
usually ships 30-75 days |
110 |
292-9381
|
Charger jack wire harness |
$19.42
|
1 |
|
usually ships 30-75 days |
111 |
192-1561
|
Screw 60 x 20 torx head |
$2.44
|
6 |
(qty 2 for BMS) |
ships same day |
112 |
192-2496
|
Cable clamp |
$2.44
|
1 |
(BMS) |
usually ships 30-75 days |
113 |
292-9382
|
Electronics |
$674.65
|
1 |
|
ships same day |
114 |
292-9383
|
Strain relief bar |
$8.75
|
1 |
|
ships same day |
115 |
292-9384
|
Dashboard wire harness |
$30.23
|
1 |
|
ships same day |
116 |
292-9385
|
Strain relief bar |
$3.86
|
1 |
|
ships same day |
117 |
292-9386
|
Power post M10 |
$19.61
|
1 |
|
ships same day |
118 |
292-5738
|
24V relay |
$84.49
|
1 |
|
ships same day |
119 |
292-9387
|
Electronics charger wire |
$19.42
|
1 |
(BMS) |
usually ships 30-75 days |
120 |
292-9388
|
Diode |
$4.47
|
1 |
|
ships same day |
121 |
292-9389
|
Wire 6 AWG (red) |
$12.53
|
1 |
|
ships same day |
122 |
292-9390
|
Wire 6 AWG (black) |
$11.35
|
1 |
|
ships same day |
123 |
192-0102
|
7 3/4 inch cable tie |
$2.44
|
10 |
|
usually ships 30-75 days |
124 |
192-9973
|
Onboard charger cord |
$55.31
|
1 |
|
usually ships 30-75 days |
N/S |
192-8848
|
Screw 60 x 25 torx |
$2.44
|
2 |
|
ships same day |
