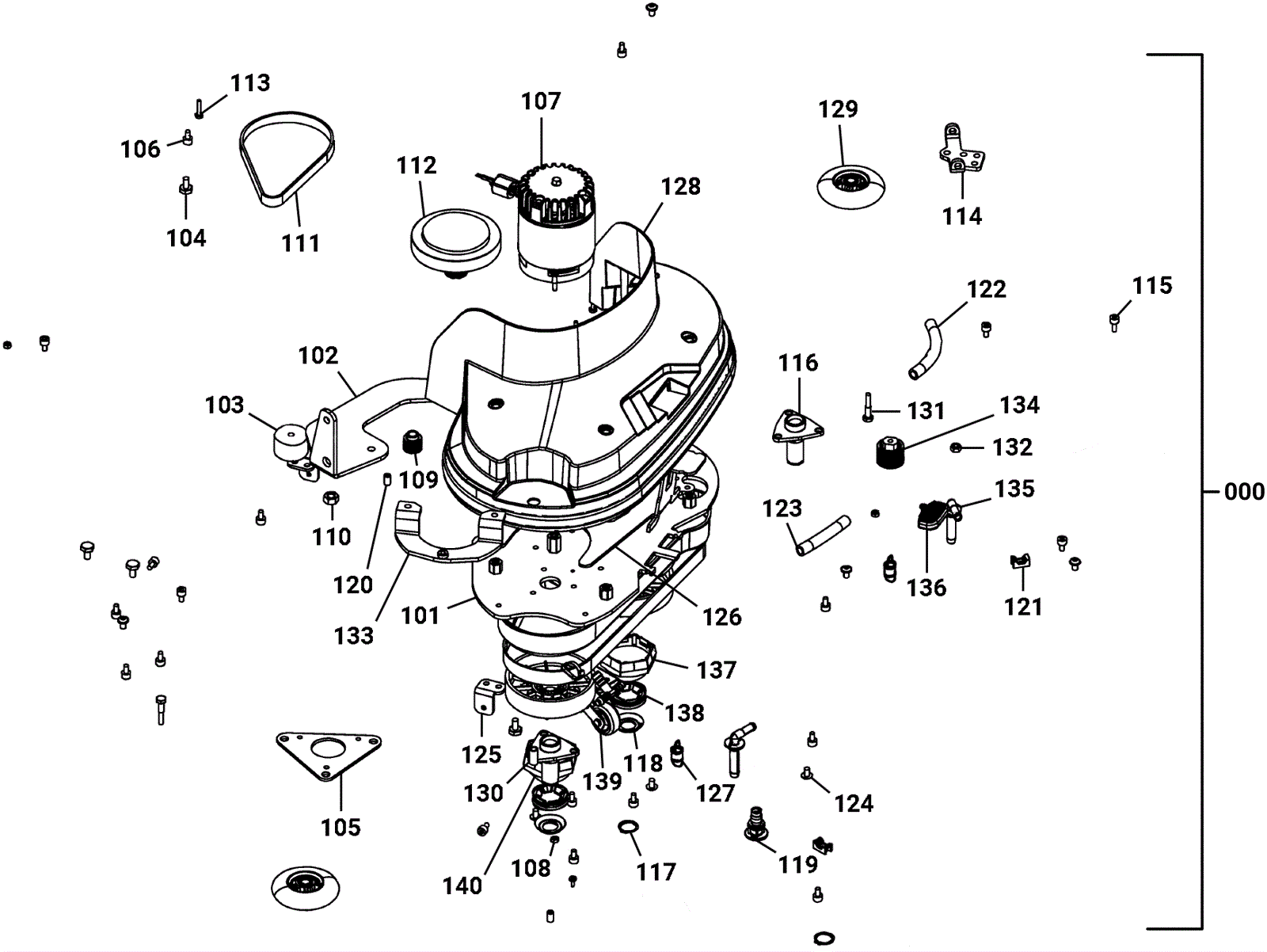

ULTIMAXX Brush Drive Assembly - 2x28 and 2x33

#PartDescriptionPriceReqNotesAvailability
000 292-9452 Brush drive DD28 $1,865.69 1 (includes 101-140) usually ships 30-75 days
101a 292-9307 Brush base plate $268.86 1 (2x28) ships same day
101b 292-9308 Brush base plate $302.63 1 (2x33) ships same day
102 292-9309 Holder plate $50.38 1 ships same day
103 192-0492 Buffer $9.23 2 ships same day
104 192-1455 Screw M10 x 16mm hex head $4.22 4 ships same day
105 292-9311 Holder $15.75 1 ships same day
106 192-0364 Screw M8 x 12mm socket head $2.52 21 usually ships 30-75 days
107 292-9293 24V motor $414.34 1 usually ships 30-75 days
108 999-1308 Nut M6-1 hex stainless steel $0.99 3 ships same day
109 192-5815 Pulley $9.97 1 (2x28) ships same day
110 192-0800 Nut M12 left hand thread hex $4.40 1 ships same day
111 192-5626 Poly v-belt $21.62 1 usually ships 30-75 days
112 292-0068 Pulley kit (includes bearings and clips) $183.15 1 usually ships 30-75 days
113 192-1285 Screw M6 x 25mm hex head $2.44 3 ships same day
114 192-2826 Clamp $18.39 1 ships same day
115 192-0078 Screw M8 x 16mm socket head $2.44 1 ships same day
116 192-0590 Pulley axle $12.69 2 ships same day
117 192-0503 Retaining ring $2.44 2 ships same day
118 192-6320 Sealing ring $2.44 2 ships same day
119 192-2728 Flanged bushing $5.37 2 ships same day
120 292-9313 Bushing Call for price 2 usually ships 30-75 days
121 292-8039 Clamp $2.76 2 ships same day
122 192-0404 Wire reinforced hose (sold by the inch) $0.99 5 in ships same day
123 192-0404 Wire reinforced hose (sold by the inch) $0.99 5 in ships same day
124 192-0348 Screw M8 x 12mm truss head $2.44 8 ships same day
125 292-9318 Holder $9.28 2 ships same day
126 292-9319 Plate $73.70 1 usually ships 30-75 days
127 192-9265 Tension spring $2.44 2 usually ships 30-75 days
128a 292-9320 Brush cover $82.98 1 (2x28) ships same day
128b 292-9321 Brush cover $171.42 1 (2x33) ships same day
129 192-8744 Wheel $31.57 2 ships same day
130 192-9803 Bushing $2.52 2 ships same day
131 192-9212 Screw M8 x 40/22mm hex $4.35 2 usually ships 30-75 days
132 192-0510 Nut M8 self locking $2.44 1 ships same day
133 292-9322 Holder $39.39 1 ships same day
134 192-4543 Axle idler kit $48.30 1 ships same day
135 192-1677 Angled nipple $2.44 2 ships same day
136 192-8983 Pedal pad $9.50 1 ships same day
137 192-5814 Pulley with bearings (bearings not available separate) $31.50 2 ships same day
138 192-6321 Sealing ring $3.74 2 ships same day
139 292-9317 Roller unit $102.20 1 usually ships 30-75 days
140 192-3032 Drive hub $15.99 2 ships same day
N/S 192-5623 Poly v-belt $87.96 1 (included with 000) (2x28) ships same day
N/S 192-0101 Screw M5 x 12mm self tapping form $2.44 2 (included with 000) ships same day
N/S 292-9314 T-nipple $5.98 1 (included with 000) ships same day
N/S 192-0400 Wire reinforced hose (sold by the inch) $0.99 13 in (included with 000) ships same day
N/S 192-0102 7 3/4 inch cable tie $2.44 2 (included with 000) usually ships 30-75 days
N/S 292-9315 Cover $9.23 1 (included with 000) (2x28) usually ships 30-75 days
N/S 292-9316 Cover $20.52 1 (2x33) ships same day
N/S 292-0137 Pulley $43.78 1 (2x33) ships same day
N/S 292-0015 Guide wheel $50.30 1 (2x33) usually ships 30-75 days
N/S 292-9312 Poly-v belt $61.05 1 (2x33) ships same day
N/S 192-9388 Pulley $8.99 1 (2x33) ships same day
