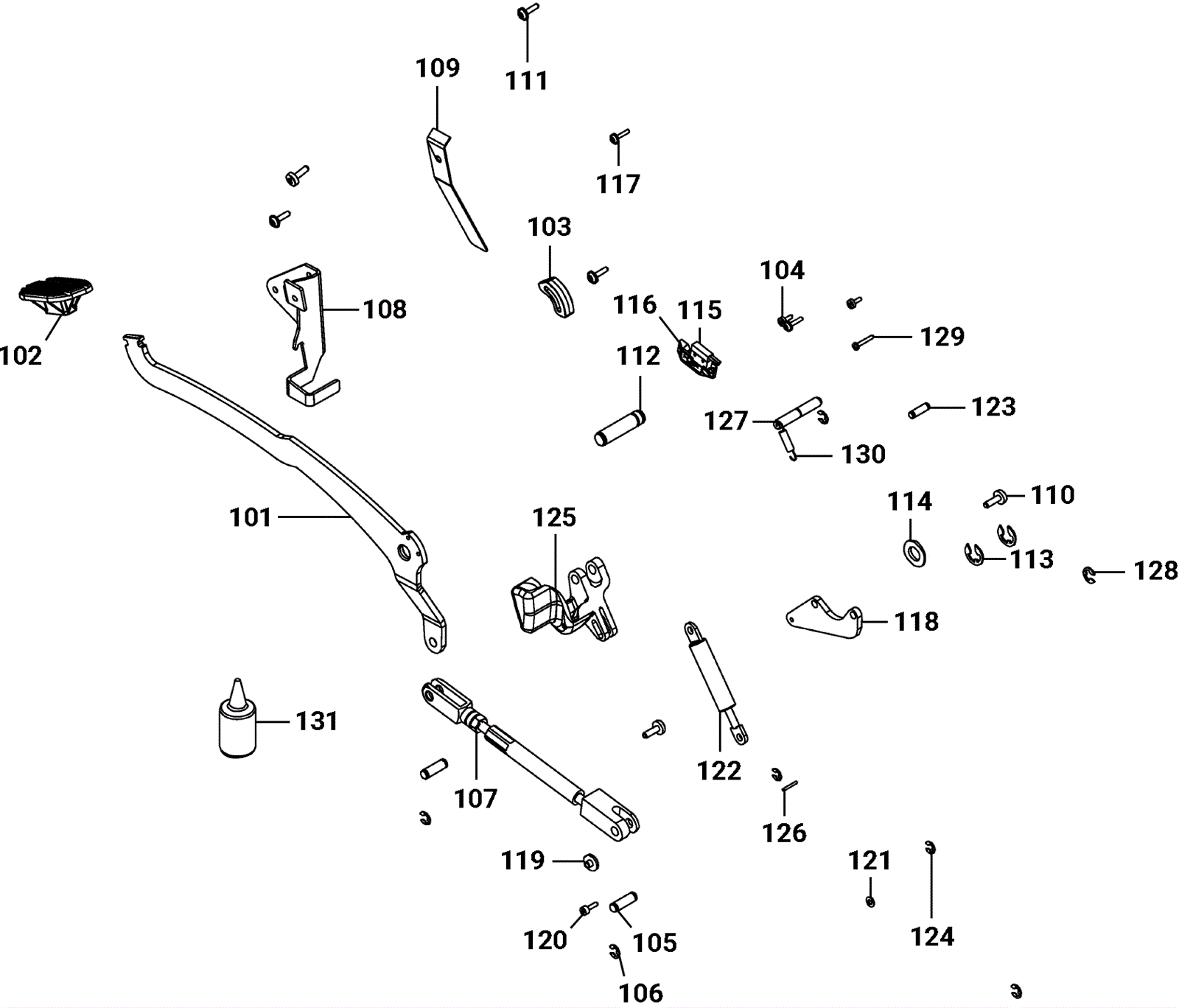

ULTIMAXX Tool Lowering Assembly - MBU

#PartDescriptionPriceReqNotesAvailability
101a 292-9412 Lever $47.70 1 (1900) ships same day
101b 292-9242 Lever $45.13 1 (2900) ships same day
102 192-8903 Pedal pad $2.44 1 ships same day
103 292-9444 Switch cam $2.44 1 ships same day
104 192-6347 Screw M4 x 10mm self tapping form $2.44 2 usually ships 30-75 days
105 192-9183 Axle $8.01 2 usually ships 30-75 days
106 192-0840 Snap ring $2.44 4 ships same day
107a 292-9413 Rod $67.88 1 (1900) usually ships 30-75 days
107b 292-9244 Linkage (OBSOLETE) $67.76 1 (2900) usually ships 30-75 days
108 292-9245 Angle bracket $19.12 1 usually ships 30-75 days
109 292-9246 Flat spring $7.69 1 ships same day
110 292-5130 Screw M6-1 x 16mm torx $3.62 3 ships same day
111 192-1571 Screw M50 x 16mm $2.44 3 ships same day
112 292-9210 Bolt $9.47 1 ships same day
113 192-2775 Snap ring for shaft $2.68 2 usually ships 30-75 days
114 192-1050 Washer $3.62 1 usually ships 30-75 days
115 292-9247 Microswitch $35.89 1 ships same day
116 292-9146 Holder $2.44 1 ships same day
117 192-1595 Screw M40 x 16mm torx head $2.44 2 ships same day
118 292-9248 Lever $10.63 1 (disc) ships same day
119 292-9249 Flanged bushing Call for price 1 (disc) usually ships 30-75 days
120 192-6475 Screw M4 x 12 socket head cap $2.44 1 (disc) usually ships 1-5 days
121 192-1195 Washer M4 $2.44 1 (disc) ships same day
122 292-9250 Gas spring strut $61.17 1 (disc) ships same day
123 292-9251 Bolt $7.81 1 (disc) ships same day
124 192-0902 Snap ring $2.44 2 (disc) ships same day
125 292-9252 Lever $5.74 1 (disc) ships same day
126 292-9253 Dowel pin $2.44 1 (disc) ships same day
127 292-9232 Bolt $9.89 1 (disc) ships same day
128 192-2779 Snap ring $4.47 1 (disc) ships same day
129 192-0549 Screw KA 35 x 20 $2.44 1 (disc) ships same day
130 292-9136 Tension spring $8.25 1 (disc) ships same day
131 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 (disc) ships same day
N/S 292-9470 Linkage $67.77 1 usually ships 30-75 days
