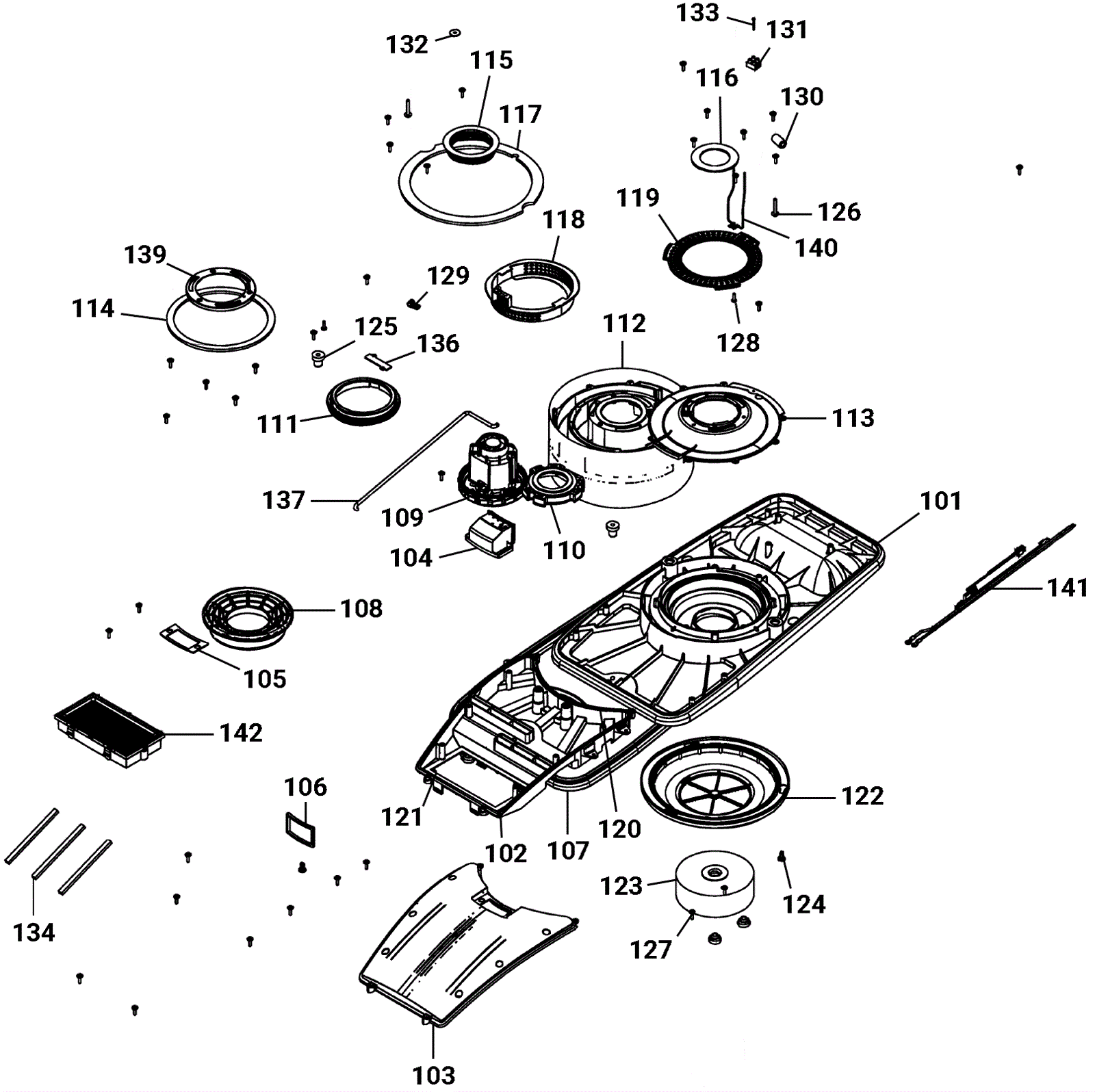

ULTIMAXX Suction Plate Assembly

#PartDescriptionPriceReqNotesAvailability
101a 292-9395 Suction plate $90.31 1 (1900) ships same day
101b 292-9155 Suction plate $147.94 1 (2900) ships same day
102 292-9156 Noise absorber $15.58 1 usually ships 30-75 days
103 292-9157 Cover $13.31 1 ships same day
104a 292-9396 Connection $2.44 1 (1900) ships same day
104b 292-9158 Connection $29.13 1 (2900) ships same day
105 292-9160 Gasket $4.52 1 ships same day
106 292-9159 Gasket $3.74 1 ships same day
107 192-6334 Sealing profile (sold by the inch) $0.99 71 in ships same day
108 292-9161 Protecting ring $25.40 1 ships same day
109 292-9162 24V vacuum motor $127.55 1 usually ships 30-75 days
110 292-9163 Support $18.14 1 ships same day
111 292-9164 Sealing ring $16.61 1 usually ships 30-75 days
112 292-9165 Housing $19.36 1 ships same day
113 292-9167 Cover $7.15 1 ships same day
114 292-9168 Sealing ring $8.75 1 usually ships 30-75 days
115 292-9169 Sealing ring $18.14 1 usually ships 30-75 days
116 292-9170 Sealing ring $4.28 1 ships same day
117 192-1569 Sealing ring $6.79 1 ships same day
118 292-9171 Noise absorber $4.28 1 usually ships 30-75 days
119 292-9172 Noise absorber $3.30 1 usually ships 30-75 days
120 292-9173 Noise absorber $7.40 1 ships same day
121 192-1559 Retaining rivet $4.52 4 ships same day
122 292-9174 Filter $33.53 1 ships same day
123 192-1490 Float $31.38 1 ships same day
124 192-8753 Flange bolt $2.44 3 ships same day
125 192-1575 Buffer $2.44 2 ships same day
126 192-1557 Screw 60 x 35 torx head $2.44 2 ships same day
127 192-1571 Screw M50 x 16mm $2.44 33 ships same day
128 192-0958 Screw 50 x 16 for plastic $5.93 3 ships same day
129 192-2501 P clamp $4.59 1 ships same day
130 192-0732 Ferrite bushing $3.00 1 usually ships 30-75 days
131 192-2895 2 way connection block $2.44 1 usually ships 30-75 days
132 192-0705 Washer $2.44 1 usually ships 30-75 days
133 292-9177 Screw $0.99 1 ships same day
134 192-6310 Seal strip (sold by the inch) $0.99 62 in ships same day
136 292-9176 Plate $4.35 1 ships same day
137 292-9175 Bracket $10.45 1 ships same day
139 292-9166 Gasket $9.97 1 ships same day
140 292-9178 Vac-mot wire harness Call for price 1 usually ships 30-75 days
141 292-9179 Wire harness $31.82 1 ships same day
142 292-9199 Hepa H13 $70.77 1 (option) (bac) ships same day
N/S 192-0102 7 3/4 inch cable tie $2.44 1 usually ships 30-75 days
N/S 292-9180 Holder $2.44 1 ships same day
