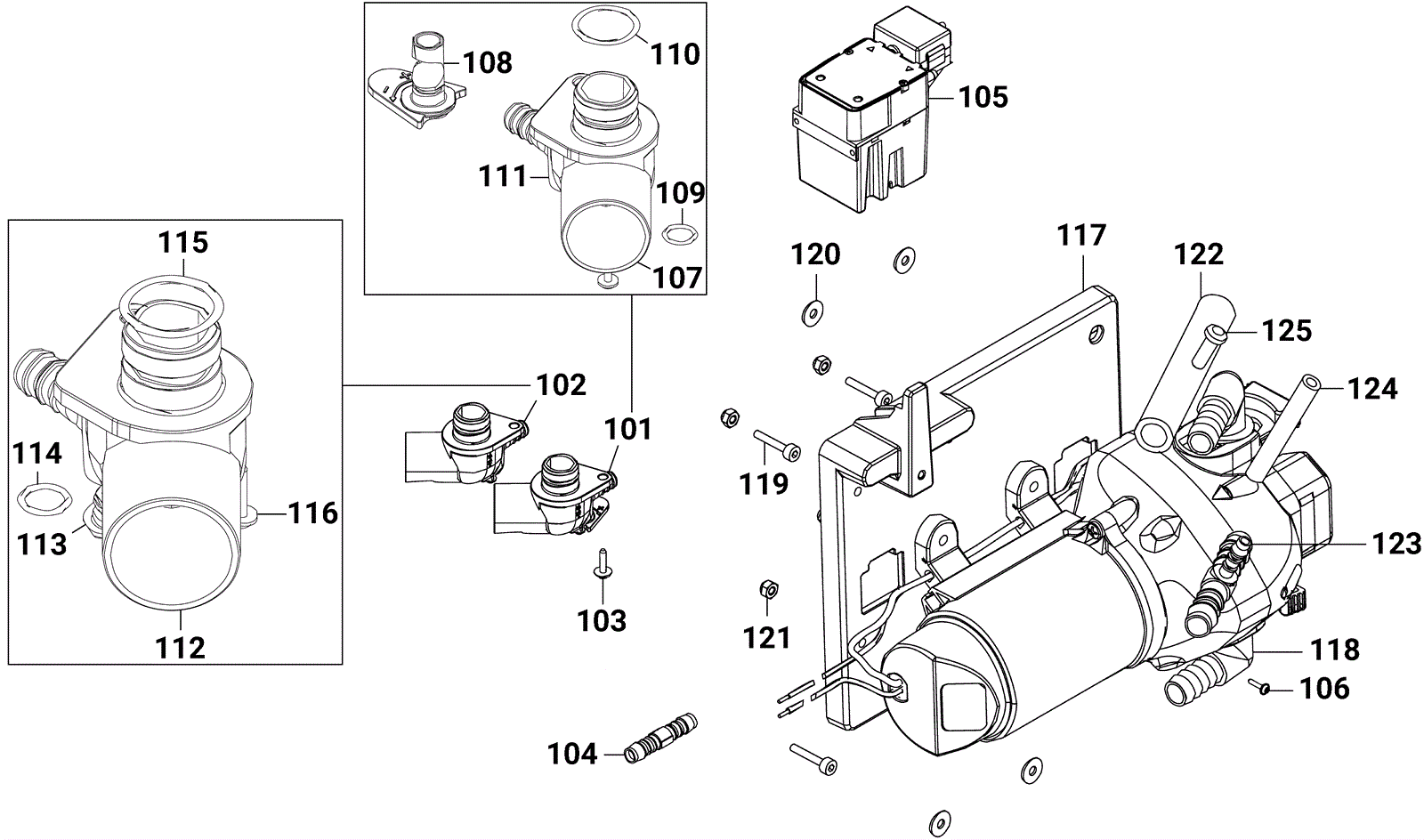

ULTIMAXX Water Pump Assembly

#PartDescriptionPriceReqNotesAvailability
101 292-9423 Water regulating set $25.16 1 (includes 107-111) (eco) ships same day
102 292-9424 Valve set $23.82 1 (includes 112-116) (performance) usually ships 30-75 days
103 192-1561 Screw 60 x 20 torx head $2.44 1 ships same day
104 292-9425 Double nipple $4.75 1 (without pump) ships same day
105 292-9426 Dosing pump Call for price 1 (intellidose+) usually ships 30-75 days
106 192-1595 Screw M40 x 16mm torx head $2.44 1 (intellidose+) ships same day
107 292-9263 Valve body $6.84 1 ships same day
108 292-9264 Dosing bolt $2.44 1 (without pump) usually ships 30-75 days
109 292-9266 O-ring $2.44 1 ships same day
110 192-5369 O-ring $2.44 1 ships same day
111 192-1595 Screw M40 x 16mm torx head $2.44 1 ships same day
112 292-9263 Valve body $6.84 1 ships same day
113 292-9265 Plug $2.44 1 ships same day
114 292-9266 O-ring $2.44 1 ships same day
115 192-5369 O-ring $2.44 1 ships same day
116 192-1595 Screw M40 x 16mm torx head $2.44 1 ships same day
117 292-9427 Support $10.75 1 usually ships 30-75 days
118 292-9269 24V pump $290.20 1 usually ships 30-75 days
119 192-1105 Screw M4 x 20mm socket head $2.44 4 usually ships 1-5 days
120 192-0149 Washer $2.44 4 ships same day
121 192-0235 Nut M4 self locking $2.44 4 ships same day
122 192-0400 Wire reinforced hose (sold by the inch) $0.99 3 in ships same day
123 192-9542 T-nipple $7.91 1 ships same day
124 192-4344 Hose (sold by the inch) $3.74 10 in usually ships 30-75 days
125 292-9267 Plug $2.44 1 ships same day
