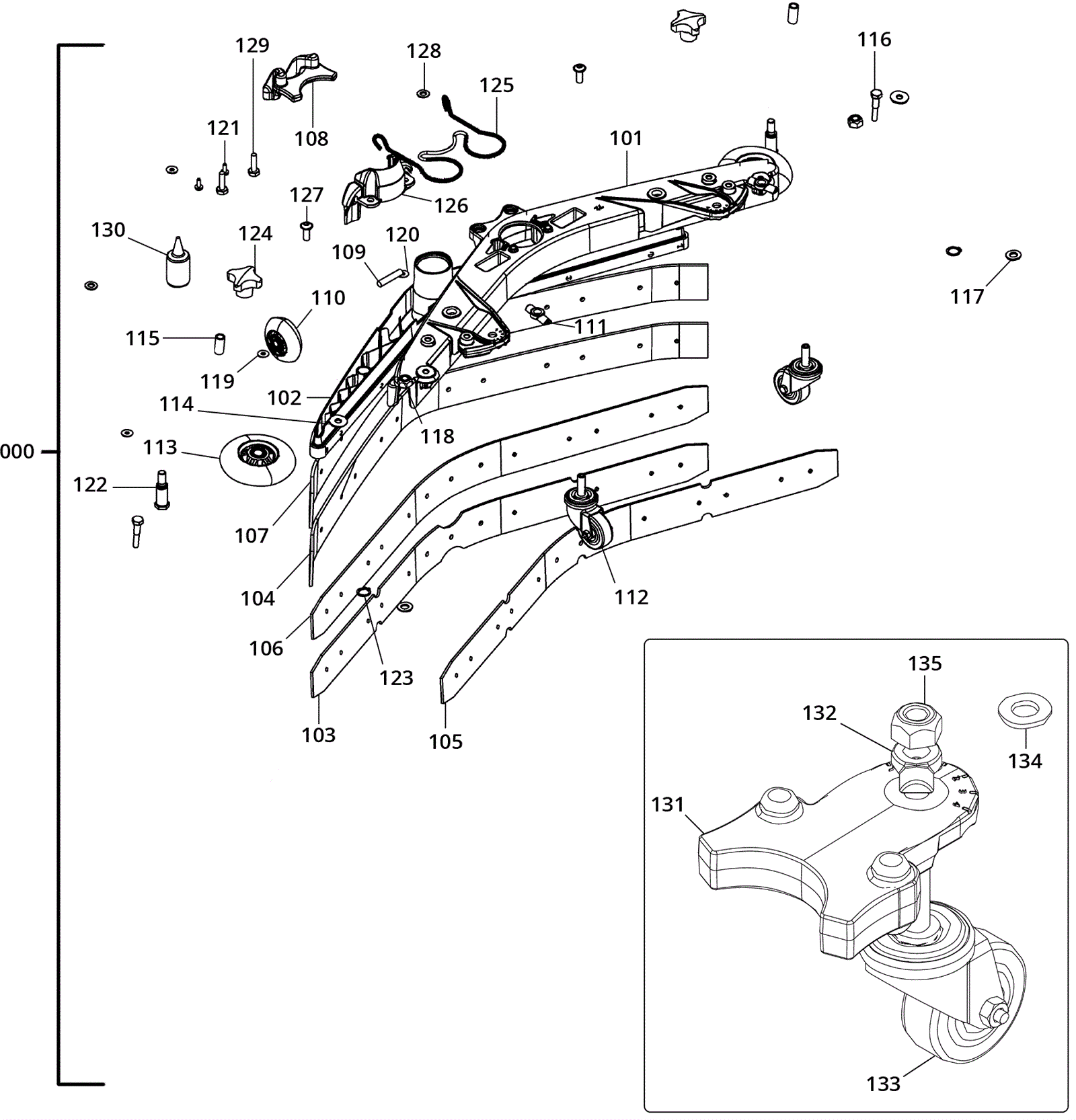

ULTIMAXX Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
000a 292-9414 28 inch squeegee assembly $548.13 1 (includes 101a, 102a, 103a, 104a, 105a, 106a, 107a, 108-130) ships same day
000b 292-9270 Squeegee assembly $569.55 1 (includes 101b, 102b, 103b, 104b, 105b, 106b, 107b, 108-130) usually ships 30-75 days
000c 292-9271 Squeegee assembly $605.42 1 (includes 101c, 102c, 103c, 104c, 105c, 106c, 107c, 108-130) ships same day
101a 292-9415 Squeegee body $181.15 1 (28 in) ships same day
101b 292-9272 Squeegee body $195.98 1 (32 in) ships same day
102a 292-9416 Clamping part $35.37 1 (28 in) ships same day
102b 292-9274 Clamping part $43.84 1 (32 in) ships same day
102c 292-9275 Clamping part $74.06 1 (36 in) ships same day
103a 292-9417 Squeegee blade 30 inch linatex front $45.62 1 (28 in) (standard) usually ships 30-75 days
103b 292-9276 Squeegee blade 34 inch linatex front $46.10 1 (32 in) (standard) usually ships 30-75 days
103c 292-9277 Squeegee blade 39 inch linatex front $58.49 1 (36 in) (standard) ships same day
104a 292-9418 Squeegee blade 32 inch linatex rear $51.24 1 (28 in) (standard) ships same day
104b 292-9278 Squeegee blade 37 inch linatex rear $53.72 1 (32 in) (standard) ships same day
104c 292-9279 Squeegee blade 41 inch linatex rear $63.32 1 (36 in) (standard) ships same day
105a 292-9419 Squeegee blade 30 inch polyurethane front $67.35 1 (28 in) (optional) usually ships 30-75 days
105b 292-9280 Squeegee blade 34 inch polyurethane front $68.62 1 (32 in) (optional) ships same day
105c 292-9281 Squeegee blade 39 inch polyurethane front $74.36 1 (36 in) (optional) ships same day
106a 292-9420 Squeegee blade 30 inch poly urethane front $59.05 1 (28 in) (optional) ships same day
106b 292-9282 Squeegee blade 34 inch polyurethane front $62.39 1 (32 in) (optional) ships same day
106c 292-9283 Squeegee blade 39 inch polyurethane front $68.99 1 (36 in) (optional) ships same day
107a 292-9421 Squeegee blade 32 inch rear $28.89 1 (28 in) (optional) ships same day
107b 292-9284 Squeegee blade 37 inch linatex rear $35.65 1 (32 in) (optional) ships same day
107c 292-9285 Squeegee blade 41 inch linatex rear $41.76 1 (36 in) (optional) ships same day
108 292-9286 Adapter $27.10 1 ships same day
109 192-9215 Axle $19.00 1 usually ships 30-75 days
110 192-8746 Wheel 2.5 x 1 inch $105.69 1 usually ships 30-75 days
111 292-8550 Locking bolt $12.29 2 ships same day
112 292-8548 Caster wheel $43.59 2 ships same day
113 192-8744 Wheel $31.57 2 ships same day
114 192-0248 Washer M8 $2.56 2 ships same day
115 192-9803 Bushing $2.52 2 ships same day
116 192-9212 Screw M8 x 40/22mm hex $4.35 2 usually ships 30-75 days
117 192-0496 Washer M10 $2.44 2 ships same day
118 192-6339 Nut M10 self locking $2.44 2 ships same day
119 292-8611 Washer $2.44 2 ships same day
120 192-0971 Washer $2.44 2 ships same day
121 192-0101 Screw M5 x 12mm self tapping form $2.44 2 ships same day
122 292-0005 Screw M10 hex head $23.52 2 usually ships 30-75 days
123 192-0075 Retaining ring $5.81 2 ships same day
124 292-0004 Star knob $4.22 2 ships same day
125 292-9287 Wire spring $18.44 1 ships same day
126 292-9288 Holder $3.49 1 usually ships 30-75 days
127 192-1524 Screw M8 x 20mm flange socket head $2.44 2 ships same day
128 192-0105 Washer M8 $2.44 2 ships same day
129 192-0822 Screw M8 x 25 hex head $3.30 2 usually ships 30-75 days
130 192-1872 Grease $11.99 1 ships same day
131 292-9289 Adapter Call for price 1 usually ships 30-75 days
132 292-8550 Locking bolt $12.29 1 ships same day
133 292-8548 Caster wheel $43.59 1 ships same day
134 192-0496 Washer M10 $2.44 1 ships same day
135 192-6339 Nut M10 self locking $2.44 1 ships same day
