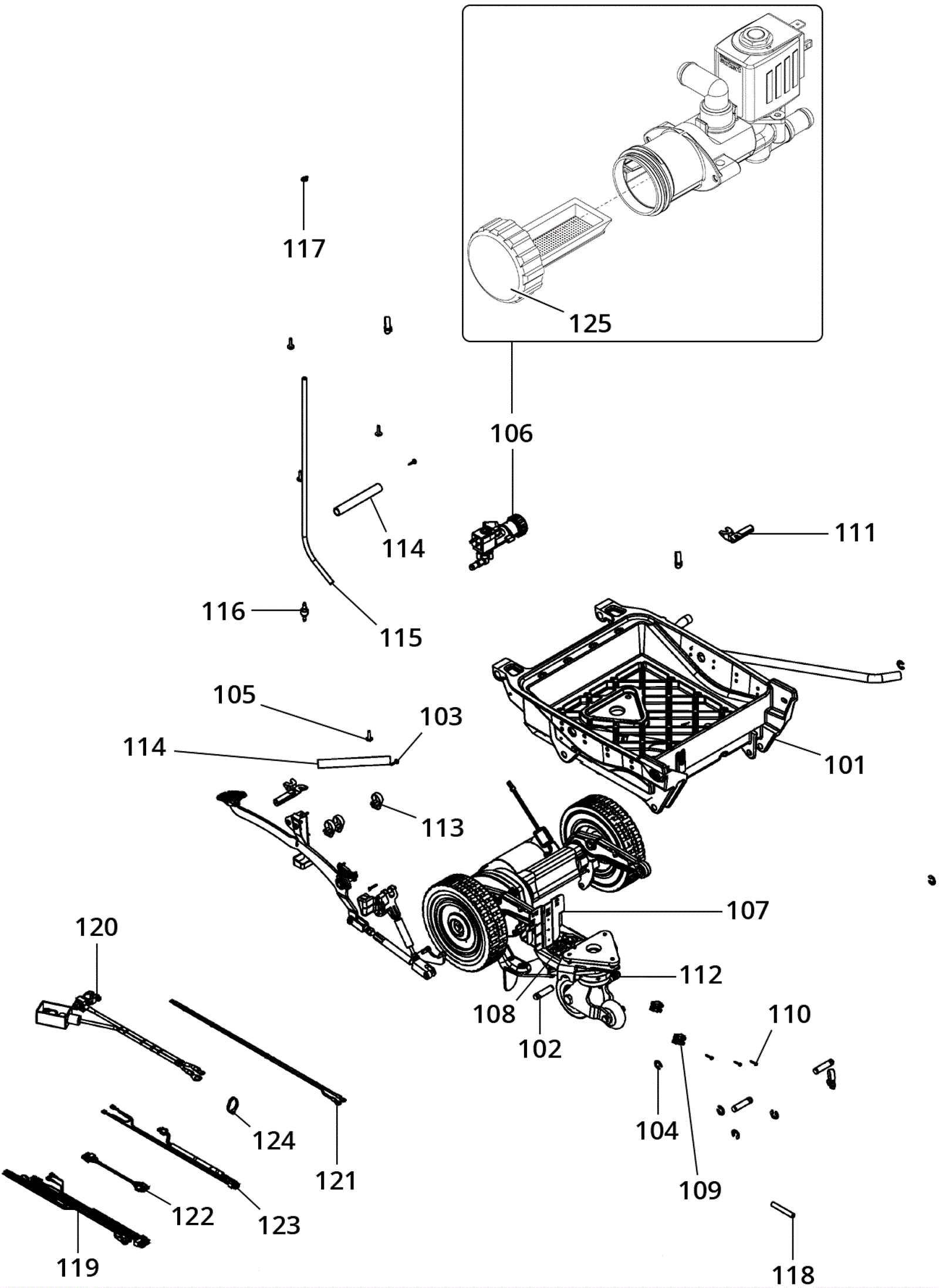

ULTIMAXX Lower Assembly

#PartDescriptionPriceReqNotesAvailability
101 292-9406 Chassis $283.23 1 usually ships 30-75 days
102 292-9210 Bolt $9.47 3 ships same day
103 192-1595 Screw M40 x 16mm torx head $2.44 2 ships same day
104 192-2775 Snap ring for shaft $2.68 6 usually ships 30-75 days
105 192-1561 Screw 60 x 20 torx head $2.44 4 ships same day
106 192-9276 Solenoid and filter assembly $296.90 1 (includes 125) ships same day
107 292-9211 Plate $21.24 1 ships same day
109 192-2895 2 way connection block $2.44 2 usually ships 30-75 days
110 192-9692 Screw M3 x 16mm $2.44 3 usually ships 1-5 days
111 292-9213 Bracket $9.65 2 ships same day
112 192-9542 T-nipple $7.91 1 ships same day
113 192-0334 Hose clamp $3.26 6 usually ships 12-29 days
114a 192-9207 Hose with protection (sold by the inch) $0.66 5 in usually ships 30-75 days
114b 192-9207 Hose with protection (sold by the inch) $0.66 24 in usually ships 30-75 days
114c 192-9207 Hose with protection (sold by the inch) $0.66 6 in usually ships 30-75 days
115 192-0639 Solution hose (sold by the inch) $0.99 39 in ships same day
116 192-1601 Check valve $27.42 1 ships same day
117 192-0973 3 1/4 inch cable tie $2.44 1 usually ships 30-75 days
118 192-4344 Hose (sold by the inch) $3.74 75 in usually ships 30-75 days
119 292-9407 Wire harness $63.49 1 ships same day
120 292-9215 Wire harness $155.39 1 usually ships 30-75 days
121 292-9408 Drive electronics wire harness $17.41 1 ships same day
122 292-9409 Intellidose wire harness $22.59 1 ships same day
123 292-9410 Wire harness $27.10 1 ships same day
124 192-0102 7 3/4 inch cable tie $2.44 15 usually ships 30-75 days
125 292-0082 Filter kit $11.11 1 ships same day
