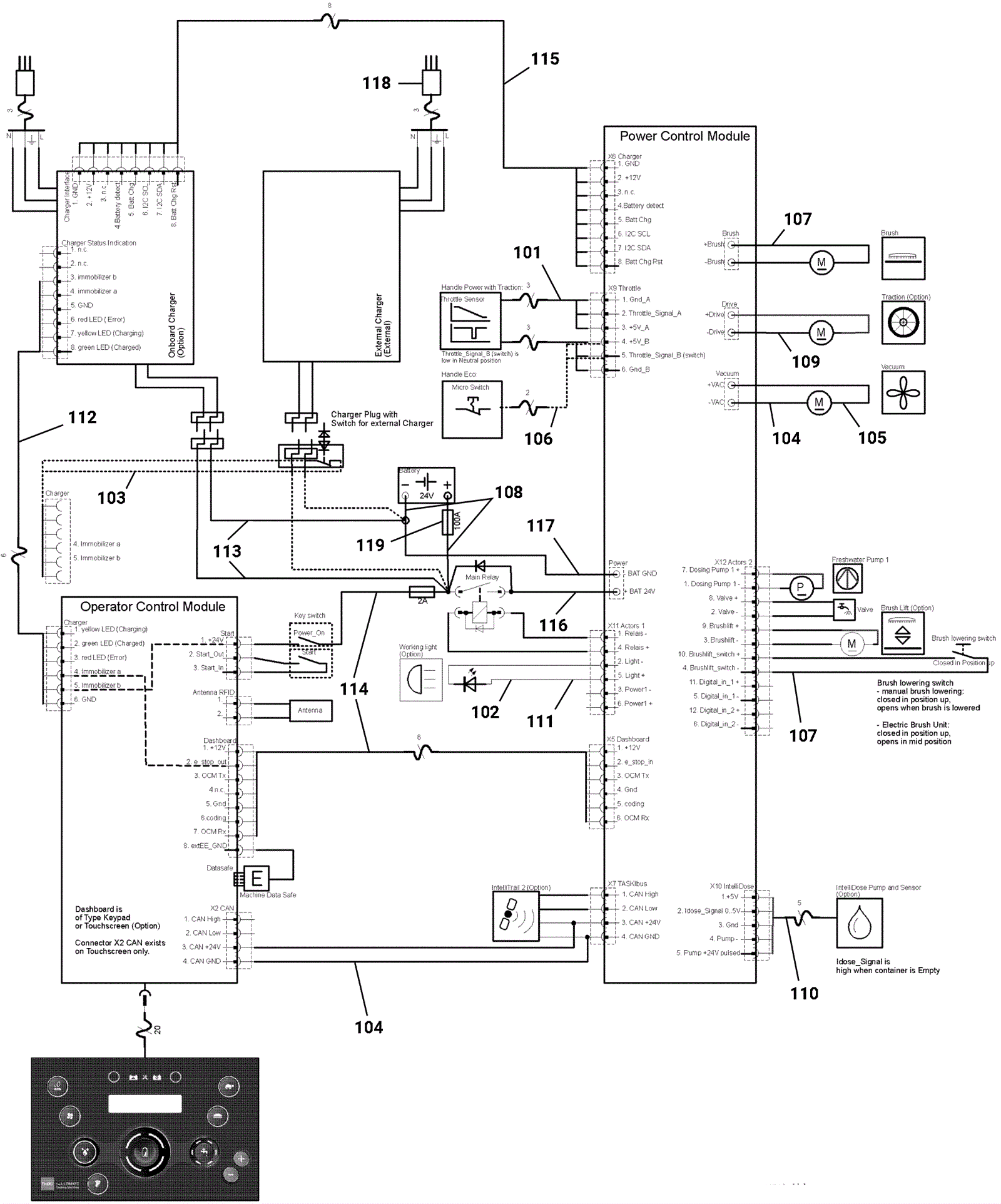

ULTIMAXX Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
101 292-9147 Hall sensor $154.02 1 ships same day
102 292-9193 LED wire harness $8.62 1 (performance) ships same day
103 292-9379 Wire harness $32.11 1 (NON-BMS) ships same day
104 292-9179 Wire harness $31.82 1 ships same day
105 292-9178 Vac-mot wire harness Call for price 1 usually ships 30-75 days
106 292-9145 Eco wire harness $36.99 1 ships same day
107 292-9407 Wire harness $63.49 1 ships same day
108 292-9215 Wire harness $155.39 1 usually ships 30-75 days
109 292-9408 Drive electronics wire harness $17.41 1 ships same day
110 292-9409 Intellidose wire harness $22.59 1 ships same day
111 292-9410 Wire harness $27.10 1 ships same day
112 292-9380 Dashboard charger wire $16.12 1 (BMS) usually ships 30-75 days
113 292-9381 Charger jack wire harness $19.42 1 usually ships 30-75 days
114 292-9384 Dashboard wire harness $30.23 1 ships same day
115 292-9387 Electronics charger wire $19.42 1 (BMS) usually ships 30-75 days
116 292-9389 Wire 6 AWG (red) $12.53 1 ships same day
117 292-9390 Wire 6 AWG (black) $11.35 1 ships same day
118 192-9973 Onboard charger cord $55.31 1 usually ships 30-75 days
119 292-0412 100amp fuse cartridge $36.95 1 usually ships 30-75 days
