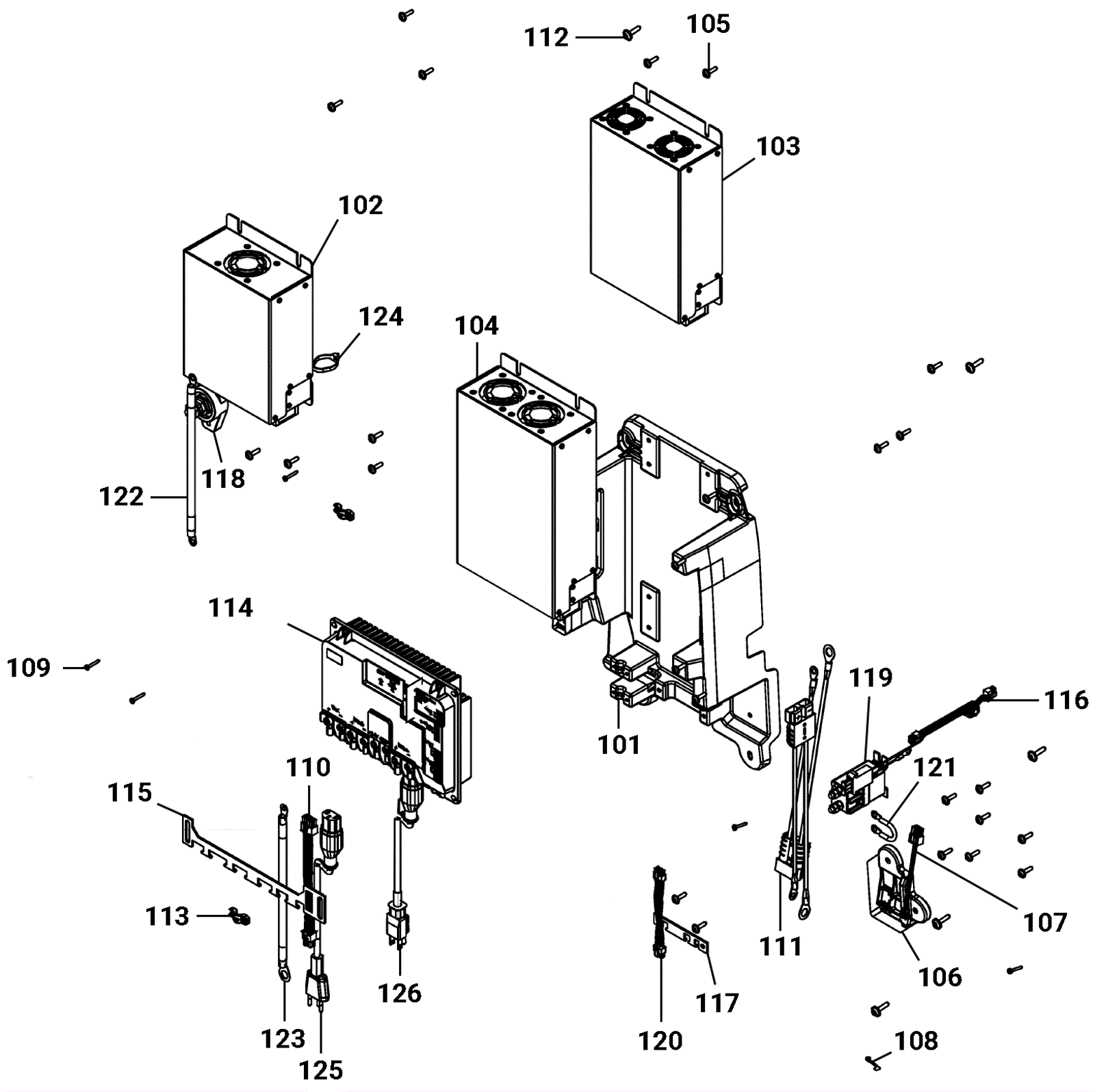

ULTIMAXX Electronics Assembly

#PartDescriptionPriceReqNotesAvailability
101 292-9375 Rear panel $36.05 1 ships same day
102 292-9422 24V charger $490.89 1 (BMS) (13amp) ships same day
103 292-9376 24V charger $528.65 1 (BMS) (25amp) usually ships 30-75 days
104 292-9377 24V charger $763.93 1 (BMS) (40amp) ships same day
105 192-1571 Screw M50 x 16mm $2.44 14 ships same day
106 292-9378 Holder $2.44 1 (NON-BMS) usually ships 30-75 days
107 292-9379 Wire harness $32.11 1 (NON-BMS) ships same day
108 192-8784 Switch lever $21.98 1 (NON-BMS) ships same day
109 192-0549 Screw KA 35 x 20 $2.44 2 ships same day
110 292-9380 Dashboard charger wire $16.12 1 (BMS) usually ships 30-75 days
111 292-9381 Charger jack wire harness $19.42 1 usually ships 30-75 days
112 192-1561 Screw 60 x 20 torx head $2.44 2 (qty 4 for BMS) ships same day
113 192-2496 Cable clamp $2.44 1 (BMS) usually ships 30-75 days
114 292-9382 Electronics $674.65 1 ships same day
115 292-9383 Strain relief bar $8.75 1 ships same day
116 292-9384 Dashboard wire harness $30.23 1 ships same day
117 292-9385 Strain relief bar $3.86 1 ships same day
118 292-9386 Power post M10 $19.61 1 ships same day
119 292-5738 24V relay $84.49 1 ships same day
120 292-9387 Electronics charger wire $19.42 1 (BMS) usually ships 30-75 days
121 292-9388 Diode $4.47 1 ships same day
122 292-9389 Wire 6 AWG (red) $12.53 1 ships same day
123 292-9390 Wire 6 AWG (black) $11.35 1 ships same day
124 192-0102 7 3/4 inch cable tie $2.44 10 usually ships 30-75 days
125 192-9831 Connecting cable $36.63 1 (SEV) usually ships 30-75 days
126 192-9973 Onboard charger cord $55.31 1 usually ships 30-75 days
N/S 192-8848 Screw 60 x 25 torx $2.44 2 ships same day
