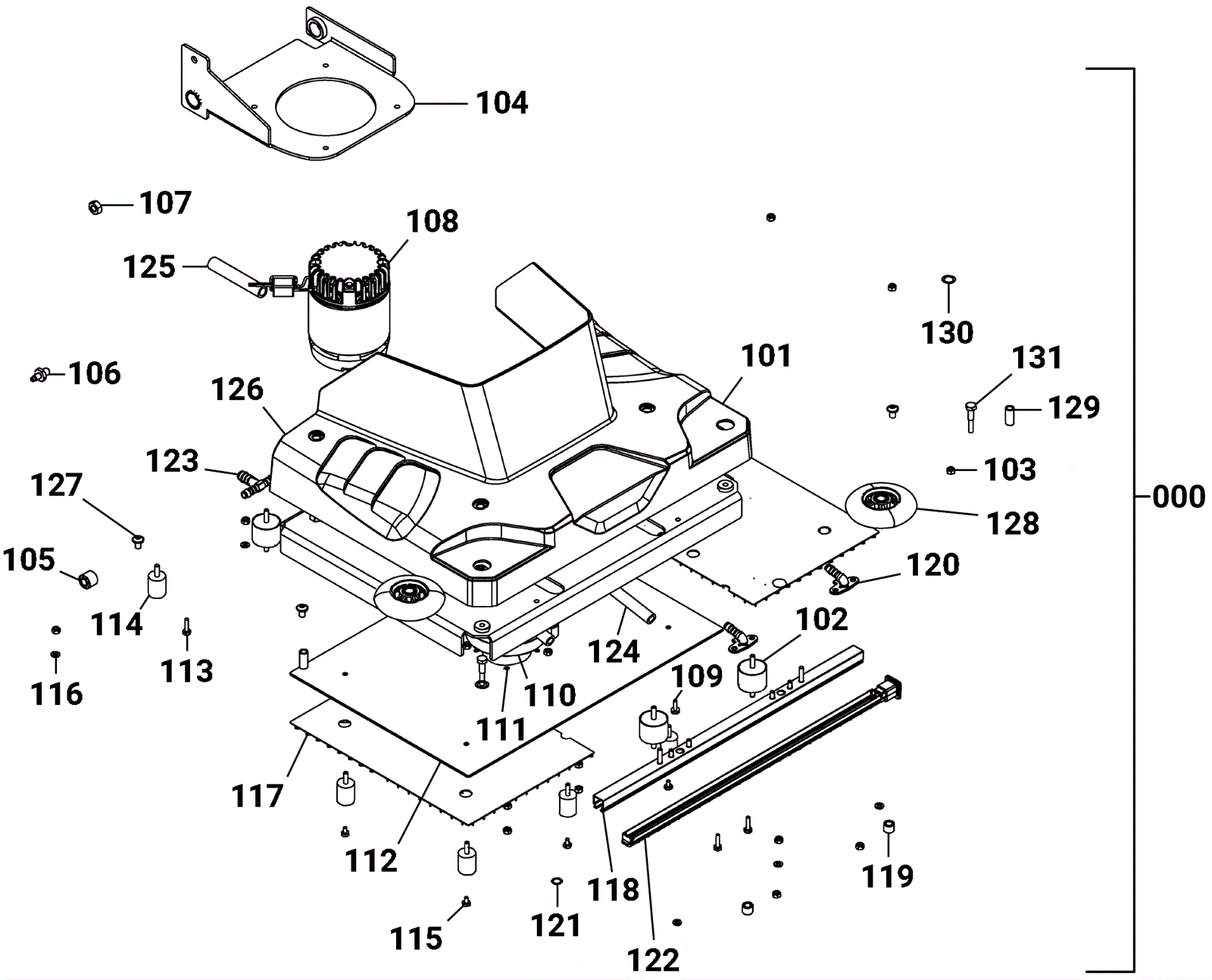

ULTIMAXX Brush Drive Assembly - Orbital

#PartDescriptionPriceReqNotesAvailability
000 292-9362 Orbital brush drive assembly $2,458.02 1 (includes 101-131) usually ships 30-75 days
101 292-9363 Housing $282.25 1 ships same day
102 192-0562 Buffer $17.09 4 usually ships 30-75 days
103 192-0563 Nut M6 self-locking $2.44 20 ships same day
104 292-9364 Holder plate $116.07 1 ships same day
105 192-1953 Bushing $18.93 2 ships same day
106 192-2085 Bolt $9.35 1 ships same day
107 192-1135 Nut M10 hex $2.44 1 ships same day
108 292-9365 24V motor $367.22 1 usually ships 30-75 days
109 292-5130 Screw M6-1 x 16mm torx $3.62 4 ships same day
110 292-9366 Excenter $279.63 1 ships same day
111 292-9367 Protecting ring $112.57 1 ships same day
112 292-9368 Pad holder $275.65 1 usually ships 30-75 days
113 192-4222 Screw M6 x 20 hex head $3.18 4 ships same day
114 292-9369 Buffer $4.22 6 ships same day
115 999-1317 Screw M6-1 x 8mm hex head stainless steel $0.99 6 usually ships 1-5 days
116 192-0964 Washer $2.44 6 ships same day
117 292-9370 Orbital pad holder $148.23 2 ships same day
118 292-9371 Dispenser tube $200.49 1 ships same day
119 292-8562 Bushing $10.63 2 ships same day
120 292-9338 Water connector $10.38 2 ships same day
121 292-9266 O-ring $2.44 2 ships same day
122 292-9372 Dispenser channel $54.65 1 ships same day
123 292-9314 T-nipple $5.98 1 ships same day
124a 192-0404 Wire reinforced hose (sold by the inch) $0.99 17 in ships same day
124b 192-0404 Wire reinforced hose (sold by the inch) $0.99 17 in ships same day
125 192-0400 Wire reinforced hose (sold by the inch) $0.99 11 in ships same day
126 292-9373 Brush housing $79.73 1 ships same day
127 192-0348 Screw M8 x 12mm truss head $2.44 4 ships same day
128 192-8744 Wheel $31.57 2 ships same day
129 192-9803 Bushing $2.52 2 ships same day
130 192-7440 Washer wave $2.44 2 ships same day
131 192-9212 Screw M8 x 40/22mm hex $4.35 2 usually ships 30-75 days
N/S 292-9374 Angular ball bearing $56.12 1 ships same day
