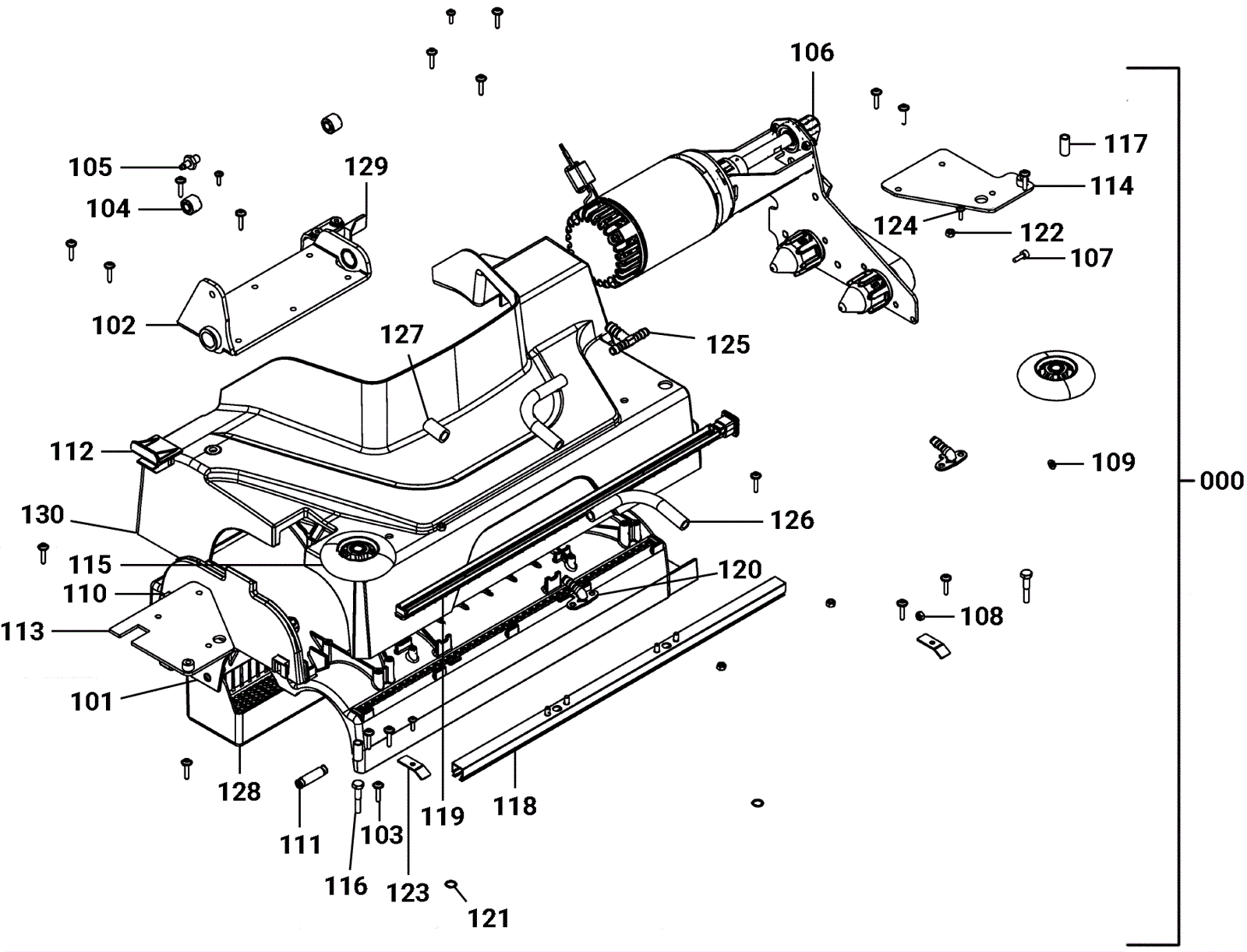

| # | Part | Description | Price | Req | Notes | Availability |
|---|
000a |
292-9323
|
Roller brush assembly |
$3,194.24
|
1 |
(includes 101a, 102-105, 106a, 107-117, 118a, 119b, 120-127, 128a,129, 130a) (22 inch) |
usually ships 30-75 days |
000b |
292-9324
|
Roller brush assembly |
$2,744.85
|
1 |
(includes 101b, 102-105, 106b, 107-117, 118b, 119a, 120-127, 128b, 129, 130b) (26 inch) |
ships same day |
101a |
292-9451
|
Housing 55 complete |
$280.91
|
1 |
(22 inch) |
ships same day |
101b |
292-9450
|
Housing 65 complete |
$189.87
|
1 |
(26 inch) |
usually ships 30-75 days |
102 |
292-9327
|
Holder plate |
$104.40
|
1 |
|
ships same day |
103 |
192-8848
|
Screw 60 x 25 torx |
$2.44
|
18 |
|
ships same day |
104 |
192-1953
|
Bushing |
$18.93
|
2 |
|
ships same day |
105 |
192-3445
|
Eccentric shaft hex head (black) |
$32.14
|
1 |
|
ships same day |
106a |
292-9329
|
Drive unit |
$1,668.40
|
1 |
(22 inch) |
ships same day |
106b |
N/A
|
Not available |
Call for price
|
1 |
(drive unit) (26 inch) |
usually ships 3-26 days |
107 |
192-6489
|
Screw M6 x 16 socket head cap |
$2.44
|
1 |
|
usually ships 1-5 days |
108 |
192-6345
|
Nut M6 self locking |
$2.44
|
1 |
|
ships same day |
109 |
192-0964
|
Washer |
$2.44
|
1 |
|
ships same day |
110 |
292-9330
|
Plate |
$51.08
|
1 |
|
ships same day |
111 |
192-8870
|
Pressure spring |
$2.44
|
1 |
|
ships same day |
112 |
292-9331
|
Locking plate |
$3.74
|
1 |
|
ships same day |
113 |
292-9332
|
Holder |
$46.72
|
1 |
|
ships same day |
114 |
292-9333
|
Holder |
$41.32
|
1 |
|
usually ships 30-75 days |
115 |
192-8744
|
Wheel |
$31.57
|
2 |
|
ships same day |
116 |
192-9212
|
Screw M8 x 40/22mm hex |
$4.35
|
2 |
|
usually ships 30-75 days |
117 |
192-9803
|
Bushing |
$2.52
|
2 |
|
ships same day |
118a |
292-9334
|
Dispenser tube 55 |
$155.87
|
1 |
(22 inch) |
ships same day |
118b |
292-9335
|
Dispenser tube 65 |
$144.44
|
1 |
(26 inch) |
ships same day |
119a |
292-9336
|
Dispenser channel |
$55.63
|
1 |
(22 inch) |
ships same day |
119b |
292-9337
|
Dispenser channel |
$54.82
|
1 |
(26 inch) |
ships same day |
120 |
292-9338
|
Water connector |
$10.38
|
2 |
|
ships same day |
121 |
292-9266
|
O-ring |
$2.44
|
2 |
|
ships same day |
122 |
192-0563
|
Nut M6 self-locking |
$2.44
|
4 |
|
ships same day |
123 |
292-9339
|
Clamp |
$5.98
|
2 |
|
ships same day |
124 |
192-1571
|
Screw M50 x 16mm |
$2.44
|
4 |
|
ships same day |
125 |
292-9314
|
T-nipple |
$5.98
|
1 |
|
ships same day |
126a |
192-0404
|
Wire reinforced hose (sold by the inch) |
$0.99
|
7 in |
|
ships same day |
126b |
192-0404
|
Wire reinforced hose (sold by the inch) |
$0.99
|
7 in |
|
ships same day |
127 |
192-0400
|
Wire reinforced hose (sold by the inch) |
$0.99
|
13 in |
|
ships same day |
128a |
292-9340
|
Coarse dirt container |
$39.63
|
1 |
(22 inch) |
usually ships 30-75 days |
128b |
292-9341
|
Coarse dirt container |
$39.15
|
1 |
(26 inch) |
ships same day |
129 |
292-9342
|
Locking plate |
$2.76
|
1 |
|
ships same day |
130a |
292-9343
|
Brush housing |
$71.80
|
1 |
|
ships same day |
130b |
292-9344
|
Brush housing |
$72.52
|
1 |
(26 inch) |
ships same day |
