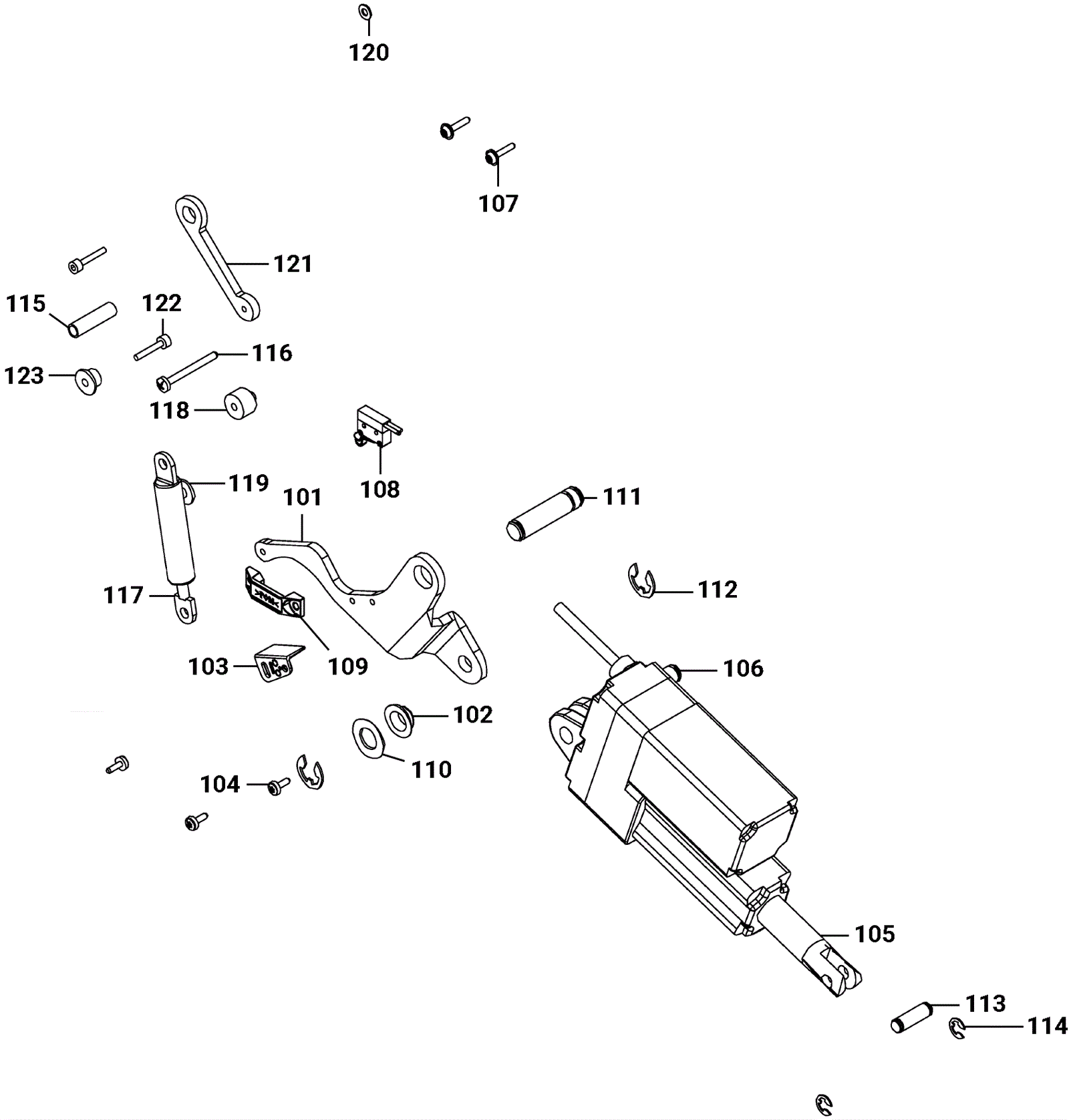

ULTIMAXX Tool Lowering Assembly - EBU

#PartDescriptionPriceReqNotesAvailability
101 292-9254 Lever $26.26 1 ships same day
102 192-9790 Slide bearing $2.44 1 ships same day
103 292-9255 Angle bracket Call for price 1 usually ships 30-75 days
104 192-6347 Screw M4 x 10mm self tapping form $2.44 3 usually ships 30-75 days
105 292-9256 Linear drive $312.21 1 usually ships 30-75 days
106 292-9257 Bolt $8.79 1 usually ships 30-75 days
107 192-1595 Screw M40 x 16mm torx head $2.44 2 ships same day
108 292-9247 Microswitch $35.89 1 ships same day
109 292-9146 Holder $2.44 1 ships same day
110 292-9258 Washer $2.20 1 usually ships 30-75 days
111 292-9210 Bolt $9.47 1 ships same day
112 192-2775 Snap ring for shaft $2.68 2 usually ships 30-75 days
113 192-9183 Axle $8.01 1 usually ships 30-75 days
114 192-0840 Snap ring $2.44 2 ships same day
115 292-9259 Bushing $8.75 1 (disc) ships same day
116 192-6292 Screw for plastic KA 50 x 40 $4.59 1 (disc) ships same day
117 292-9250 Gas spring strut $61.17 1 (disc) ships same day
118 292-9260 Flanged bushing Call for price 1 (disc) usually ships 30-75 days
119 292-9249 Flanged bushing Call for price 1 (disc) usually ships 30-75 days
120 192-1195 Washer M4 $2.44 1 (disc) ships same day
121 292-9261 Lever $11.23 1 (disc) ships same day
122 192-1105 Screw M4 x 20mm socket head $2.44 2 (disc) usually ships 1-5 days
123 292-9262 Flanged bushing Call for price 1 (disc) usually ships 30-75 days
N/S 192-0086 Snap ring $2.44 2 ships same day
