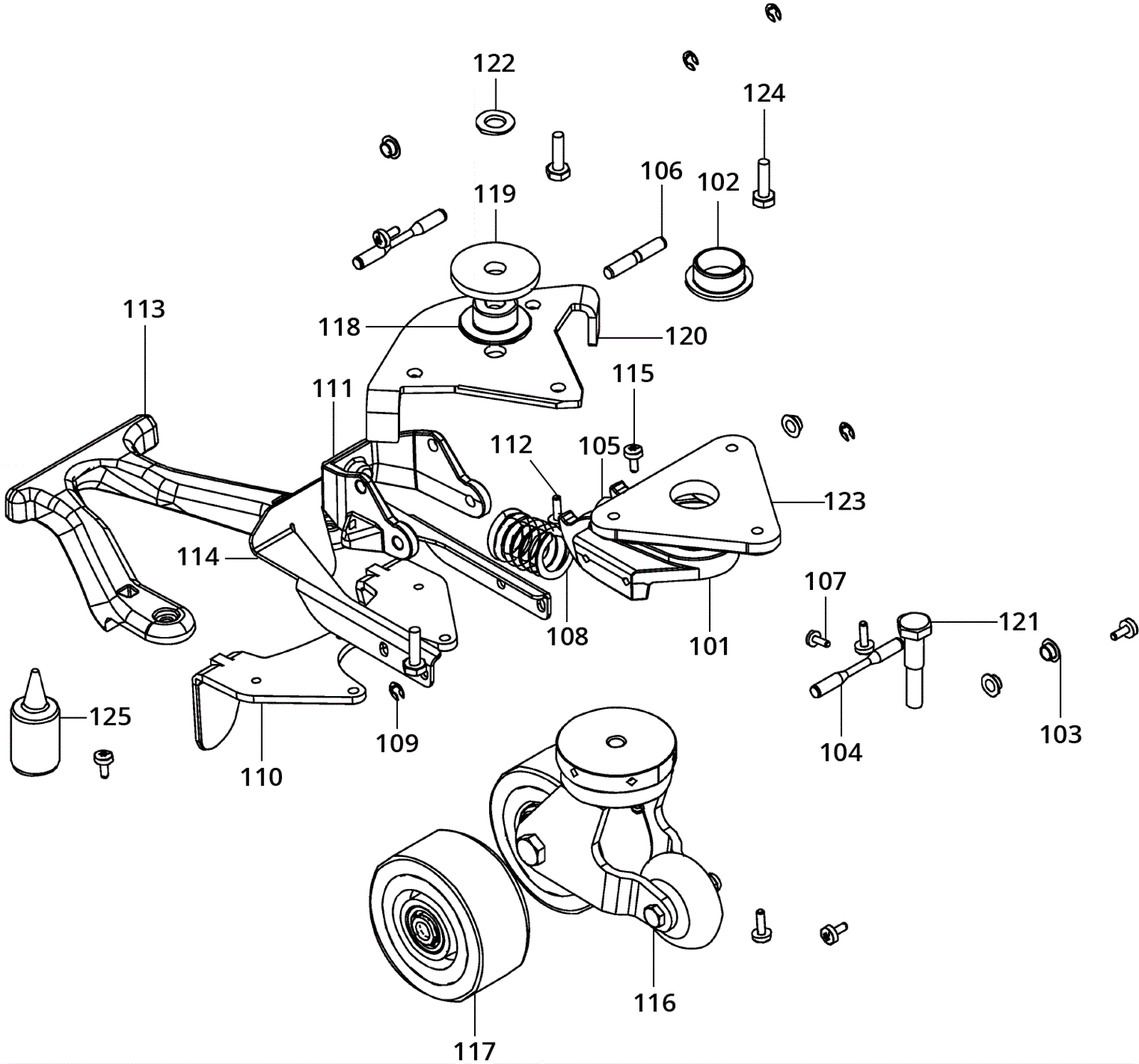

ULTIMAXX Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
101 292-9229 Swinging arm $22.98 1 ships same day
102 192-9507 Slide bearing $6.61 1 ships same day
103 192-6448 Slide bearing $6.74 4 ships same day
104 292-9230 Bolt $10.47 2 usually ships 17-21 days
105 292-9231 Flange bolt $26.66 1 ships same day
106 292-9232 Bolt $10.38 1 ships same day
107 192-0101 Screw M5 x 12mm self tapping form $2.56 1 ships same day
108 192-9508 Pressure spring $12.44 1 usually ships 17-21 days
109 192-0840 Snap ring $2.56 4 ships same day
110 292-9233 Squeegee Holder $43.29 1 ships same day
111 292-9234 Articulation $19.00 1 ships same day
112 292-5130 Screw M6-1 x 16mm torx $3.80 3 ships same day
113 292-9235 Pedal $20.90 1 ships same day
114 292-9236 Plate $29.30 1 ships same day
115 192-9592 Screw M6 x 12mm self threading $3.03 6 usually ships 17-21 days
116 192-9000 Caster wheel assembly (rust) $122.69 1 ships same day
117 292-9238 Wheel $93.90 1 ships same day
118 192-9530 Bushing $20.33 1 ships same day
119 292-9239 Washer $22.83 1 ships same day
120a 292-9411 Plate $26.93 1 (1900) ships same day
120b 292-9240 Plate Call for price 1 (2900) usually ships 17-21 days
121 192-4218 Screw M12 x 30mm hex head $2.56 1 ships same day
122 192-1050 Washer $3.80 1 usually ships 17-21 days
123 292-9241 Plate $45.00 1 ships same day
124 192-0822 Screw M8 x 25 hex head $3.47 3 usually ships 17-21 days
125 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
