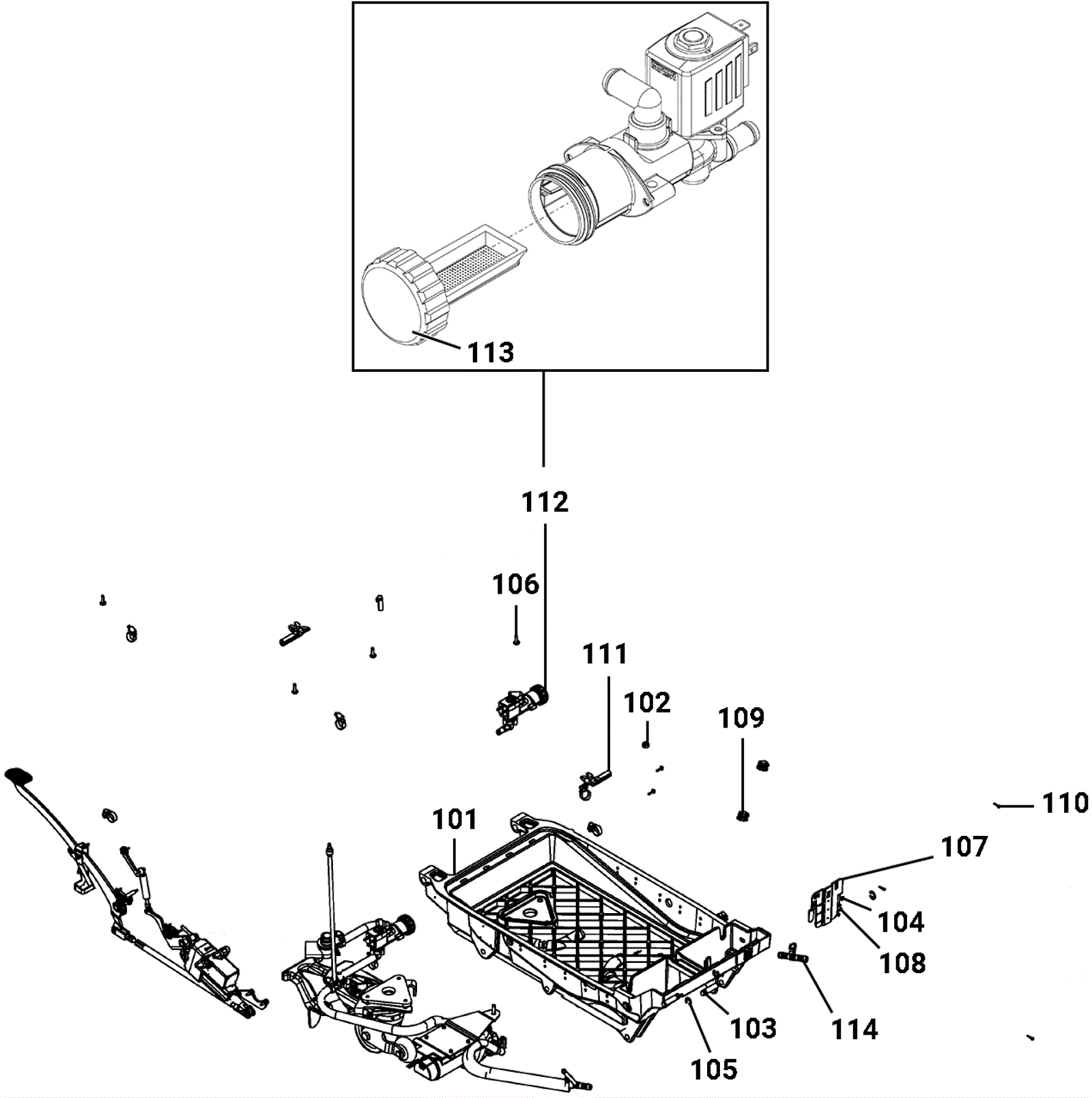

| # | Part | Description | Price | Req | Notes | Availability |
|---|
101 |
292-9209
|
Chassis |
$372.65
|
1 |
|
ships same day |
102 |
192-0510
|
Nut M8 self locking |
$2.44
|
1 |
(performance) |
ships same day |
103 |
292-9210
|
Bolt |
$9.47
|
3 |
|
ships same day |
104 |
192-1595
|
Screw M40 x 16mm torx head |
$2.44
|
3 |
|
ships same day |
105 |
192-2775
|
Snap ring for shaft |
$2.68
|
6 |
|
usually ships 30-75 days |
106 |
192-1561
|
Screw 60 x 20 torx head |
$2.44
|
4 |
|
ships same day |
107 |
292-9211
|
Plate |
$21.24
|
1 |
|
ships same day |
108 |
292-5568
|
Connection block |
$8.99
|
1 |
|
usually ships 30-75 days |
109 |
192-2895
|
2 way connection block |
$2.44
|
2 |
|
usually ships 30-75 days |
110 |
192-9692
|
Screw M3 x 16mm |
$2.44
|
3 |
|
usually ships 1-5 days |
111 |
292-9213
|
Bracket |
$9.65
|
2 |
|
ships same day |
112 |
192-9276
|
Solenoid and filter assembly |
$296.90
|
1 |
(includes 113) |
ships same day |
113 |
292-0082
|
Filter kit |
$11.11
|
1 |
|
ships same day |
114 |
192-9542
|
T-nipple |
$7.91
|
1 |
|
ships same day |
N/S |
292-9214
|
Wire harness |
$50.50
|
1 |
|
ships same day |
N/S |
292-9215
|
Wire harness |
$155.39
|
1 |
|
usually ships 30-75 days |
N/S |
292-9216
|
Drive electronics wire harness |
$19.98
|
1 |
(performance) |
ships same day |
N/S |
292-9217
|
Intellidose wire harness |
$28.45
|
1 |
(performance) |
ships same day |
N/S |
292-9218
|
Wire harness |
$30.53
|
1 |
|
usually ships 30-75 days |
N/S |
192-0102
|
7 3/4 inch cable tie |
$2.44
|
15 |
|
usually ships 30-75 days |
N/S |
192-0334
|
Hose clamp |
$3.26
|
1 |
|
usually ships 12-29 days |
