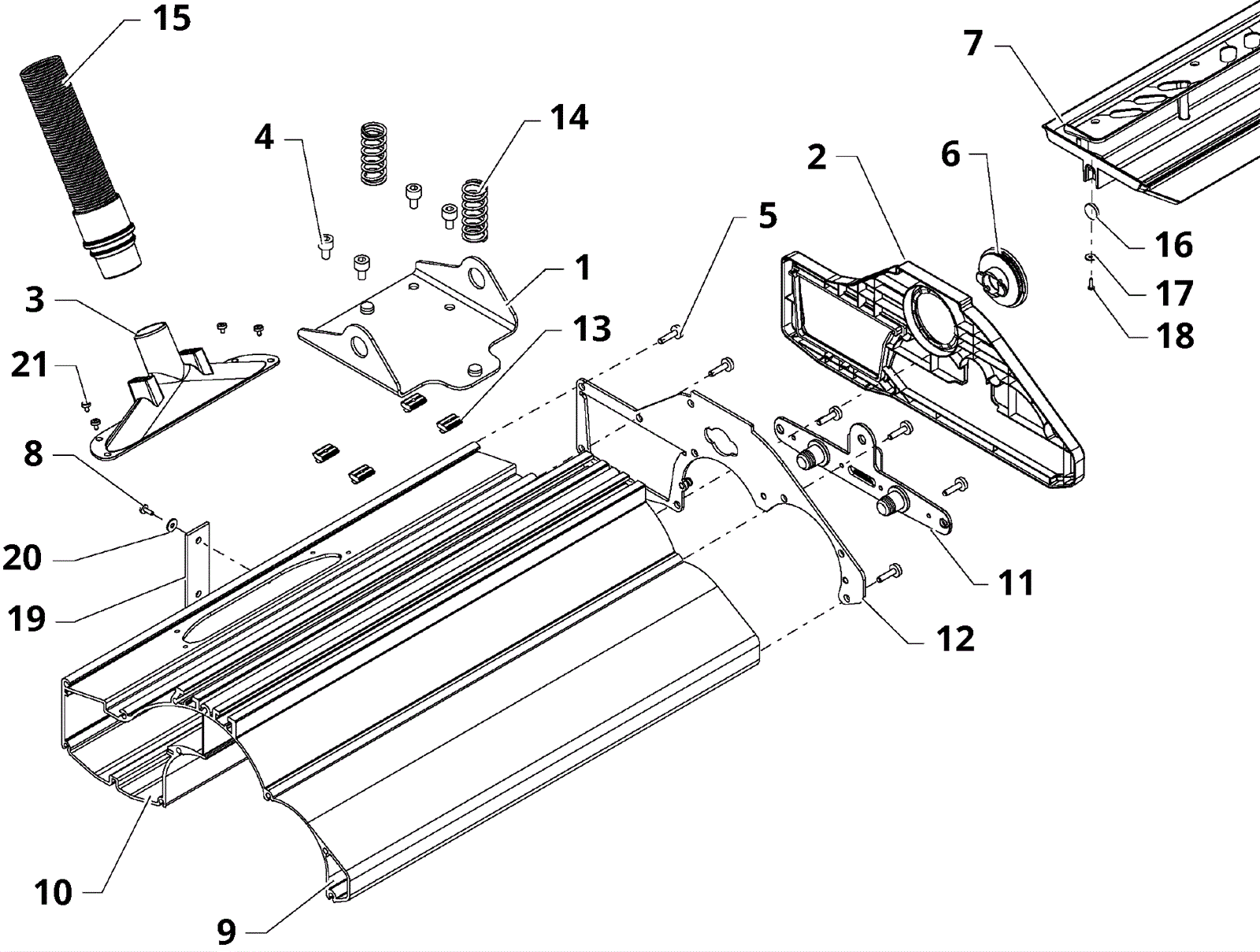

AERO 3500 Brush Drive Part 2 Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-5778 Holder plate $82.98 1 usually ships 30-75 days
2 292-5779 Cover $28.94 1 usually ships 30-75 days
3 292-5780 Hose socket $13.19 1 usually ships 30-75 days
4 192-0364 Screw M8 x 12mm socket head $2.52 4 ships same day
5 292-0182 Screw M6 x 20mm $4.15 9 usually ships 30-75 days
6 292-5781 Latch $5.93 1 usually ships 30-75 days
7 292-5782 Coarse dirt container $77.12 1 usually ships 30-75 days
8 192-6347 Screw M4 x 10mm self tapping form $2.44 1 usually ships 30-75 days
9 292-5783 Profile $113.92 1 usually ships 30-75 days
10 292-5784 Profile $173.58 1 usually ships 30-75 days
11 292-5785 Brush base plate $190.80 1 usually ships 30-75 days
12 292-5786 Side plate $95.32 1 usually ships 30-75 days
13 292-5787 Slot nut M8 $4.59 4 usually ships 30-75 days
14 292-0221 Pressure spring $2.44 2 usually ships 30-75 days
15 292-8504 Flexible hose $41.47 1 ships same day
16 292-0939 Magnet Call for price 1 usually ships 30-75 days
17 192-0674 Washer $2.44 1 usually ships 30-75 days
18 192-6282 Screw KA 30 x 10 $3.54 1 ships same day
19 192-9786 Strap $3.12 1 usually ships 30-75 days
20 192-0149 Washer $2.44 1 ships same day
21 192-1140 Screw M4 x 8mm self tapping form $2.44 4 ships same day
N/S 192-5666 Pressure spring $2.44 1 usually ships 1-5 days
