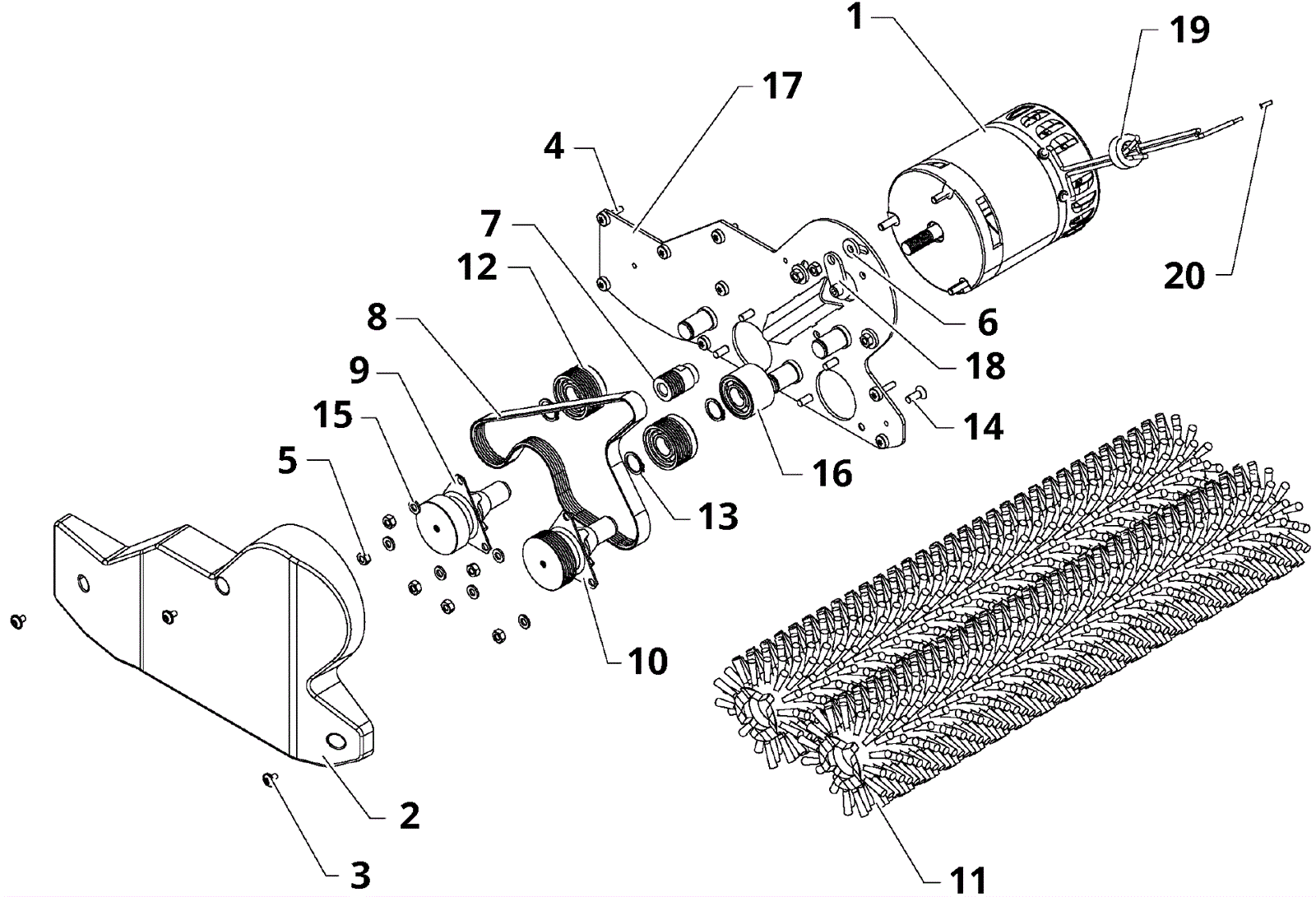

AERO 3500 Brush Drive Part 1 Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-5078 24V brush motor with noise suppression $474.97 1 ships same day
2 292-5770 Cover $29.62 1 usually ships 30-75 days
3 292-0597 Screw M5 x 8mm raised cheese head screw $2.44 3 ships same day
4 292-0182 Screw M6 x 20mm $4.15 9 usually ships 30-75 days
5 999-1308 Nut M6-1 hex stainless steel $0.99 9 ships same day
6 192-0067 Washer 4 x 17 x 3 $2.44 3 ships same day
7 292-5771 Poly-V pulley $18.68 1 usually ships 30-75 days
8 192-3391 Drive belt $22.46 1 ships same day
9 292-8697 Coupling $149.40 1 usually ships 30-75 days
10 292-5773 Coupling $150.62 1 usually ships 30-75 days
11 292-5790 Roller brush $258.73 2 ships same day
12 292-5774 Roller $53.60 2 ships same day
13 192-6039 Retaining ring $2.44 3 ships same day
14 192-0157 Screw M6 x 16mm countersunk head cap $6.18 6 ships same day
15 192-0964 Washer $2.44 6 ships same day
16 292-5775 Roller $52.02 1 usually ships 30-75 days
17 292-5776 Support $153.73 1 usually ships 30-75 days
18 292-5777 Belt tensioner $12.53 1 usually ships 30-75 days
19 192-0712 Coil with toric core $6.79 1 usually ships 30-75 days
