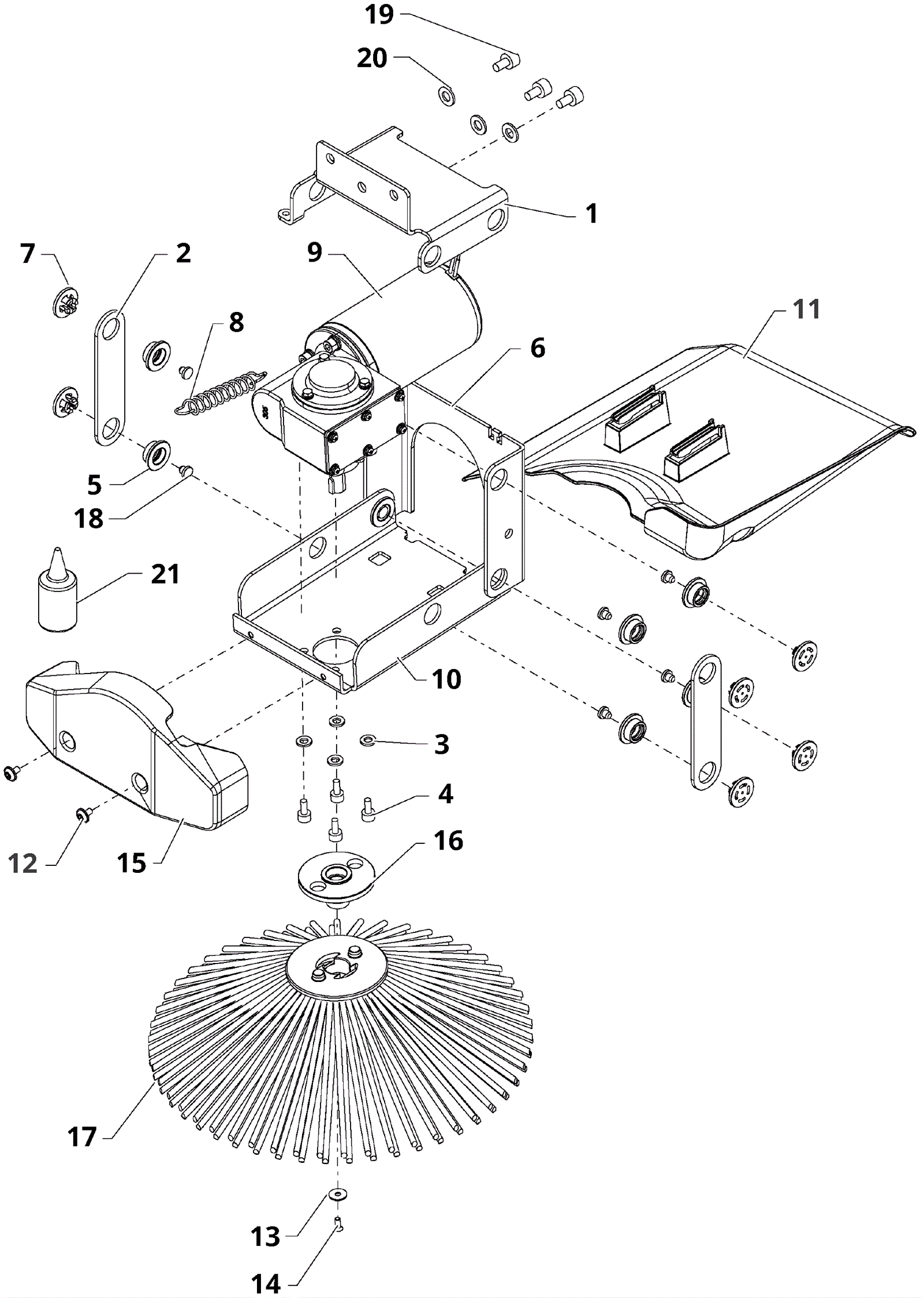

AERO 3500 Lever Offset Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-5763 Support $32.60 1 ships same day
2 292-5764 Lever $7.03 2 usually ships 30-75 days
3 192-0200 Washer M6 $3.12 4 ships same day
4 192-0506 Screw M6 x 12mm socket head $2.44 4 usually ships 30-75 days
5 292-5747 Bearing bush $2.44 8 ships same day
6 292-5765 Holder $67.11 1 usually ships 30-75 days
7 292-5748 Locking clip $2.44 8 ships same day
8 192-1092 Tension spring $4.76 1 usually ships 30-75 days
9 292-5766 24V motor $244.40 1 ships same day
10 292-5767 Support $47.08 1 usually ships 30-75 days
11 292-0938 Dust protection Call for price 1 usually ships 30-75 days
12 292-0597 Screw M5 x 8mm raised cheese head screw $2.44 2 ships same day
13 292-8695 Washer M4 countersunk Call for price 1 usually ships 30-75 days
14 192-8455 Screw M4 x 10 countersunk head $2.44 1 usually ships 30-75 days
15 292-5768 Cover $21.49 1 usually ships 30-75 days
16 292-5769 Flange $31.33 1 usually ships 30-75 days
17 292-5789 Side broom $78.65 1 ships same day
18 292-5751 Lock pin $2.44 8 ships same day
19 192-0364 Screw M8 x 12mm socket head $2.52 3 ships same day
20 192-0105 Washer M8 $2.44 3 ships same day
21 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
