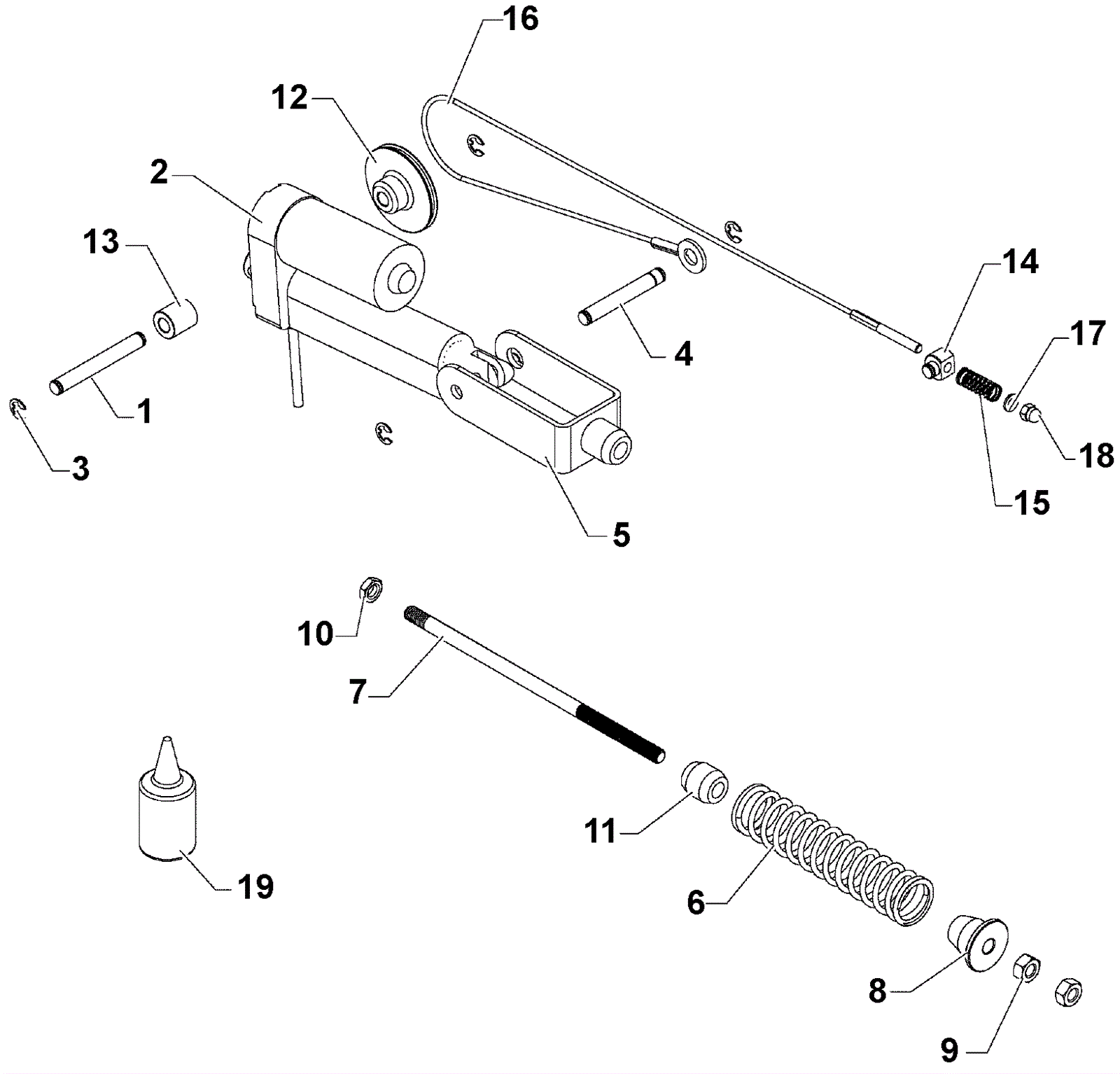

AERO 3500 Lowering Unit 2 Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-5753 Bolt $13.75 1 usually ships 30-75 days
2 192-9185 Squeegee actuator $366.48 1 usually ships 30-75 days
3 192-0840 Snap ring $2.44 4 ships same day
4 292-5754 Bolt $16.56 1 ships same day
5 292-5755 Holder $61.37 1 usually ships 30-75 days
6 192-5687 Pressure spring $10.63 1 ships same day
7 292-5756 Threaded rod M8 x 200 $18.02 1 usually ships 30-75 days
8 292-5757 Bushing $16.24 1 usually ships 30-75 days
9 192-0347 Nut M8 hex $0.89 2 ships same day
10 192-0240 Nut M8 hex $2.44 1 usually ships 30-75 days
11 292-5758 Bushing $12.69 1 usually ships 30-75 days
12 292-5759 Pulley $20.34 1 usually ships 30-75 days
13 292-5760 Bushing $8.91 1 usually ships 30-75 days
14 292-5761 Holder $19.49 1 usually ships 30-75 days
15 192-1585 Pressure spring $5.37 1 ships same day
16 292-5762 Rope (metal) $21.44 1 usually ships 30-75 days
17 192-0880 Washer M5 $0.89 1 ships same day
18 192-2625 Nut M5 cap $2.44 1 usually ships 30-75 days
19 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
N/S 192-0973 3 1/4 inch cable tie $2.44 1 usually ships 30-75 days
