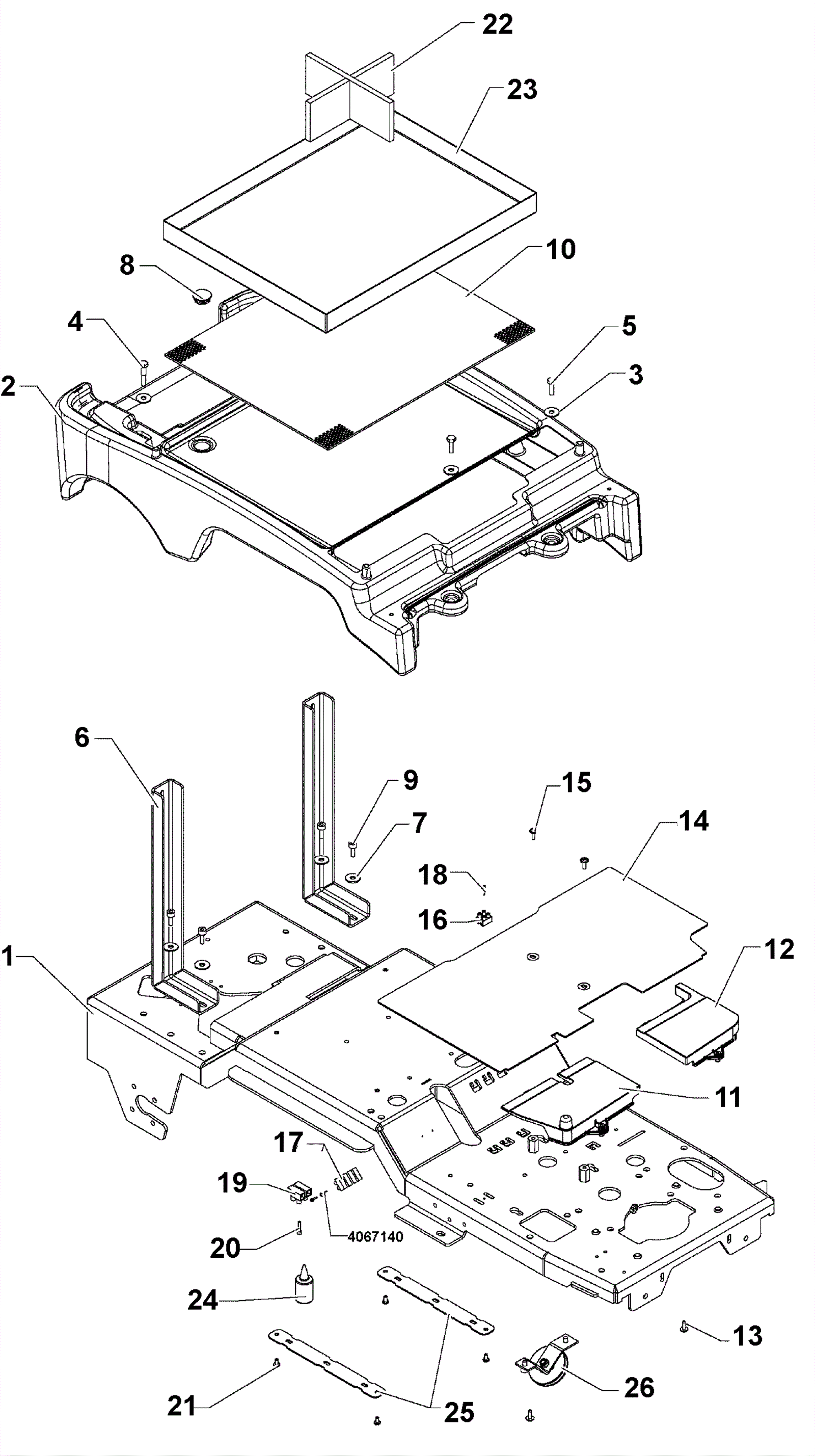

AERO 3500 Lower Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-5482 Chassis $806.94 1 usually ships 1-5 days
2 292-5493 Platform $443.42 1 usually ships 1-5 days
3 192-0604 Washer M8 $2.44 4 ships same day
4 192-9212 Screw M8 x 40/22mm hex $4.35 2 ships same day
5 192-0822 Screw M8 x 25 hex head $3.30 2 usually ships 30-75 days
6 292-5494 Support $43.22 2 usually ships 1-5 days
7 192-0604 Washer M8 $2.44 4 ships same day
8 292-5495 Plug $2.44 2 usually ships 1-5 days
9 192-0036 Screw M8 x 20mm socket head $2.44 4 ships same day
10 292-5496 Anti-slip mat $29.92 1 usually ships 1-5 days
11 292-5497 Cover $7.33 1 usually ships 1-5 days
12 292-5498 Cover $6.47 1 usually ships 1-5 days
13 192-0968 Screw KA 60 x 16 $4.40 2 ships same day
14 292-5499 Cover $101.59 1 usually ships 1-5 days
15 292-5492 Screw M6 x 16 cheese head $2.44 2 usually ships 30-75 days
16 192-2895 2 way connection block $2.44 1 usually ships 30-75 days
17 192-0260 2-way connection block $2.81 2 ships same day
18 192-0054 Screw M3 x 16mm raised cheese head $4.76 3 ships same day
19 192-0731 2 way connection block $7.33 1 usually ships 30-75 days
20 192-1105 Screw M4 x 20mm socket head $2.44 1 usually ships 1-5 days
21 292-5209 Bolt M6 x 10 hex head socket $2.44 4 usually ships 30-75 days
22 292-4050 Foam insert $16.36 1 usually ships 30-75 days
23 292-4051 Battery tray $491.21 1 (optional) usually ships 30-75 days
24 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
25 292-5742 Cable hook $11.35 2 usually ships 30-75 days
26 292-5743 Pulley $40.05 1 usually ships 30-75 days
N/S 192-0102 7 3/4 inch cable tie $2.44 24 usually ships 30-75 days
