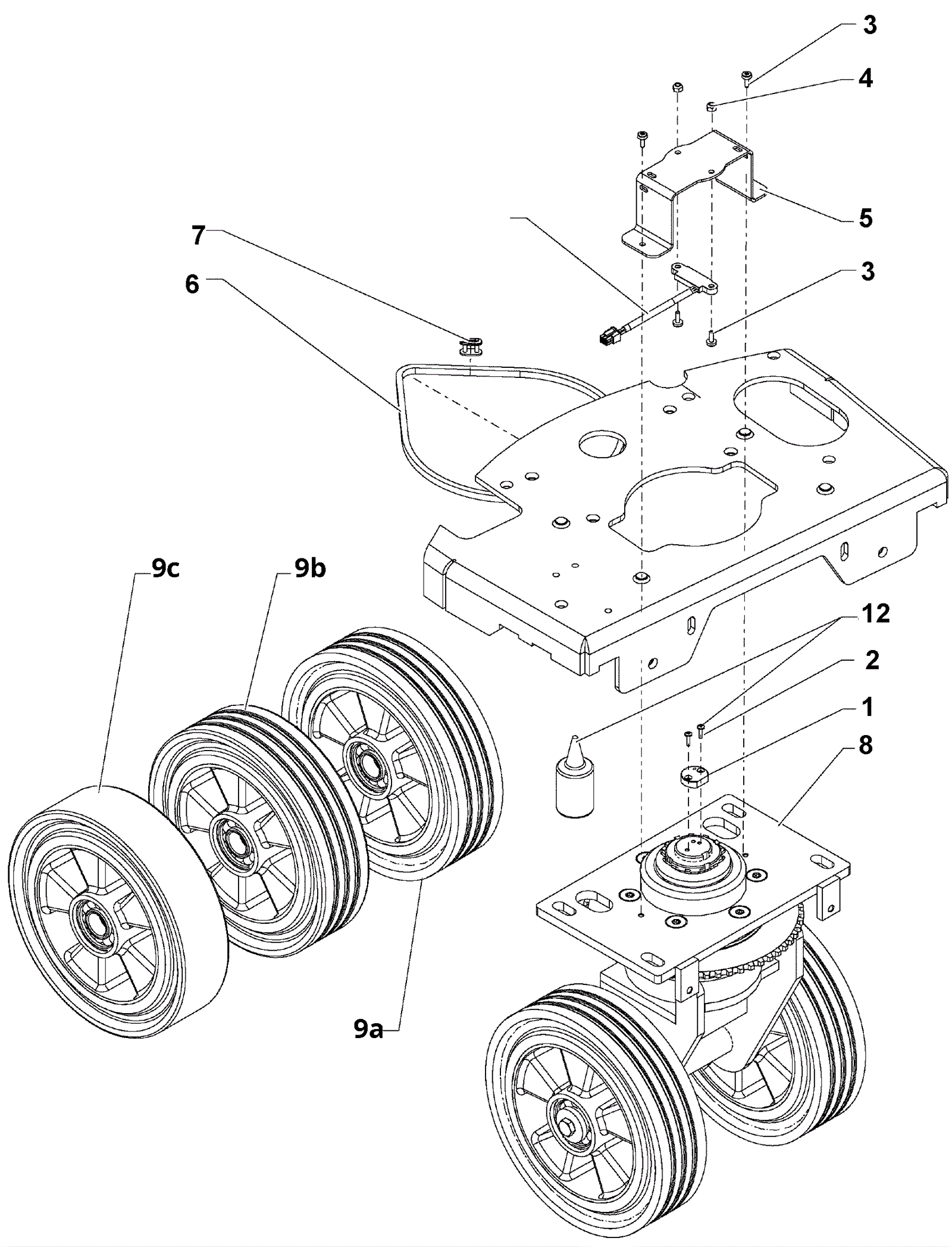

AERO 3500 Guidance Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-8485 Sensor $257.43 1 usually ships 17-21 days
2 192-0003 Screw M3 x 10mm raised head $1.13 2 ships same day
3 192-6347 Screw M4 x 10mm self tapping form $2.56 4 usually ships 17-21 days
4 192-0235 Nut M4 self locking $2.56 2 ships same day
5 292-5485 Holder $14.87 1 usually ships 17-21 days
6 292-8484 Roller chain 3/8 x 7/32-61 inch $22.18 1 usually ships 17-21 days
7 192-1217 3/8 inch chain master link $2.56 1 usually ships 17-21 days
8 292-5483 Steering Unit $1,464.41 1 usually ships 17-21 days
9a 192-1080 Wheel $214.87 2 (standard) ships same day
9b 292-8482 Wheel (brown) $196.54 2 (optional) usually ships 17-21 days
9c 292-8483 Wheel (red) $178.08 2 (optional) usually ships 17-21 days
12 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
