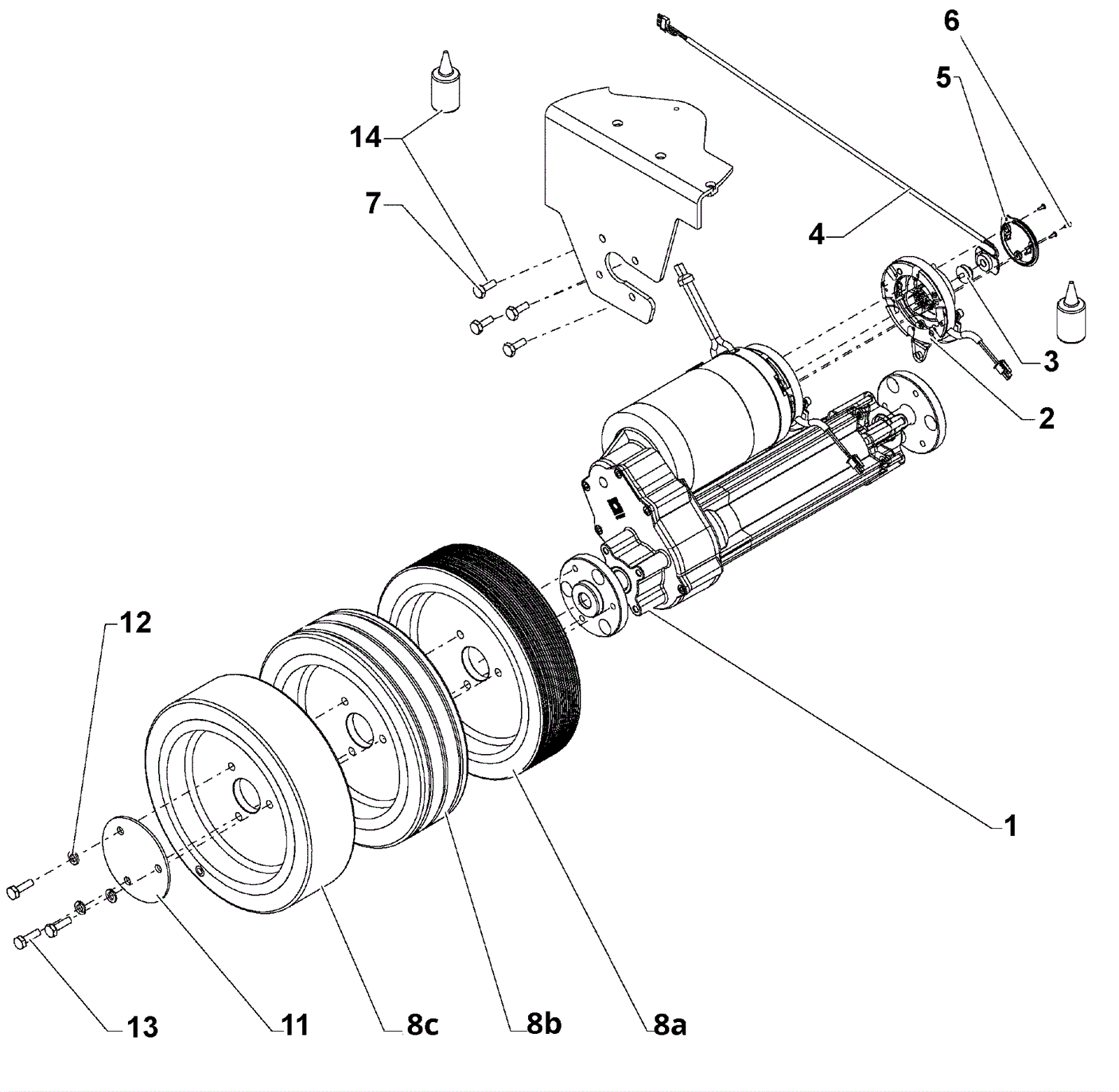

AERO 3500 Drive Unit Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-8491 Drive unit $1,613.84 1 usually ships 30-75 days
2 292-5501 Brake set $539.24 1 (see Bake Set Assembly for complete breakdown) usually ships 30-75 days
3 292-8495 Magnet $40.12 1 usually ships 30-75 days
4 292-8496 Rotary encoder $89.62 1 usually ships 30-75 days
5 292-5599 Cover $4.35 1 usually ships 30-75 days
6 192-6283 Screw for plastic KA 30 x 8 $2.44 3 usually ships 1-5 days
7 192-0153 Screw M8 x 20mm hex head $0.89 8 ships same day
8a 292-8492 Drive wheel (gray) $192.80 2 (standard) ships same day
8b 292-8493 Drive wheel (brown) $545.13 2 (optional) usually ships 30-75 days
8c 292-8494 Drive wheel (red) $487.82 2 (optional) usually ships 30-75 days
11 292-5484 Disc $7.15 2 usually ships 1-5 days
12 192-1180 Spring washer $2.44 6 usually ships 30-75 days
13 192-0822 Screw M8 x 25 hex head $3.30 6 usually ships 30-75 days
14 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
N/S 192-1153 Toroidal choke $9.41 1 usually ships 30-75 days
