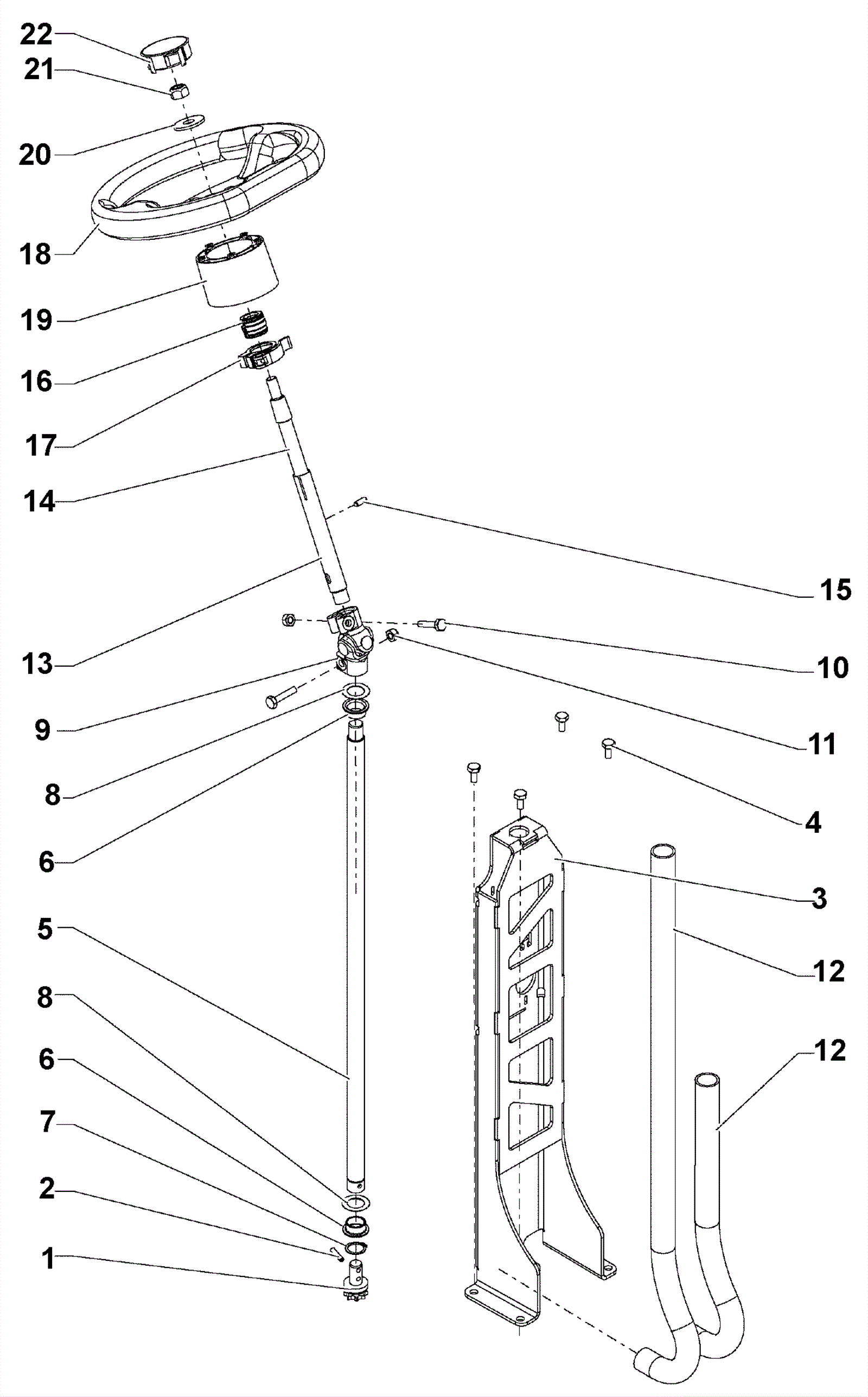

AERO 3500 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-1075 Chain wheel $49.04 1 usually ships 30-75 days
2 192-1076 Extensible pin 5 x 24 $5.69 1 usually ships 30-75 days
3 292-5486 Support $149.20 1 usually ships 1-5 days
4 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 4 ships same day
5 292-5487 Rod $85.67 1 usually ships 1-5 days
6 192-1044 Slide bearing $3.37 2 ships same day
7 192-0807 Retaining ring $2.44 1 ships same day
8 192-1077 Spacer disc $2.44 2 usually ships 30-75 days
9 192-1069 Cross joint $121.80 1 usually ships 30-75 days
10 192-0835 Screw M8 x 35mm hex head $3.74 2 usually ships 30-75 days
11 192-0510 Nut M8 self locking $2.44 2 ships same day
12a 192-9834 Hose (sold by the inch) $0.55 33 inches usually ships 30-75 days
12b 192-9834 Hose (sold by the inch) $0.55 17 inches usually ships 30-75 days
13 292-5533 Pipe $42.37 1 usually ships 1-5 days
14 292-5534 Rod $35.65 1 ships same day
15 292-5535 Heavy type dowel pin $2.44 1 ships same day
16 292-5536 Bushing $4.22 1 ships same day
17 292-5537 Clamp $13.43 1 ships same day
18 292-5538 Steering wheel $200.20 1 usually ships 30-75 days
19 292-5539 Hub assembly $41.22 1 usually ships 30-75 days
20 192-1078 Washer $0.89 1 ships same day
21 192-1049 Nut M12 self locking $3.66 1 ships same day
22 292-5540 Cover $9.23 1 usually ships 1-5 days
