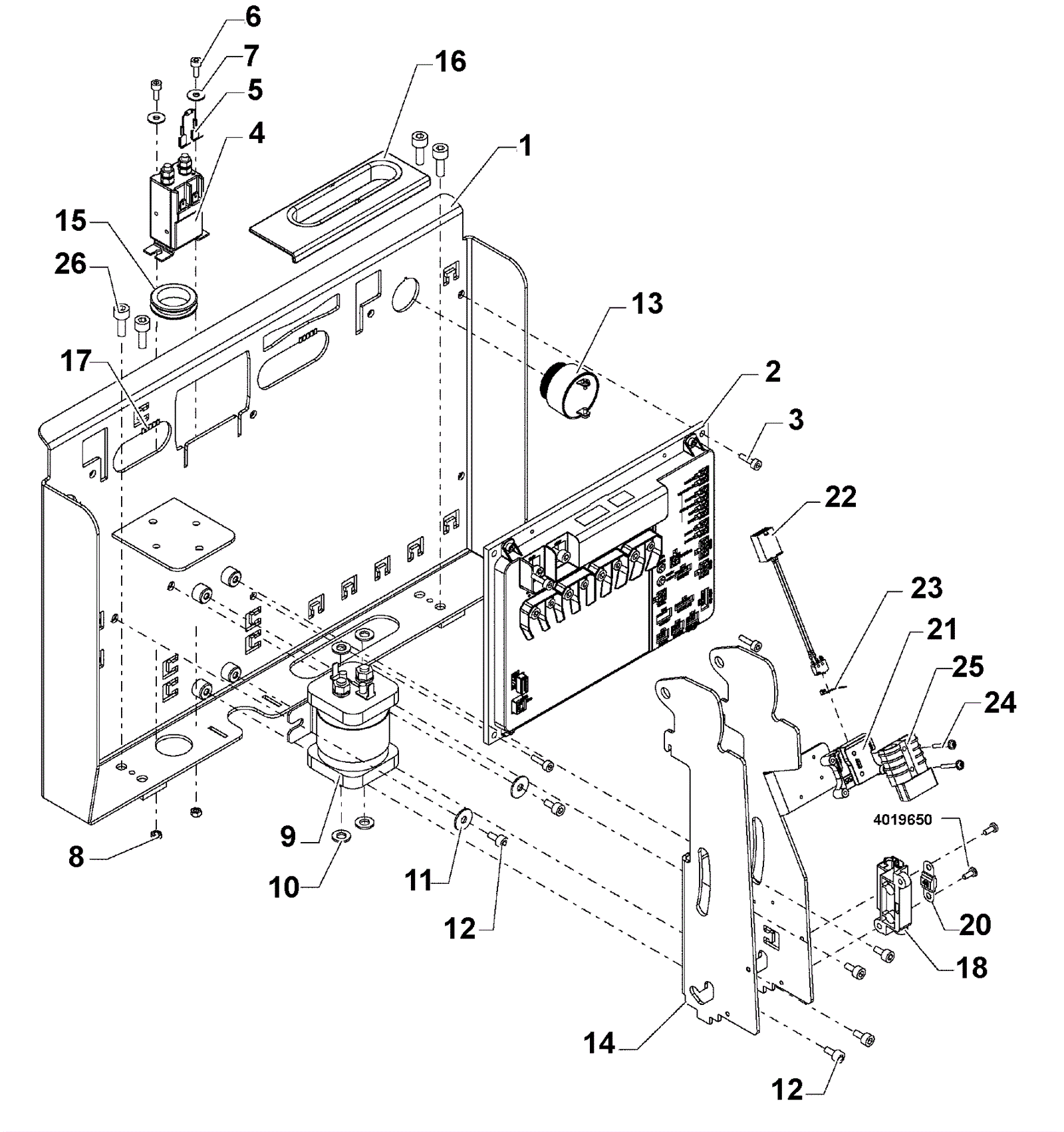

AERO 3500 Electrical Parts Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-5582 Support $256.23 1 usually ships 1-5 days
2 292-8478 Electronics $1,643.17 1 usually ships 30-75 days
3 192-6479 Screw M5 x 16mm socket head $2.44 4 usually ships 30-75 days
4 292-5738 24V relay $84.49 1 ships same day
5 292-5739 Diode $10.21 1 usually ships 30-75 days
6 192-0077 Screw M5 x 12mm socket head $0.89 2 ships same day
7 192-0091 Washer $0.89 2 ships same day
8 192-0340 Nut M5 hex self locking $2.93 2 usually ships 30-75 days
9 292-8479 Drive relay $326.74 1 usually ships 30-75 days
10 192-0105 Washer M8 $2.44 4 ships same day
11 192-7421 Washer $2.44 2 usually ships 30-75 days
12 192-0506 Screw M6 x 12mm socket head $2.44 6 usually ships 30-75 days
13 292-0681 Horn $20.58 1 usually ships 30-75 days
14 292-0937 Support (OBSOLETE) Call for price 1 usually ships 30-75 days
15 192-1082 Grommet $2.44 1 usually ships 30-75 days
16 292-5583 Cable protection $4.76 1 usually ships 1-5 days
17a 192-9725 Bumper profile (sold by the inch) $17.17 8 inches usually ships 1-5 days
17b 192-9725 Bumper profile (sold by the inch) $17.17 7 inches usually ships 1-5 days
17c 192-9725 Bumper profile (sold by the inch) $17.17 7 inches usually ships 1-5 days
18 292-0680 Fuse holder $21.00 1 usually ships 30-75 days
19 192-0148 Screw M4 x 10mm raised cheese head $2.44 2 usually ships 30-75 days
20 192-1252 Fuse strip 40 amp $2.44 1 usually ships 30-75 days
21 292-5584 Support $2.44 1 (non BMS) usually ships 1-5 days
22 292-5604 Cable $76.63 1 (non BMS) usually ships 30-75 days
23 192-8784 Switch lever $21.98 1 (non BMS) ships same day
24 292-5585 Screw M3 x 25 cheese head $2.68 2 (non BMS) usually ships 1-5 days
25 192-1266 50amp charger plug SB50 $5.47 1 ships same day
26 192-0036 Screw M8 x 20mm socket head $2.44 4 ships same day
N/S 192-0102 7 3/4 inch cable tie $2.44 10 usually ships 30-75 days
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 (non BMS) ships same day
