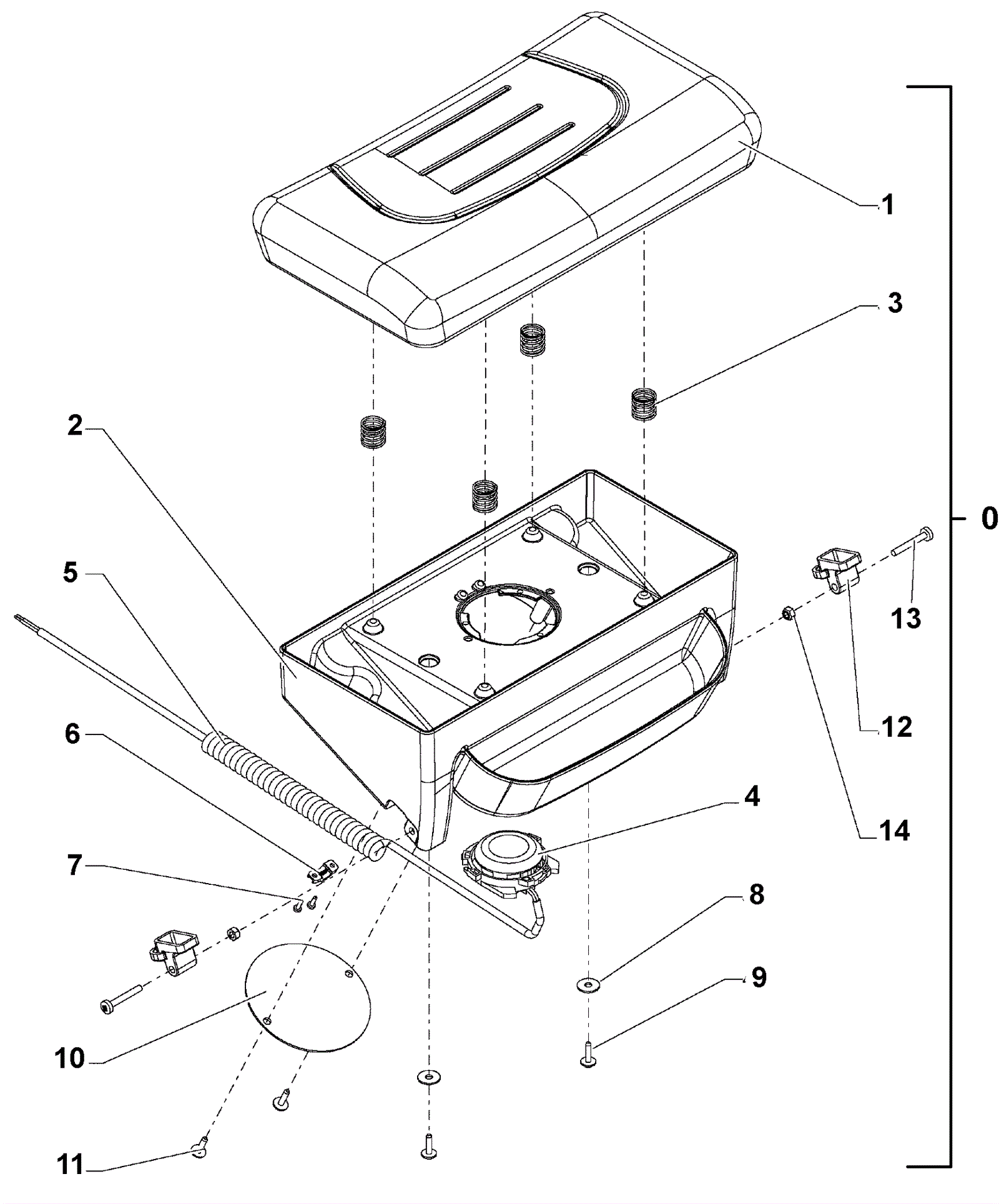

AERO 3500 Driver Seat Assembly

#PartDescriptionPriceReqNotesAvailability
0 292-4017 Seat assembly $495.68 1 (includes 1-14) ships same day
1 292-4018 Seat $289.33 1 usually ships 30-75 days
2 292-4019 Support $88.23 1 usually ships 30-75 days
3 292-4020 Pressure spring $2.44 4 usually ships 30-75 days
4 192-1191 Seat switch assembly $152.94 1 ships same day
5 292-8477 Spiral cable $27.67 1 usually ships 30-75 days
6 192-2496 Cable clamp $2.44 1 usually ships 30-75 days
7 192-1066 Screw 40 x 12 $4.28 2 usually ships 30-75 days
8 192-7421 Washer $2.44 2 usually ships 30-75 days
9 192-1561 Screw 60 x 20 torx head $2.44 2 ships same day
10 292-4021 Cover $3.30 1 usually ships 30-75 days
11 192-1561 Screw 60 x 20 torx head $2.44 2 ships same day
12 292-4022 Holder $3.42 2 usually ships 30-75 days
13 192-5935 Screw M6 x 40 raised cheese head $3.25 2 ships same day
14 192-6345 Nut M6 self locking $2.44 2 ships same day
