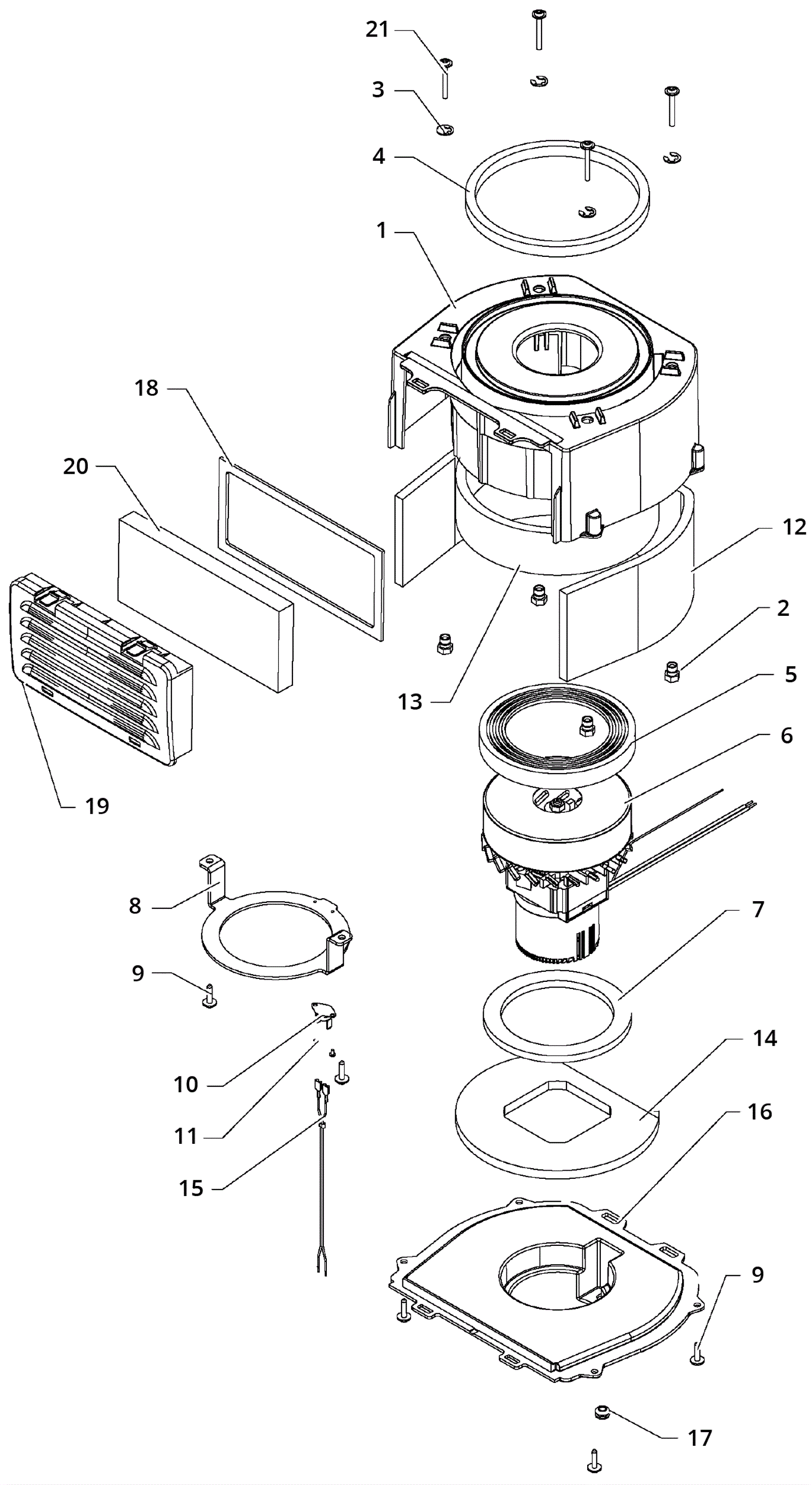

AERO 3500 Vacuum Unit Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-5721 Suction plate $36.93 1 usually ships 17-21 days
2 292-5722 Nut M6 $16.67 4 usually ships 17-21 days
3 192-0086 Snap ring $2.56 4 ships same day
4 292-0936 Gasket (OBSOLETE) Call for price 1 usually ships 17-21 days
5 192-1562 Guide ring $7.77 1 ships same day
6 292-5723 24V vacuum motor $267.05 1 usually ships 17-21 days
7 292-5724 Sealing ring 110/144x5 $6.23 1 usually ships 17-21 days
8 292-5725 Holder $40.38 1 usually ships 17-21 days
9 192-1561 Screw 60 x 20 torx head $2.56 6 ships same day
10 292-5726 Thermo switch $14.87 1 usually ships 17-21 days
11 192-0013 Screw 3 x 5 raised head $4.82 2 usually ships 17-21 days
12 292-5727 Noise absorbing $6.11 1 usually ships 17-21 days
13 292-5728 Noise absorbing $3.28 1 usually ships 17-21 days
14 292-5729 Noise absorbing $5.97 1 usually ships 17-21 days
15 292-5794 Wire harness $2.56 1 usually ships 17-21 days
16 292-5730 Cover $23.60 1 usually ships 17-21 days
17 192-0626 Grommet $5.72 1 usually ships 1-5 days
18 292-5731 Gasket $6.03 1 usually ships 17-21 days
19 292-5732 Cover $10.59 1 usually ships 17-21 days
20 292-5801 Exhaust filter $9.65 1 usually ships 17-21 days
21 292-5795 Screw M6 x 40 flange socket head $2.56 4 usually ships 17-21 days
N/S 292-5803 Hepa filter $118.07 1 usually ships 17-21 days
