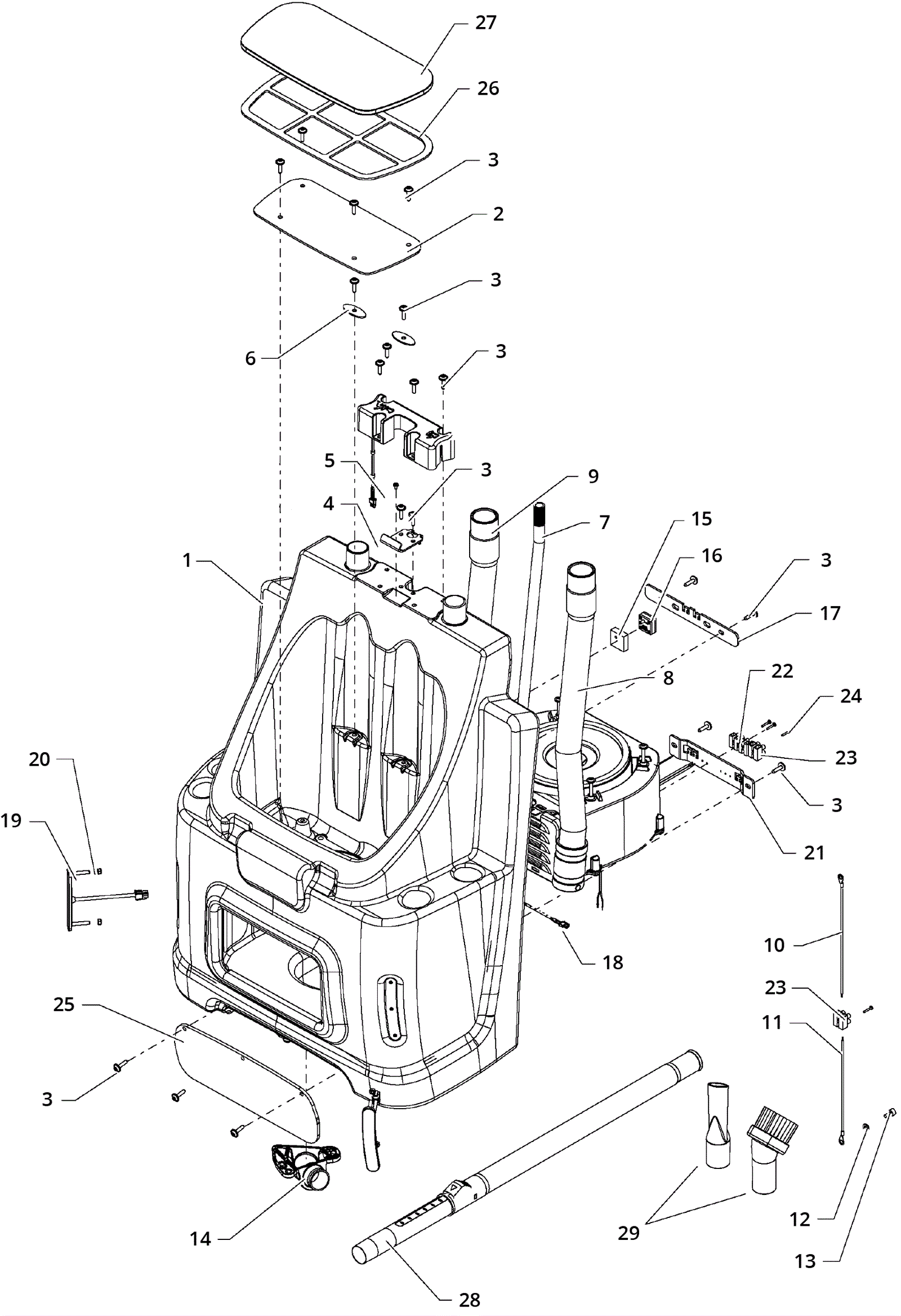

AERO 3500 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-5709 Tank $530.89 1 usually ships 30-75 days
2 292-5710 Plate $25.16 1 usually ships 30-75 days
3 192-1561 Screw 60 x 20 torx head $2.44 20 ships same day
4 292-5711 Hook $25.84 1 usually ships 30-75 days
5 192-1140 Screw M4 x 8mm self tapping form $2.44 1 ships same day
6 292-8691 Plate $2.44 2 usually ships 30-75 days
7 292-5791 Hose $2.44 1 foot usually ships 30-75 days
8 292-5713 Suction hose $75.82 1 ships same day
9 292-5714 Suction hose $36.15 1 usually ships 30-75 days
10 292-0934 18AWG wire (OBSOLETE) Call for price 1 usually ships 30-75 days
11 292-0935 18AWG wire (OBSOLETE) Call for price 1 usually ships 30-75 days
12 192-0200 Washer M6 $3.12 1 ships same day
13 192-0506 Screw M6 x 12mm socket head $2.44 1 usually ships 30-75 days
14 292-5491 Hose socket $9.77 1 usually ships 30-75 days
15 292-5792 Gasket $9.03 1 usually ships 30-75 days
16 292-5715 Pressure sensor $140.86 1 usually ships 30-75 days
17 292-5716 Hose bracket $17.95 1 usually ships 30-75 days
18 292-5717 Wire harness $6.84 1 usually ships 30-75 days
19 292-0618 LED strip $99.02 2 usually ships 30-75 days
20 192-0340 Nut M5 hex self locking $2.93 4 usually ships 30-75 days
21 292-5718 Holder $38.78 1 usually ships 30-75 days
22 192-1224 4 way connection block $3.98 1 ships same day
23 192-0260 2-way connection block $2.81 2 ships same day
24 192-0054 Screw M3 x 16mm raised cheese head $4.76 4 ships same day
25 292-5719 Cover $20.10 1 usually ships 30-75 days
26 292-5720 Filter plate $44.40 1 usually ships 30-75 days
27 292-5793 Cloth filter (pkg of 5) $36.59 1 ships same day
28 292-4663 Telescopic wand $56.93 1 ships same day
29 292-4665 Crevice and dusting brush $28.45 1 ships same day
N/S 292-5712 Cord $3.00 4 foot usually ships 30-75 days
N/S 192-0102 7 3/4 inch cable tie $2.44 6 usually ships 30-75 days
