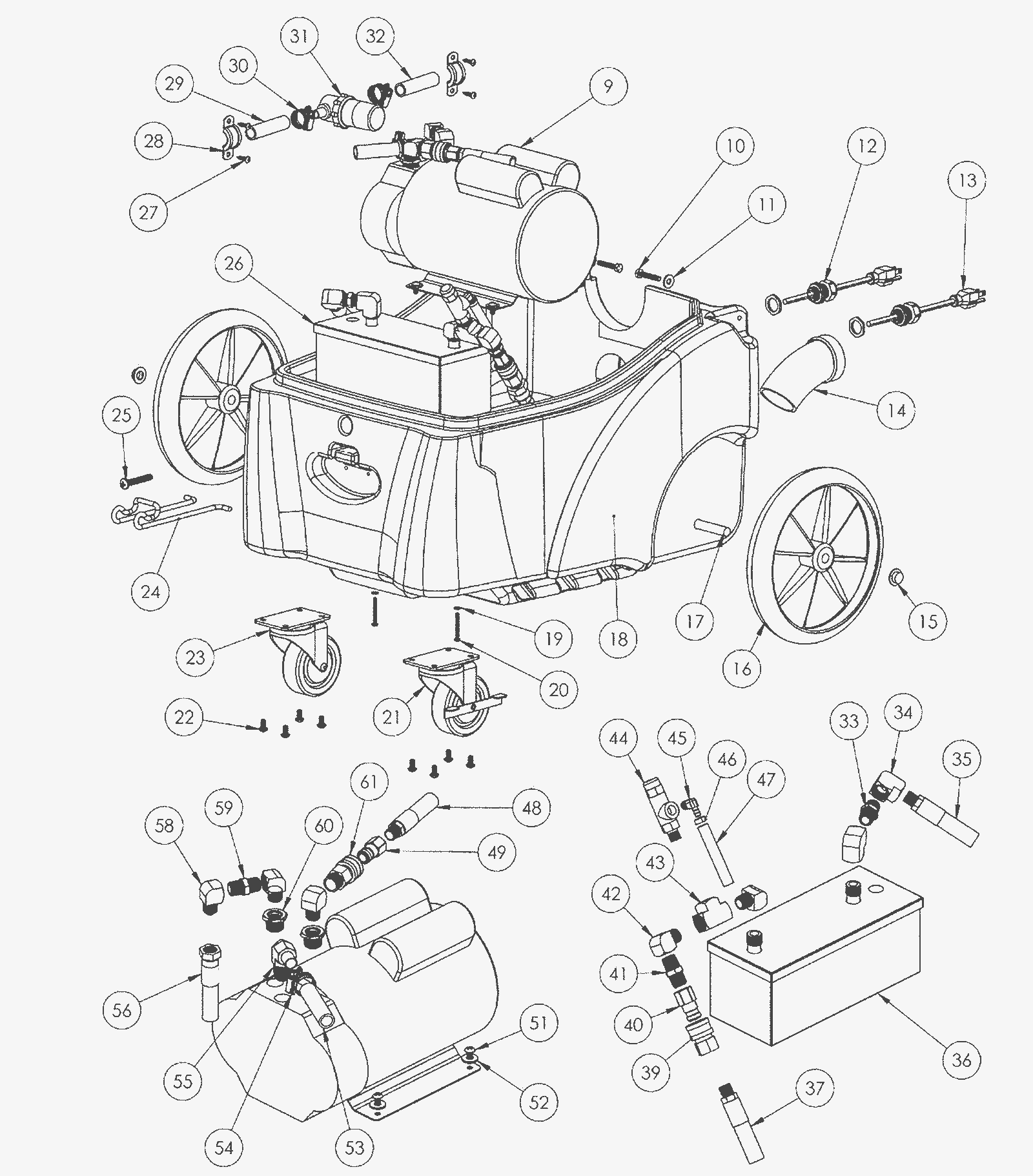

| # | Part | Description |
Req | Notes | Availability |
|---|
9 |
291-0001
|
500psi pump |
1 |
|
|
10 |
999-0109
|
Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated |
2 |
|
|
11 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
12 |
164-9285
|
Strain relief |
1 |
|
|
13 |
164-9286
|
Pig tail cord |
1 |
|
|
14 |
164-3550
|
Spout, drain gate |
1 |
|
|
15 |
164-8761
|
Axle cap |
2 |
|
|
16 |
164-9287
|
Wheel |
2 |
|
|
17 |
291-0019
|
Axle |
1 |
|
|
18 |
291-0003
|
Base 12 gallon (black) |
1 |
|
|
19 |
164-9280
|
Washer |
2 |
|
|
20 |
999-1631
|
Screw 10-32 x 1 1/2 pan head phillips stainless steel |
2 |
|
|
21 |
164-9290
|
Caster |
1 |
|
|
22 |
999-9123
|
Screw 1/4-20 x 1/2 round head phillips stainless steel |
8 |
|
|
23 |
164-9291
|
Caster |
1 |
|
|
24 |
291-0004
|
Lower hose hook |
1 |
|
|
25 |
999-1289
|
Screw 5/16-18 x 2 pan head stainless steel |
2 |
|
|
26 |
291-0020
|
Enclosure |
1 |
|
|
27 |
164-9295
|
Screw #12 x 1/2 phillips head sheet metal |
4 |
|
|
28 |
291-0021
|
Clamp 3/8 inch |
2 |
|
|
29 |
291-0022
|
Inlet hose 1/2 inch x 50 inch |
1 |
|
|
30 |
291-0023
|
3/4 inch clamp |
2 |
|
|
31 |
291-0024
|
Inline strainer |
1 |
|
|
32 |
291-0025
|
Hose 1/2 inch x 6 inch |
1 |
|
|
33 |
291-0026
|
Check valve 1/4 inch |
1 |
|
|
34 |
164-0550
|
90 degree elbow |
1 |
|
|
35 |
291-0028
|
Pluse 1/4 inch mpt x 1/4 inch fpt hose |
1 |
|
|
36 |
291-0029
|
Heater assembly |
1 |
|
|
37 |
291-0030
|
Pluse 1/4 inch mpt x 1/4 mpt inch hose |
1 |
|
|
39 |
291-0031
|
Straight 1/4 inch female QD |
1 |
|
|
40 |
291-0032
|
Straight 1/4 inch male QD |
1 |
|
|
41 |
164-9336
|
Pipe nipple fitting |
1 |
|
|
42 |
291-0012
|
1/4 inch street elbow brass |
1 |
|
|
43 |
291-0034
|
1/4 inch brass tee FNPT |
1 |
|
|
44 |
291-0035
|
1/4 inch side relief valve 700psi |
1 |
|
|
45 |
291-0036
|
1/4 inch hose barb x 1/4 inch 90 degree fitting bass |
1 |
|
|
46 |
291-0037
|
Clamp |
1 |
|
|
47 |
291-0038
|
Hose 1/4 inch x 33 1/4 inch (red) |
1 |
|
|
48 |
291-0039
|
46 inch pluse hose 1/4 inch mpt x 1/4 inch mpt |
1 |
|
|
49 |
291-0032
|
Straight 1/4 inch male QD |
1 |
|
|
51 |
999-9123
|
Screw 1/4-20 x 1/2 round head phillips stainless steel |
4 |
|
|
52 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
53 |
291-0025
|
Hose 1/2 inch x 6 inch |
1 |
|
|
54 |
291-0023
|
3/4 inch clamp |
1 |
|
|
55 |
291-0043
|
1/2 inch barb x 3/8 inch mpt 90 degree elbow |
1 |
|
|
56 |
291-0028
|
Pluse 1/4 inch mpt x 1/4 inch fpt hose |
1 |
|
|
58 |
291-0012
|
1/4 inch street elbow brass |
3 |
|
|
59 |
291-0045
|
Nipple 1/4 inch hex |
1 |
|
|
60 |
291-0046
|
Reducer bushing 3/8 inch npt x 1/4 inch npt |
2 |
|
|
61 |
291-0031
|
Straight 1/4 inch female QD |
1 |
|
|
