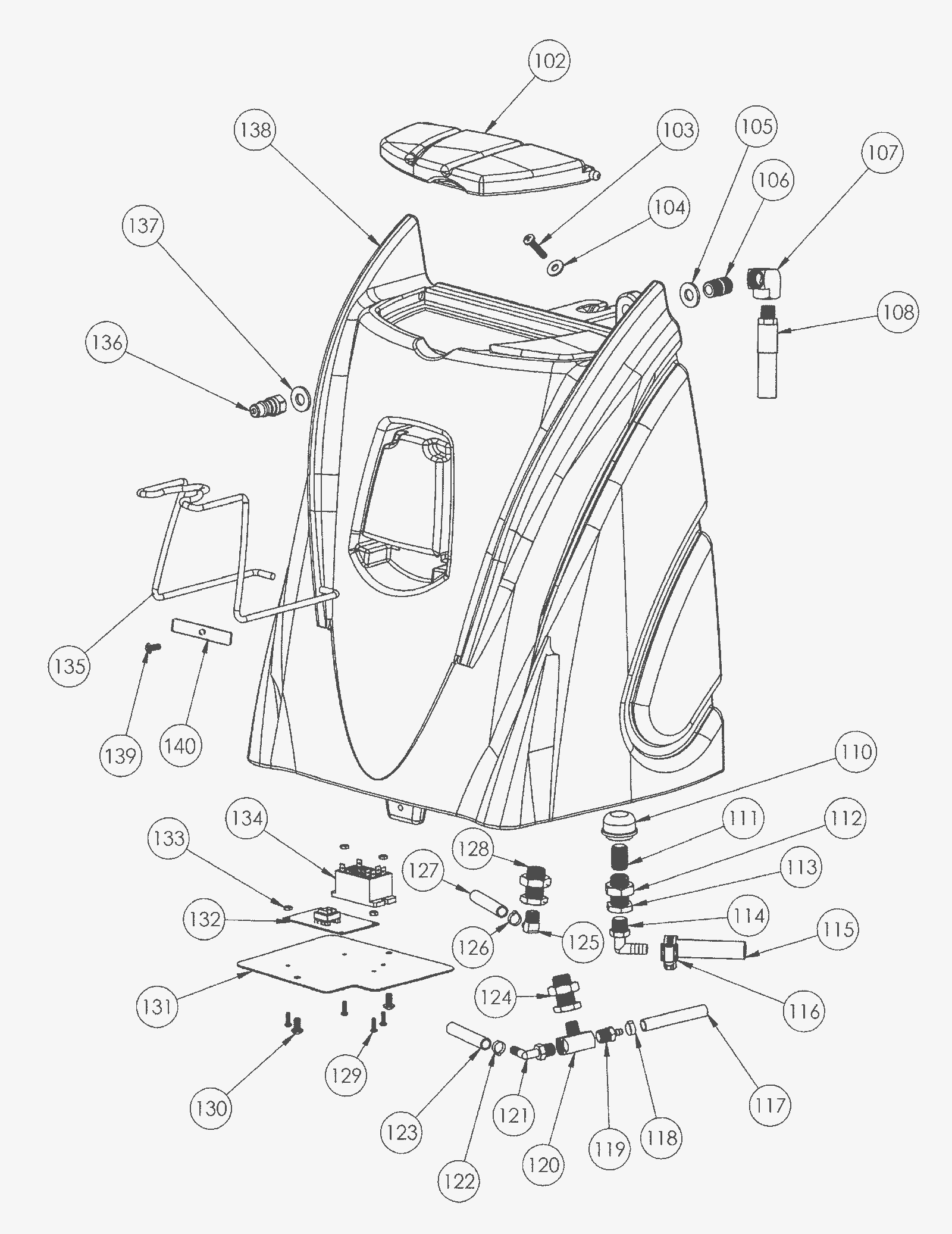

Solution Tank Assembly

#PartDescription ReqNotesAvailability
102 164-9335 Solution tank lid (black) 1
103 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated 1
104 999-0024 Washer 5/16 flat stainless steel 1
105 999-0114 Washer 1/2 SAE flat 1
106 164-9336 Pipe nipple fitting 1
107 164-0550 90 degree elbow 1
108 291-0030 Pluse 1/4 inch mpt x 1/4 mpt inch hose 1
110 164-9337 Filter 1
111 164-3614 Nipple, 1/8 pt 1
112 164-9338 Bulkhead fitting 1
113 164-9338 Bulkhead fitting 1
114 164-9339 Fitting 1
115 291-0022 Inlet hose 1/2 inch x 50 inch 1
116 291-0023 3/4 inch clamp 1
117 291-0038 Hose 1/4 inch x 33 1/4 inch (red) 1
118 291-0037 Clamp 1
119 291-0048 1/4 inch barb x 1/4 inch MNPT 90 degree fitting 1
120 291-0049 1/4 inch branch tee 1
121 291-0036 1/4 inch hose barb x 1/4 inch 90 degree fitting bass 1
122 291-0037 Clamp 1
123 291-0050 Hose 1/4 inch x 32 inch braided (clear) 1
124 164-9338 Bulkhead fitting 1
125 291-0036 1/4 inch hose barb x 1/4 inch 90 degree fitting bass 1
126 291-0037 Clamp 1
127 291-0051 Hose 1/4 inch x 31 inch braided (clear) 1
128 164-9338 Bulkhead fitting 1
129 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 4
130 999-9123 Screw 1/4-20 x 1/2 round head phillips stainless steel 2
131 164-9343 Cover 1
132 164-9344 120V dual circuit indicator 1
133 999-0195 Nut 6-32 hex plain 4
134 164-9345 Relay 1
135 164-9346 Hook 1
136 291-0012 1/4 inch street elbow brass 1
137 999-0114 Washer 1/2 SAE flat 1
138 164-9347 Solution tank (green) 1
139 999-9123 Screw 1/4-20 x 1/2 round head phillips stainless steel 1
140 164-9348 Plate 1
