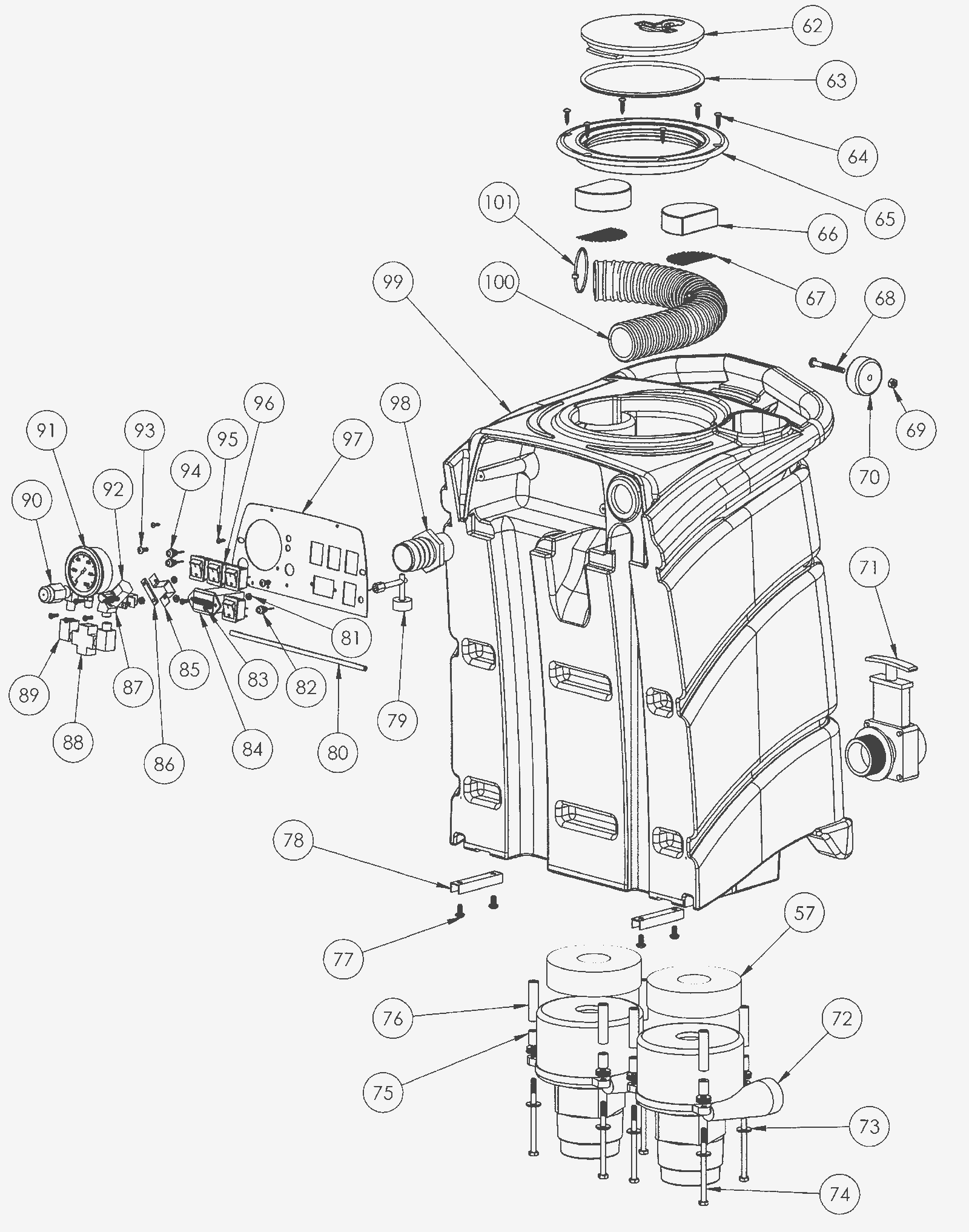

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
57 291-0018 Motor spacer 2
62 264-0006 6 inch recovey lid clear 1
63 291-0017 O-ring 1
64 164-9295 Screw #12 x 1/2 phillips head sheet metal 6
65 264-0006 6 inch recovey lid clear 1
66 164-9313 Filter 2
67 164-9463 Vacuum motor intake screen 2
68 999-1596 Screw 1/4-20 x 2 1/4 pan head phillips zinc 1
69 999-0190 Nut 1/4-20 hex plain finish 1
70 164-9315 Wheel 1
71 164-3499 Drain gate 1
72 291-0005 Vacuum motor 3 stage 2
73 999-0123 Washer 1/4 SAE flat zinc plated 6
74 999-0165 Bolt 1/4-20 x 4 hex head grade 5 zinc plated 6
75 164-9317 Spacer 6
76 164-9318 Spacer 6
77 999-9123 Screw 1/4-20 x 1/2 round head phillips stainless steel 4
78 164-9319 Bracket 2
79 164-9320 Float switch 1
80 164-9321 Control panel trim 1
81 999-0195 Nut 6-32 hex plain 2
82 164-9322 110V led light (red) 1
83 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 2
84 291-0006 Generator hour meter 1
85 291-0007 Gauge cluster bracket 1
86 291-0008 Spacer 1
87 291-0010 Fitting 1/4 street 45 degree 1
88 291-0011 1/4 inch femal cross brass 1
89 291-0012 1/4 inch street elbow brass 1
90 291-0013 600psi regulator 1
91 291-0014 1000psi gauge 1
92 291-0015 Ball valve 1/4 inch x 1/4 inch mini 1
93 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 2
94 164-9329 220V led light (green) 2
95 999-1882 Screw #6 x 1/2 inch pan head phillips stainless steel 2
96 164-9330 Rocker switch 4
97 164-9461 3 switch planel with gauge 1
98 164-3500 Hose barb 1 1/2 inch 1
99 291-0009 Recovery tank 1
100 164-9334 Hose 1
101 291-0016 7 inch zip tie 1
