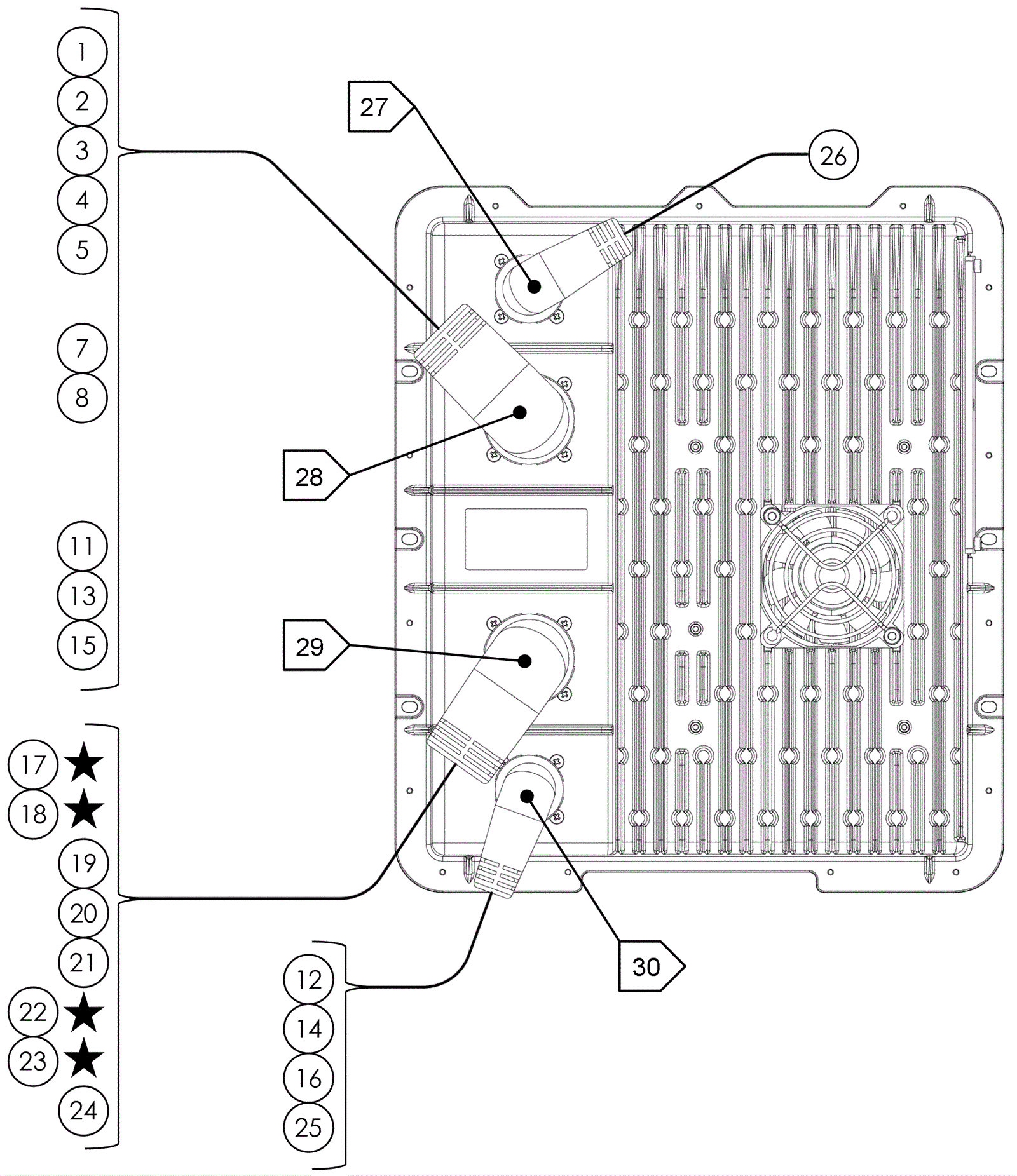

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
288-0070
|
Vehicle interface board |
1 |
|
|
2 |
288-0052
|
Modem |
1 |
|
|
3 |
288-0170
|
Slanted LIDAR |
1 |
(PWR) |
|
4 |
288-0170
|
Slanted LIDAR |
1 |
(ETH) |
|
5 |
288-0087
|
Turn signal blinker |
2 |
|
|
7 |
288-0099
|
60mm fan assembly |
1 |
|
|
8 |
288-0095
|
2D camera |
3 |
|
|
11 |
288-0094
|
Front 3D camera |
1 |
(ETH) |
|
12 |
288-0094
|
Front 3D camera |
1 |
(PWR) |
|
15 |
288-0180
|
Right hand O3X163 3D camera |
1 |
(ETH) |
|
16 |
288-0180
|
Right hand O3X163 3D camera |
1 |
(PWR) |
|
17 |
288-0067
|
Service port ethernet |
1 |
|
|
18 |
288-0178
|
Traction encoder with cable kit |
1 |
(Now includes encoder and cable) |
|
19 |
288-0042
|
Planar LIDAR (OBSOLETE) |
1 |
(PWR) (new lidar connections swivel see video) |
|
20 |
288-0042
|
Planar LIDAR (OBSOLETE) |
1 |
(ETH)(new lidar connections swivel see video) |
|
21 |
288-0137
|
Steering encoder |
1 |
|
|
22 |
278-0402
|
Emergency stop switch |
1 |
|
|
23 |
288-0054
|
Start-pause button assembly |
1 |
|
|
24 |
288-0038
|
Motor amplifier module V2 |
1 |
|
|
25 |
288-0104
|
Barrier block |
1 |
|
|
26 |
288-0049
|
Touch screen module |
1 |
|
|
27 |
278-1885
|
Housing frame |
1 |
|
|
28 |
288-0055
|
Up trunk harness |
1 |
|
|
29 |
288-0066
|
Down trunk harness |
1 |
|
|
30 |
288-0065
|
Power trunk harness |
1 |
|
|
N/S |
278-1931
|
Drive motor wire harness kit |
1 |
|
|
N/S |
288-0201
|
Front and rear turn signal harness |
1 |
|
|
