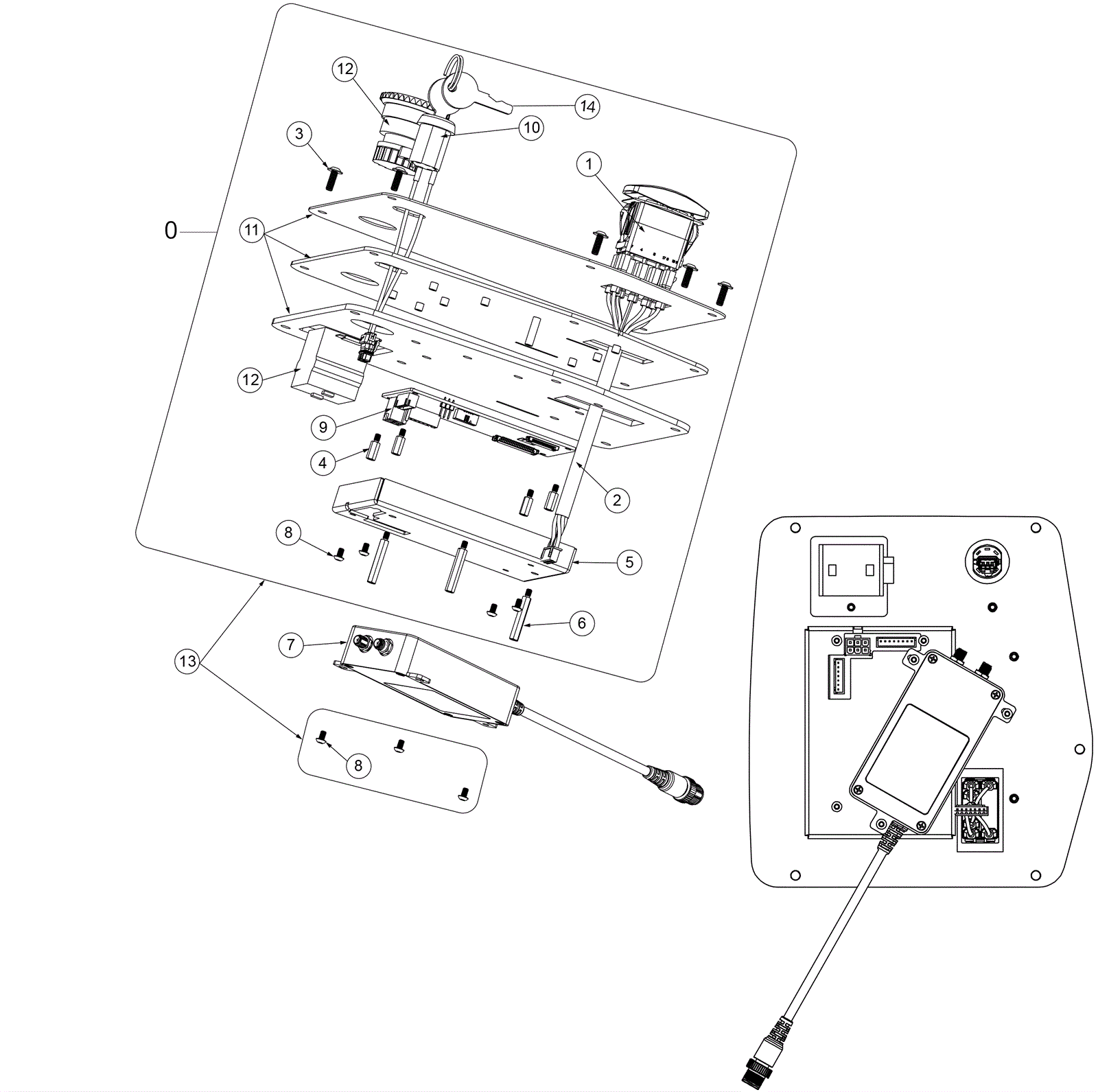

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
288-0172
|
Control panel assembly |
1 |
(includes 1-6, 8 and 10-12) (DOES NOT INCLUDE 7 and 9) |
|
1 |
288-0076
|
Toggle switch |
1 |
|
|
2 |
288-0193
|
Toggle switch cable |
1 |
|
|
3 |
999-0521
|
Screw M4-.7 x 12mm pan head phillips zinc |
5 |
|
|
4 |
288-0074
|
Standoff M3 x 10mm |
4 |
|
|
5 |
288-0073
|
VIB enclosure |
1 |
|
|
6 |
288-0072
|
Standoff M3 x 25mm |
3 |
|
|
7 |
288-0052
|
Modem |
1 |
|
|
8 |
999-9167
|
Screw M3-.5 x 5mm socket button cap |
1 |
|
|
9 |
288-0070
|
Vehicle interface board |
1 |
(replacing whole control panel limits damage to board in transit. Use 288-0053) |
|
10 |
288-0069
|
Key switch assembly (Brain only) |
1 |
|
|
11 |
288-0068
|
Control panel plate with seal and membrane |
1 |
|
|
12 |
278-0402
|
Emergency stop switch |
1 |
|
|
13 |
288-0053
|
Control panel replacement assembly |
1 |
(includes 1-6 and 8-10) |
|
14 |
278-0632
|
Key (pkg of 2) |
1 |
|
|
