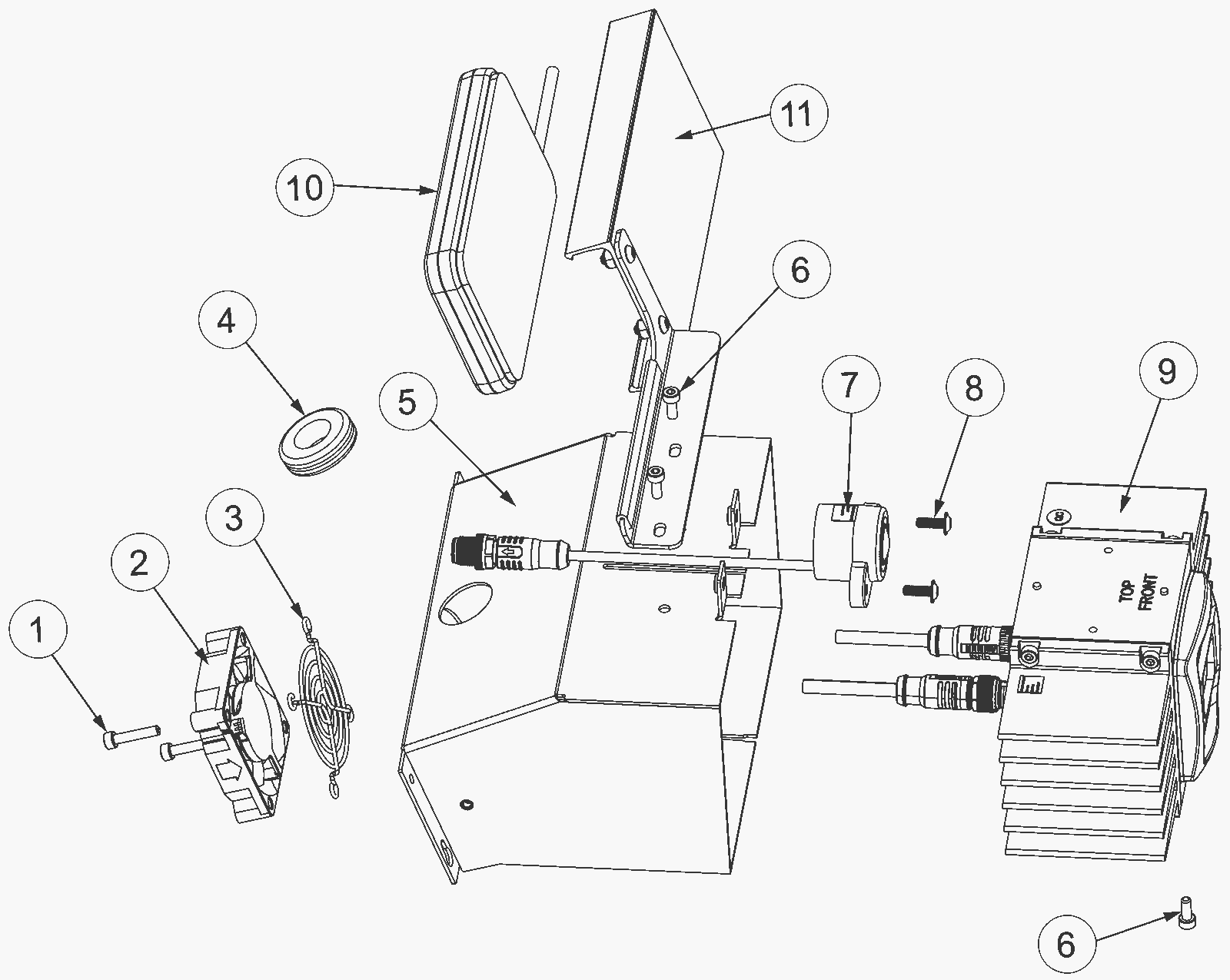

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-9166
|
Screw M4-.7 x 20mm socket cap stainless steel |
2 |
|
|
2 |
288-0099
|
60mm fan assembly |
1 |
|
|
3 |
288-0098
|
Finger guard |
1 |
|
|
4 |
288-0097
|
1 inch grommet |
1 |
|
|
5 |
288-0096
|
Housing bracket |
1 |
|
|
6 |
999-9162
|
Screw M4-.7 x 10mm socket cap stainless steel |
3 |
|
|
7 |
288-0095
|
2D camera |
1 |
|
|
8 |
999-0521
|
Screw M4-.7 x 12mm pan head phillips zinc |
2 |
|
|
9 |
288-0094
|
Front 3D camera |
1 |
|
|
10 |
288-0046
|
Antenna |
1 |
|
|
11 |
288-0047
|
Antenna bracket kit |
1 |
|
|
