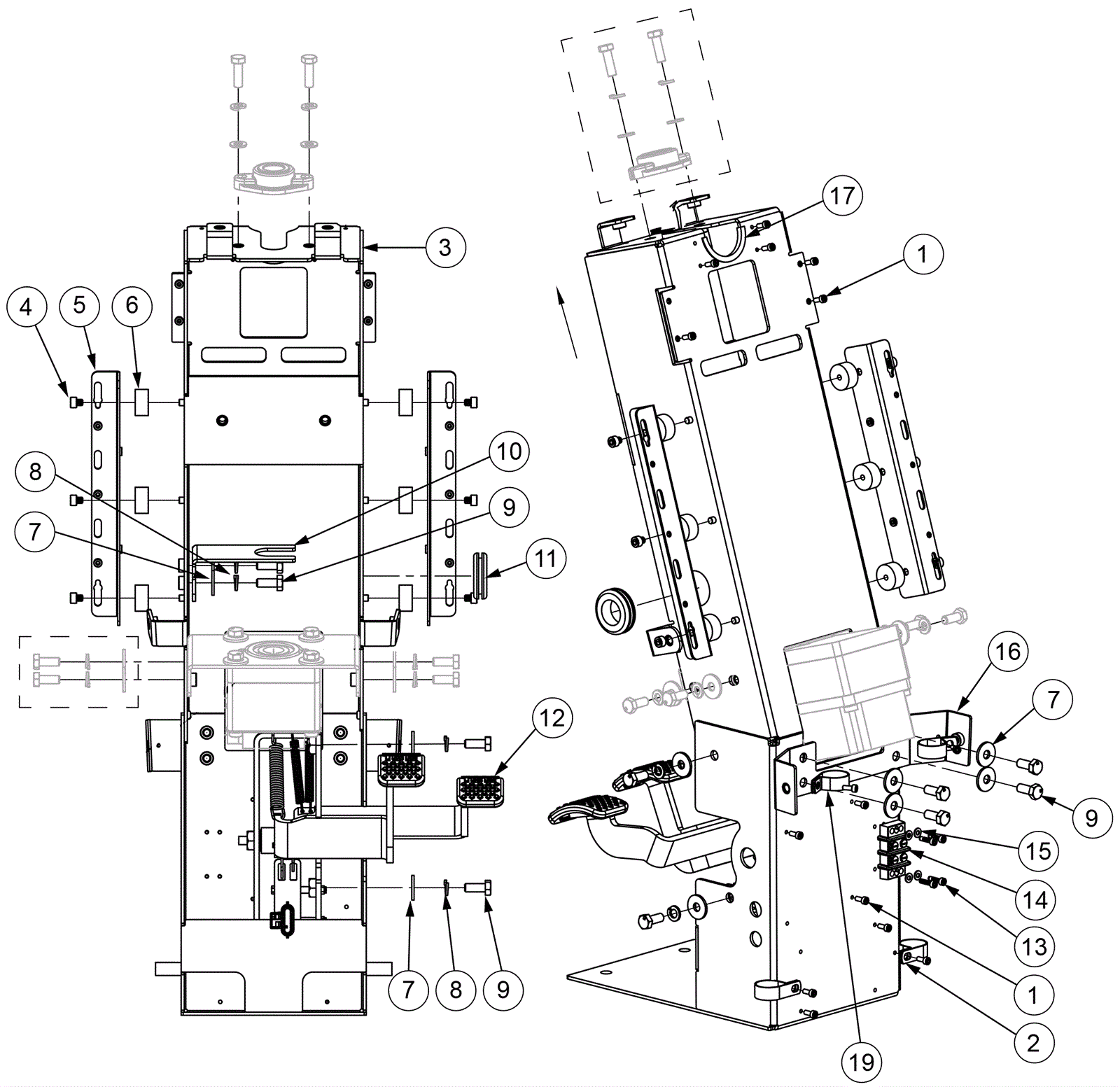

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-9162
|
Screw M4-.7 x 10mm socket cap stainless steel |
15 |
|
|
2 |
278-0323
|
P clamp |
3 |
|
|
3 |
288-0110
|
Main support bracket |
1 |
|
|
4 |
999-9165
|
Screw M6-1.0 x 6mm socket cap |
6 |
|
|
5 |
288-0108
|
Brain control module bracket |
2 |
|
|
6 |
288-0107
|
Damping mount (rubber) |
6 |
|
|
7 |
999-6695
|
Washer M8 fender stainless steel |
16 |
|
|
8 |
999-0674
|
Washer M8 split lock plain finish |
4 |
|
|
9 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
8 |
|
|
10 |
288-0106
|
Shaft collar flange |
1 |
|
|
11 |
278-0327
|
Rubber grommet |
1 |
|
|
12 |
278-0564
|
Accelerator and brake pedal |
1 |
|
|
13 |
999-1660
|
Screw M4-.7 x 16mm socket head stainless steel |
4 |
|
|
14 |
288-0104
|
Barrier block |
1 |
|
|
15 |
999-9089
|
Washer M4 flat stainless steel |
4 |
|
|
16 |
288-0103
|
Belly bracket |
1 |
|
|
17 |
288-0102
|
Main tower edge trim |
1 |
|
|
19 |
278-1865
|
1 1/2 inch cable clamp |
1 |
|
|
