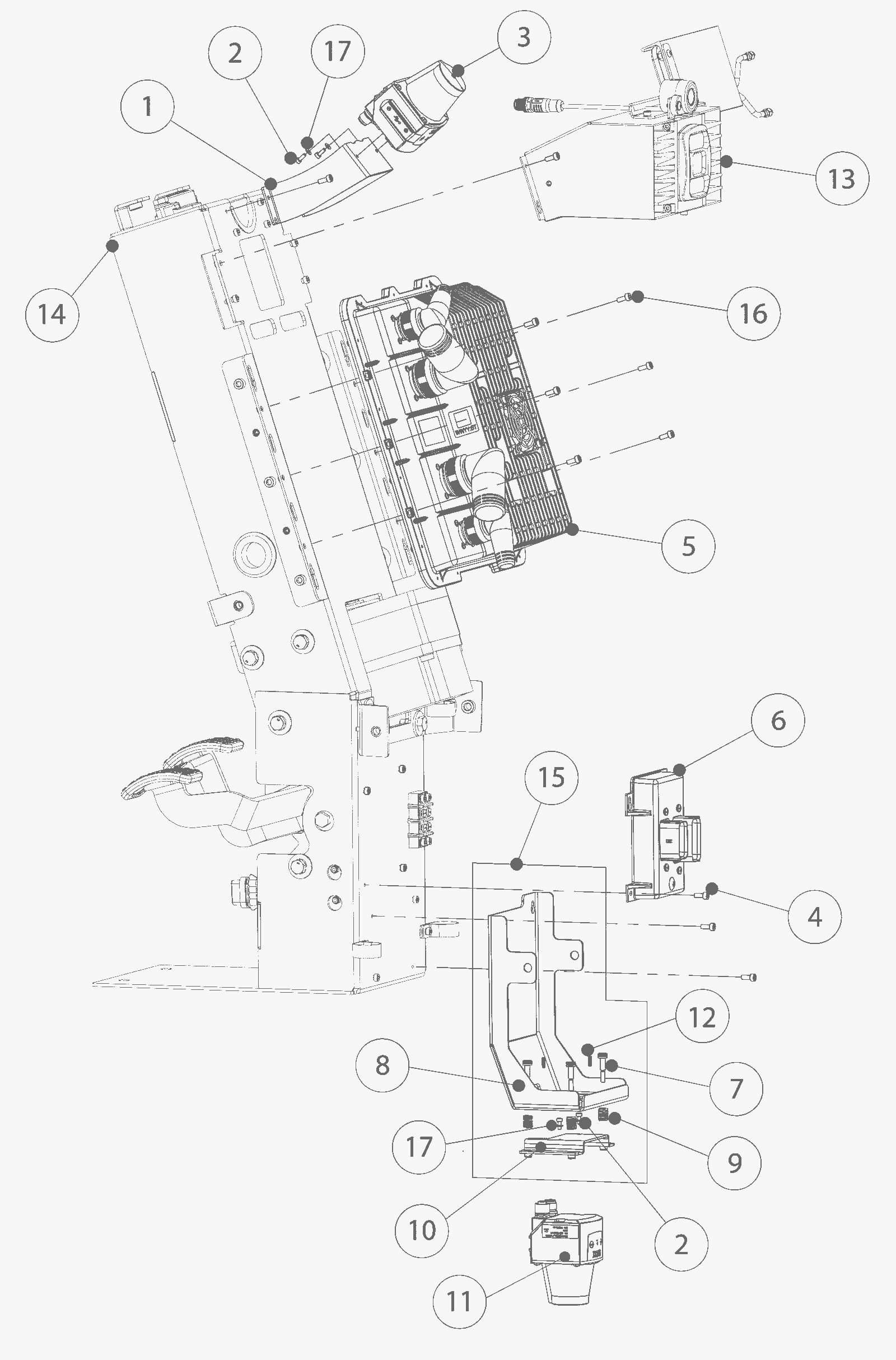

Steering Housing Assembly

#PartDescription ReqNotesAvailability
1 288-0115 Slanted LIDAR bracket 1
2 999-6701 Screw M3-.5 x 8mm hex socket set 4
3 288-0170 Slanted LIDAR 1
4 999-9162 Screw M4-.7 x 10mm socket cap stainless steel 5
5 288-0112 Brain control module 1
6 288-0038 Motor amplifier module V2 1
7 288-0039 LIDAR adjustment shoulder bolt 3
8 288-0040 Planar LIDAR bracket V2 1
9 288-0111 LIDAR spring 3
10 288-0041 LIDAR adjustment bracket V2 1
11 288-0042 Planar LIDAR (OBSOLETE) 1 (new lidar connections swivel see video)
12 999-9163 Screw M3-.5 x 10mm socket set 2
13 999-1660 Screw M4-.7 x 16mm socket head stainless steel 4
14 288-0104 Barrier block 1
15 288-0044 Lower LIDAR mount assembly 1 (includes 2, 7-10, 12 and 17)
16 999-9164 Screw M4-.7 x 12mm socket cap 6
17 288-0173 Washer M3 belleville spring lock 18-8 4 (as needed)
