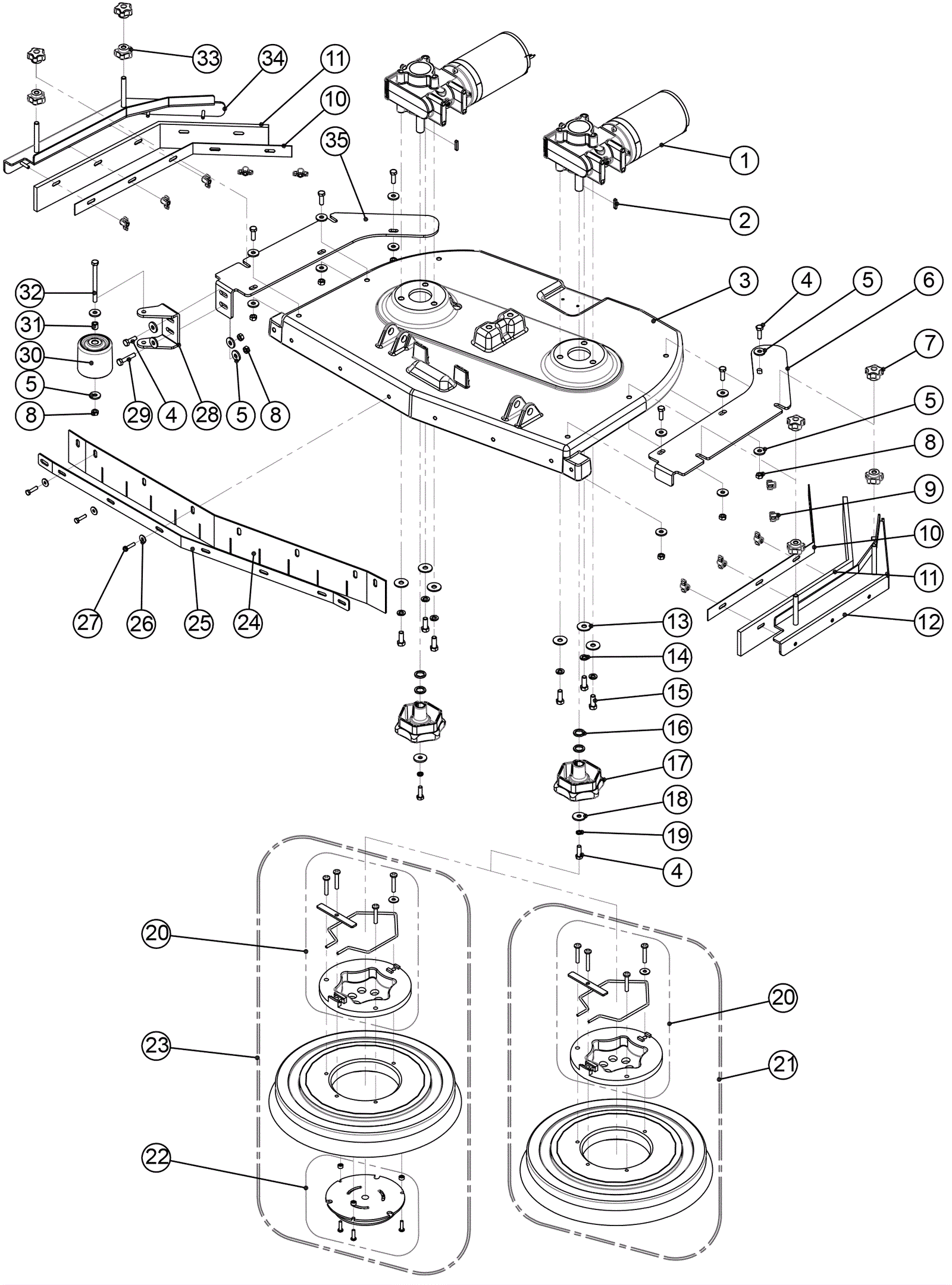

Scrub Head Assembly

#PartDescription ReqNotesAvailability
1a 278-0589 24V 450W brush motor 2 (OEM)
1b 991-1316 24V 450W brush motor 2 (NON-OEM)
2 278-0249 Square keyway 2
3 288-0116 Scrub head housing 1
4 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 9
5 999-6695 Washer M8 fender stainless steel 18
6 278-0466 Left hand bracket 1
7 278-0467 Knob 4
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel 9
9 278-0468 Knob 10
10 278-0469 Side skirt clamp 2
11 278-0004 Side skirt blade linatex 2
12 278-0470 Left hand side skirt bracket 1
13 999-9099 Washer M10 flat stainless steel 6
14 999-1482 Nut 3/8-16 nylon lock stainless steel 6
15 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 6
16 278-0472 Spacer 4
17 278-0473 Brush drive hub 2
18 999-6695 Washer M8 fender stainless steel 2
19 999-0674 Washer M8 split lock plain finish 2
20 278-0474 Clutch plate 2
21a 278-0630 13 inch soft white brush 2 (includes 20)
21b 278-0475 13 inch polypropylene brush 2 (includes 20)
21c 278-1849 13 inch aggressive brush 2 (includes 20)
22 278-0202 Center lok 2
23 278-0477 13 inch pad driver 2 (includes 20 and 22)
24 278-0479 26 inch skirt 1
25 278-0481 Skirt clamp 1
26 999-1803 Washer M6 flat fender stainless steel 7
27 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 7
28 278-1850 Protective wheel bracket 1
29 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 1
30 278-0484 Protective wheel 1
31 278-0033 Spacer 6
32 999-9159 Bolt M8-1.0 x 100mm hex cap 1
33 278-0591 Knob 4
34 278-0486 Right hand side skirt bracket 1
35 278-0487 Right hand bracket 1
N/S 278-1190 Terminal block 1 (brush motor wiring harness)
N/S 278-1191 Female terminal pin 1 (brush motor wiring harness)
N/S 278-1192 Terminal 1 (brush motor wiring harness)
N/S 278-1193 Connector clip 1 (brush motor wiring harness)
N/S 278-1194 Grommet (blue) 1 (brush motor wiring harness)
N/S 278-1195 Terminal 1 (brush motor wiring harness)
N/S 278-1382 Connector housing 1 (brush motor wiring harness)
