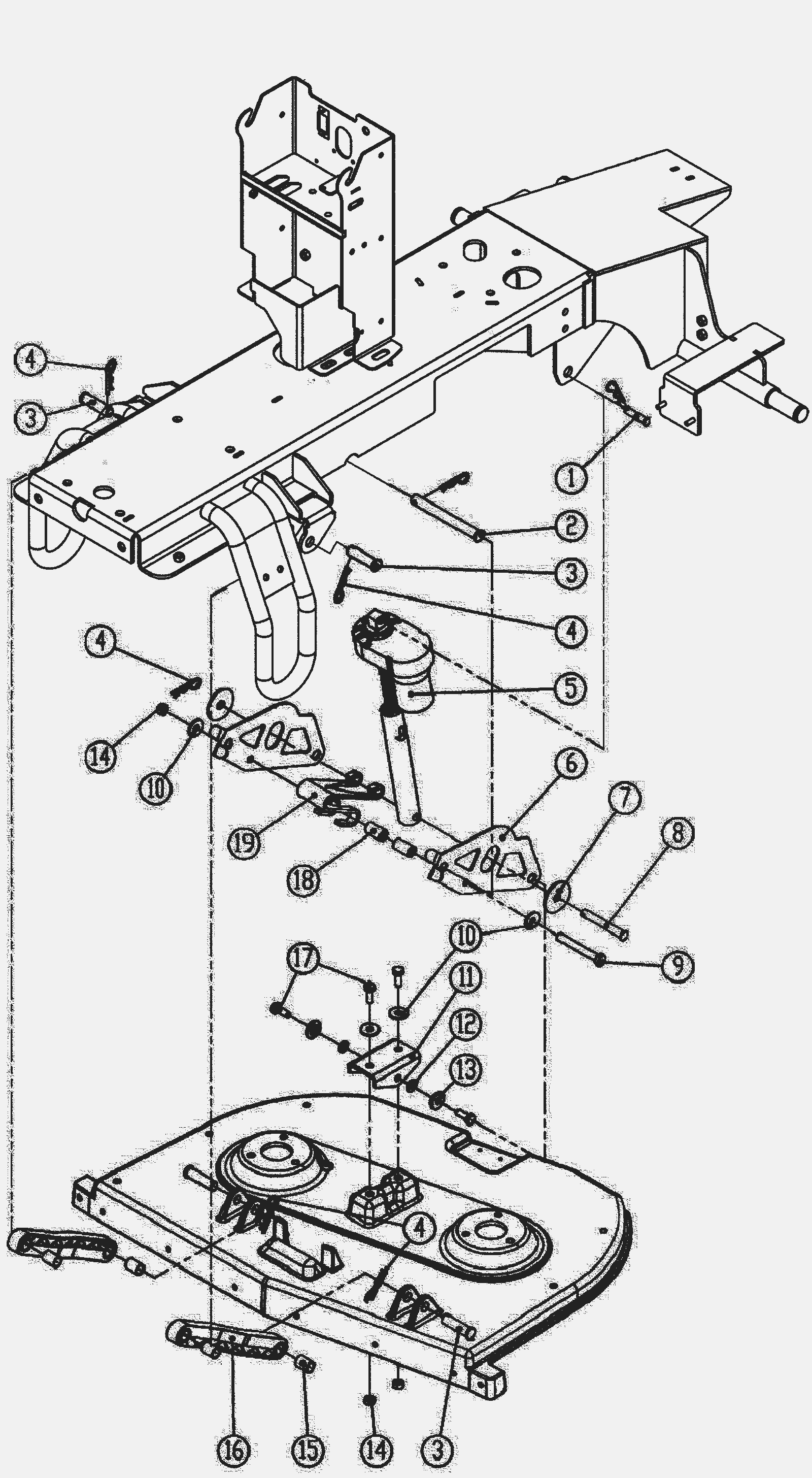

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
278-0448
|
Pin |
1 |
|
|
2 |
278-0449
|
Pin |
1 |
|
|
3 |
278-0450
|
Pin |
4 |
|
|
4 |
278-0451
|
Cotter pin |
7 |
|
|
5 |
278-0588
|
Actuator |
1 |
|
|
6 |
278-0453
|
Scrub head lifting arm plate |
2 |
|
|
7 |
278-0454
|
Washer |
2 |
|
|
8 |
278-0455
|
Pin |
1 |
|
|
9 |
999-1408
|
Screw M10-1.5 x 90mm hex head stainless steel |
1 |
|
|
10 |
999-6713
|
Washer M10 x 30mm flat stainless steel |
4 |
|
|
11 |
278-0457
|
Scrub head lifting bracket |
1 |
|
|
12 |
999-9099
|
Washer M10 flat stainless steel |
2 |
|
|
13 |
278-0459
|
Flange bushing |
2 |
|
|
14 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
3 |
|
|
15 |
278-0008
|
Sleeve |
4 |
|
|
16 |
278-0460
|
Scrub head lifting arm |
2 |
|
|
17 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
4 |
|
|
18 |
278-0461
|
Sleeve |
2 |
|
|
19 |
278-0462
|
Spring |
1 |
|
|
