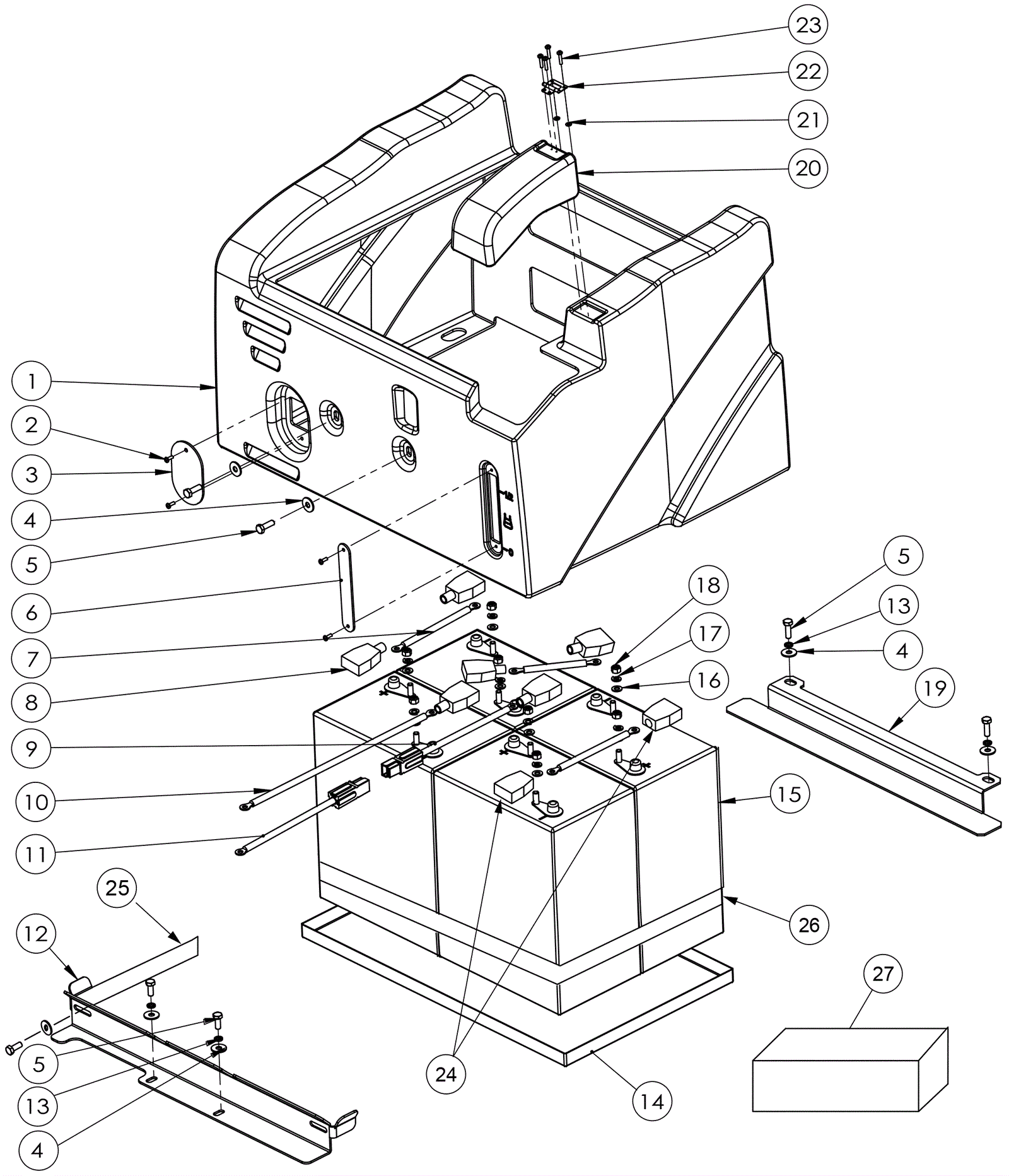

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
278-0433
|
Battery box |
1 |
|
|
2 |
999-1645
|
Screw M4-.7 x 12mm hex head stainless steel |
4 |
|
|
3 |
278-0444
|
Cover |
1 |
|
|
4 |
999-6695
|
Washer M8 fender stainless steel |
7 |
|
|
5 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
7 |
|
|
6 |
278-0443
|
Cover |
1 |
|
|
7a |
288-0122
|
4AWG battery connect cable (black) |
3 |
|
|
7b |
278-0442
|
6AWG jumper cable (black) |
3 |
|
|
8 |
288-0031
|
Terminal covers (black) |
6 |
|
|
9a |
288-0121
|
4AWG battery connect cable (red) |
1 |
|
|
9b |
278-0555
|
6AWG battery connection cable (red) |
1 |
|
|
10a |
288-0120
|
4AWG 584mm battery connect cable (black) |
1 |
|
|
10b |
278-0441
|
6AWG battery connection cable (black) |
1 |
|
|
11a |
288-0119
|
4AWG 410mm battery connect cable (red) |
1 |
|
|
11b |
278-0554
|
6AWG battery connection cable (red) |
1 |
|
|
12 |
278-0438
|
Front battery support |
1 |
|
|
13 |
999-0674
|
Washer M8 split lock plain finish |
4 |
|
|
14 |
278-0436
|
Battery tray |
1 |
|
|
15b |
162-0046
|
6V 335Ah AGM battery (Group J305) (SNSR) |
4 |
|
|
16 |
999-9097
|
Washer M8 flat stainless steel |
8 |
|
|
17 |
999-0674
|
Washer M8 split lock plain finish |
8 |
|
|
18 |
999-1424
|
Nut M8-1.25 hex stainless steel |
8 |
|
|
19 |
278-0434
|
Rear battery support |
1 |
|
|
20 |
278-0447
|
Cover |
1 |
|
|
21 |
999-9089
|
Washer M4 flat stainless steel |
4 |
|
|
22 |
278-0446
|
Hinge assembly |
1 |
|
|
23 |
288-0118
|
Rivet 4 x 16 (OBSOLETE) |
4 |
|
|
24 |
288-0035
|
Battery terminal cover |
2 |
|
|
25 |
278-0437
|
Plate |
1 |
|
|
26 |
288-0117
|
Battery belt |
1 |
|
|
27 |
278-0072
|
Battery spacer |
1 |
|
|
